118
SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide Switch Configuration
Protocol Filters...
Displays the Protocol Filters menu.

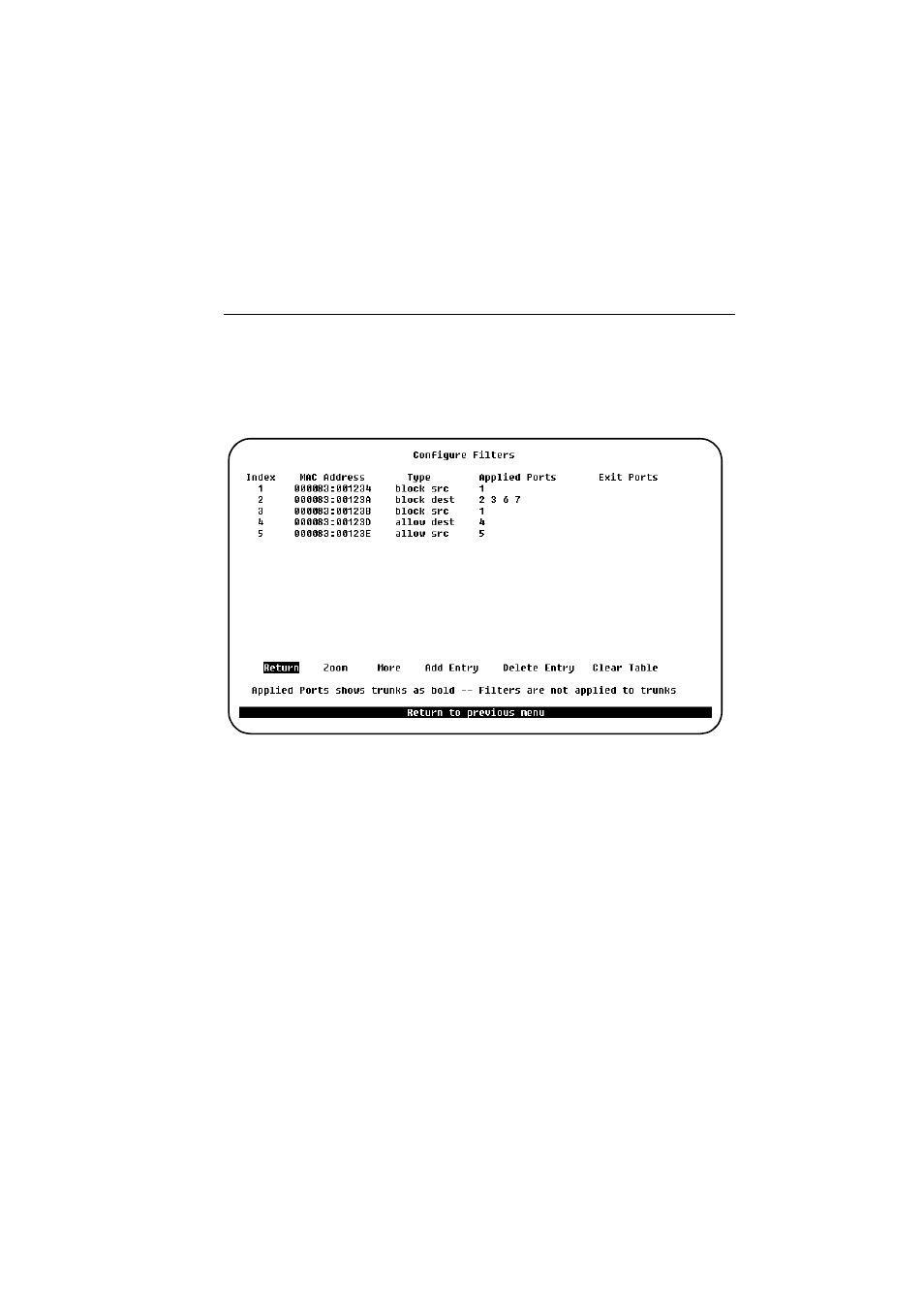

Configure Filters Screen
To open this screen from the main menu, select Configuration
→ → → →
Filters & Port
Security . Then select Configure Filters. When the Add Entry item is selected, a
list is displayed of the available filter functions with a selectable highlight. After a
choice is made, the console prompts you for the necessary parameters.
Index
The number index.
MAC Address
MAC address contained in packets to be filtered. See a detailed description of MAC
addresses on page 81.
Type
Possible types:
•
Block any packet with source address—Block Src
— That is, any packet from that specific address is blocked from entering the
specified port(s).
•
Block any packet with destination address—Block Dest
