196
SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide Monitoring the Network from the Console Statistics Menu

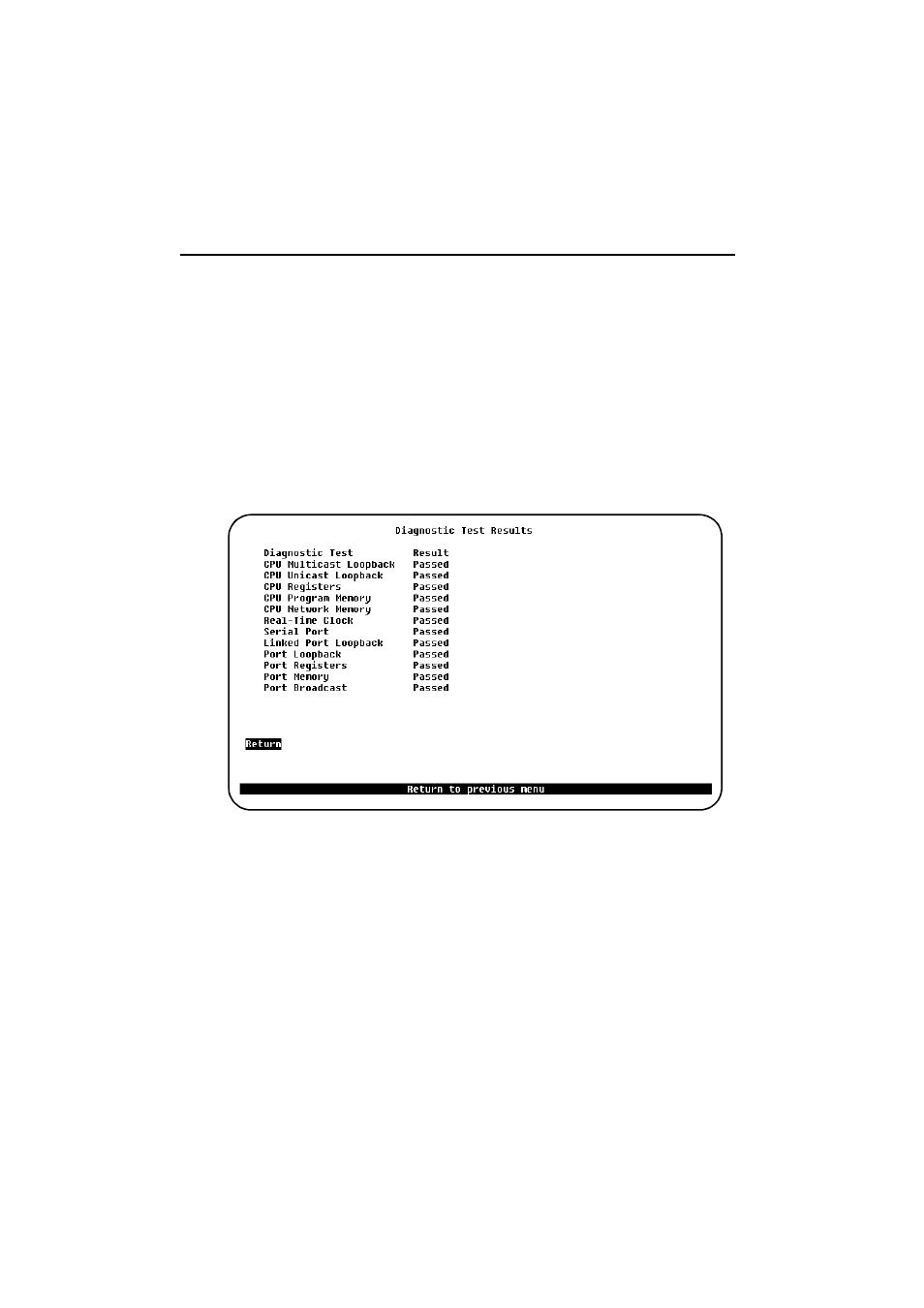

Diagnostic Test Results Screen
To open this screen from the main menu, select Statistics
→ → → →
Diagnostic Test
Results. ( If a prompt appears, enter the box number you want to view).
The Diagnostic Test Results screen is a list showing whether errors or a specific
diagnostic test has failed at a specified box (switch).
The data that is shown on this screen is for monitoring information only, and is
meant for network personnel experienced with this type of information. The
explanation of this information is extensive and outside the scope of this guide.
However, the instructions on how to access this information is provided so that the
user can view the data to provide information for problem solving. If this menu is
reporting errors and you can not find a cause, contact your local place of purchase.
