SmartStack STS16-20D/STS16-20R Token Ring Switches Installation and User Guide Switch Configuration

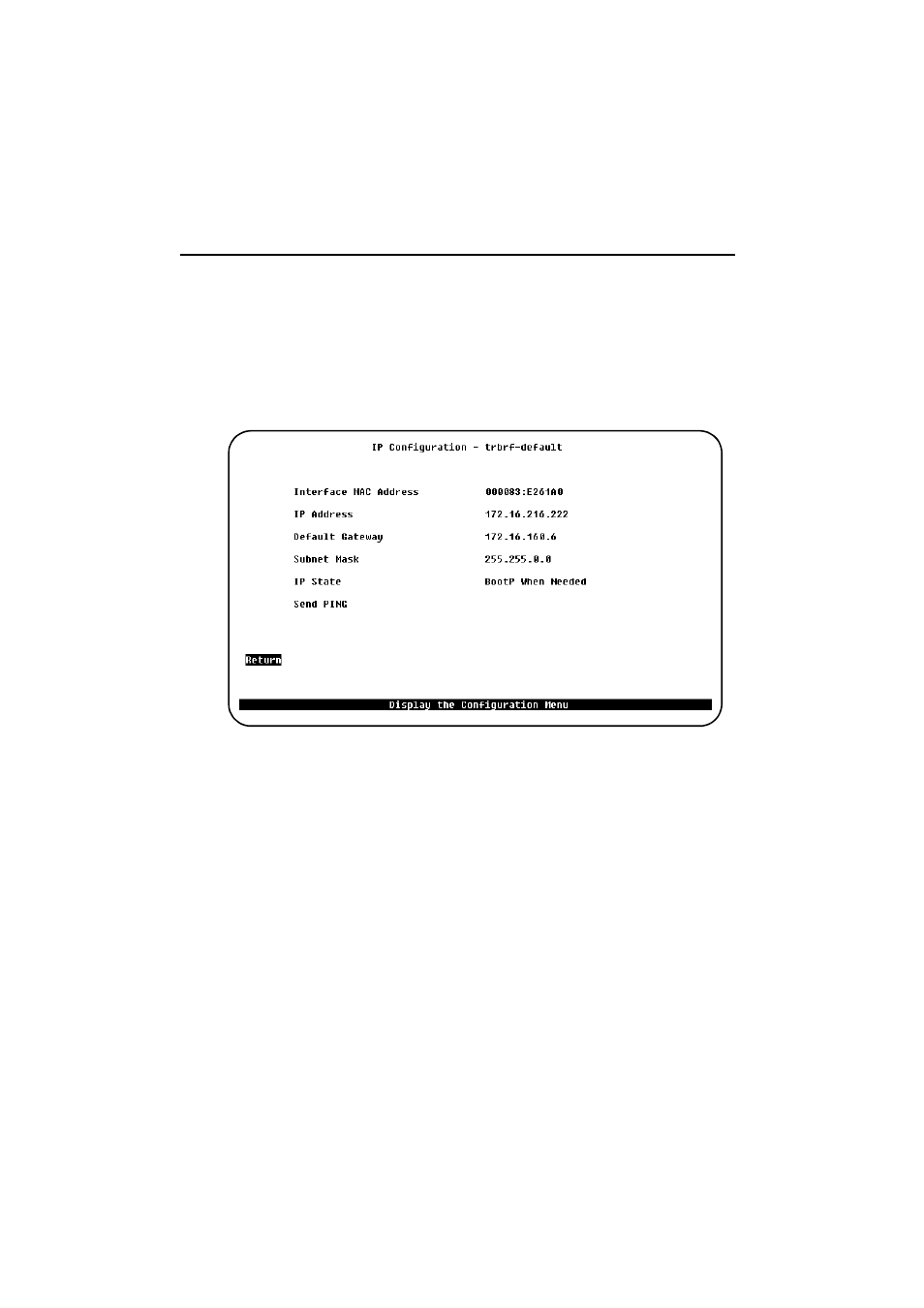

IP Configuration Screen
To open this screen from the main menu, select Configuration
→ → → →
IP
Configuration. Then select the BRF to display the screen. This screen is used to
view or change IP information associated with a BRF, such as the IP address,
subnet mask, or IP state, or to send PINGs.
Note! Ports must be assigned to a CRF that is a sibling of the selected BRF before
IP assignment.
Interface MAC Address
Displays the MAC address assigned to this BRF.
IP Address
Used to configure the IP address of the switch in the selected VLAN (BRF). To
change it, highlight the field and press
ENTER .
Default: 192.0.2.1
Default Gateway
Used to configure the default gateway. When sending IP packets from this VLAN
to other IP networks, the packets are sent to the default gateway. This is why it must
be on the same IP net as the IP address.
Default: 0.0.0.0
Subnet Mask
Changes the current subnet mask. If none is specified, the net mask used is the
