SmartSwitch Router User Reference Manual 237
Chapter 15: Web Hosting Configuration Guide
Displaying Load Balancing Information
To display load balancing information, enter the following commands in Enable mode.
Configuration Examples
This section shows examples of load balancing configurations.

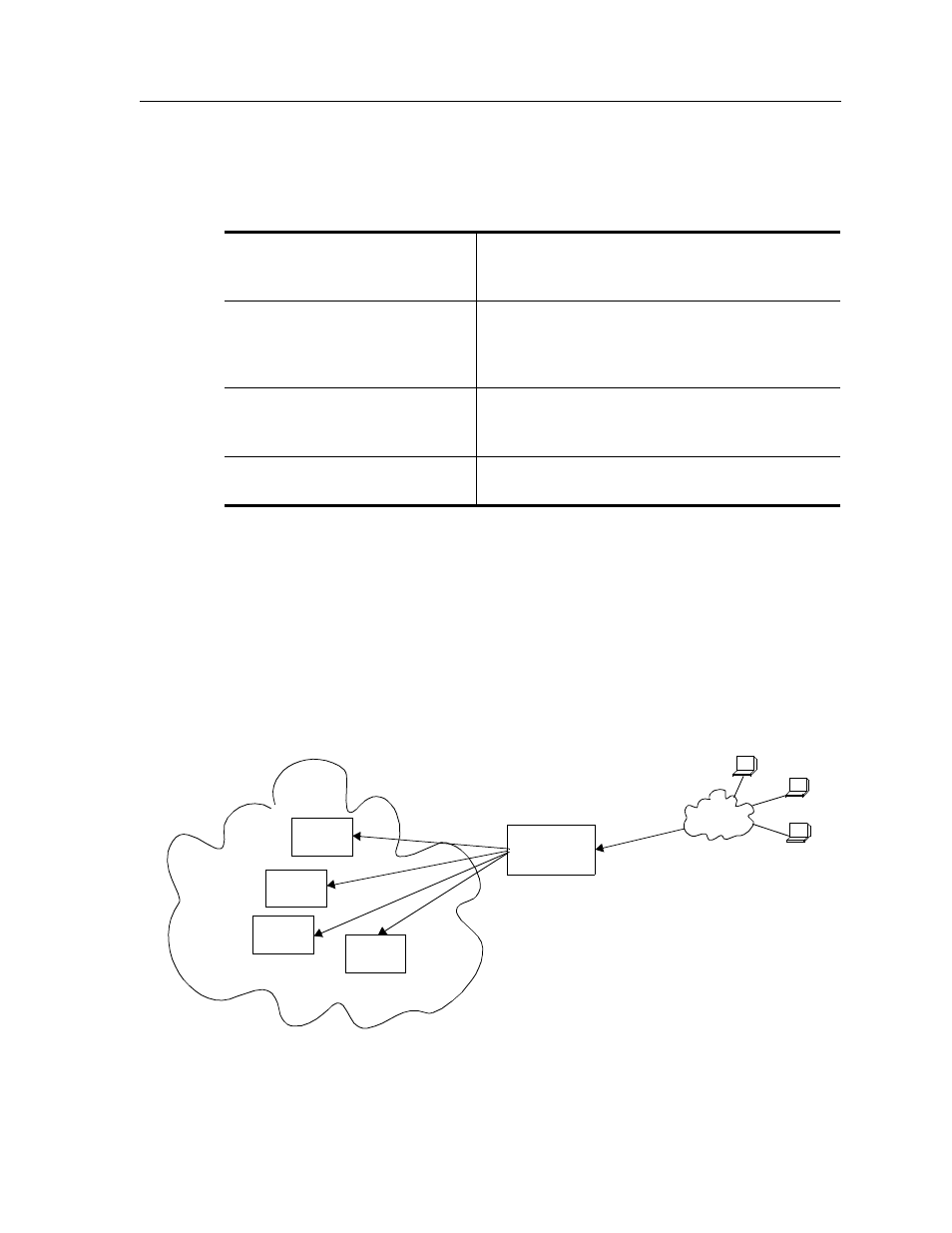

Web Hosting with One Virtual Group and Multiple Destination Servers
In the following example, a company web site is established with a URL of
www.ctron.com. The system administrator configures the networks so that the SSR
forwards web requests among four separate servers, as shown below.
Show the groups of load
balancing servers. load-balance show virtual-hosts group-
name virtual-ip
virtual-port
Show source-destination
bindings. load-balance show source-mappings client-
ip virtual-ip
virtual-port destination-
host-ip
Show load balancing statistics. load-balance show statistics group-name
virtual-ip
virtual-port
Show load balance hash table
statistics. load-balance show hash-stats
Router
Internet
10.1.1.1
10.1.1.2
10.1.1.3
10.1.1.4
www.ctron.com
Web requests
to www.ctron.com
Virtual IP Address:
207.135.89.16
Web requests
forwarded to
one of the servers
