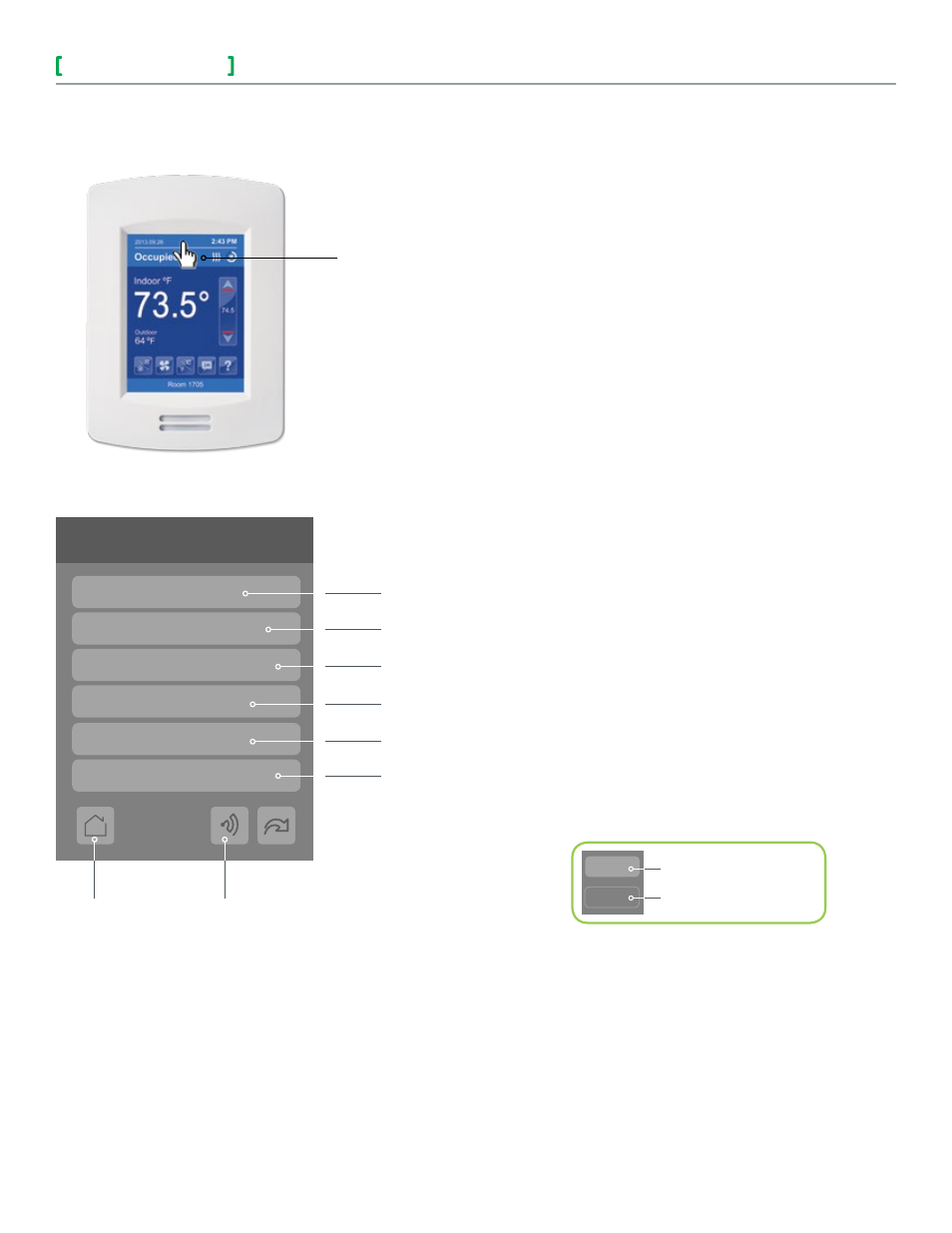

Enter Set-up Screen
Touch and hold this point
for 3 seconds to enter setup mode
Note: If a configuration/installer password is
activated to prevent unauthorised access to the
configuration menu parameters, a password
entry prompt shows to prevent access to device
configuration components.
SET-UP SCREEN DISPLAY 1/2
Return to
home screen
1/2 Setup
Network
Configuration
Setpoints - Display
Service view
Test outputs
Language selection
Discover Mode The Controller
becomes discoverable on the wireless
ZigBee
® network for 1 minute (this
button is hidden if ZigBee ® settings are
not configured)
Enter BACnet ® & ZigBee ® network settings (only if ZigBee is detected)
Enter parameter configuration menu
Enter setpoint and display settings
Enter output testing mode
Enter status and service view
Note: The following menus show according to context:
- ZigBee menu shows if ZigBee card detected.
- Network choice inside does not show if no network is available
Enter language selection
General Note:
Adjustable parameter
Non-adjustable parameter
