Add new Relay (Reset Relay) Continued..
2) To program a New Relay, Reset a Relay or Save new Wheel Layouts to
a Relay, firstly make sure the Display shows the correct Relay Location.
Use the Mute Button to select between Truck Head Relay (A), Trailer 1
Relay (B) or Trailer 2 Relay (C).
If your Type of Vehicle (Wheel Layout) only consists of 1 Relay then you
will only have the option to Program / Reset / Save new settings to the
Truck Head Relay (A). If your Type of vehicle (Wheel Layout) consists of
multiple Relays then you will have the option to Program / Reset / Save
new settings to the Trailer Relay/s too.

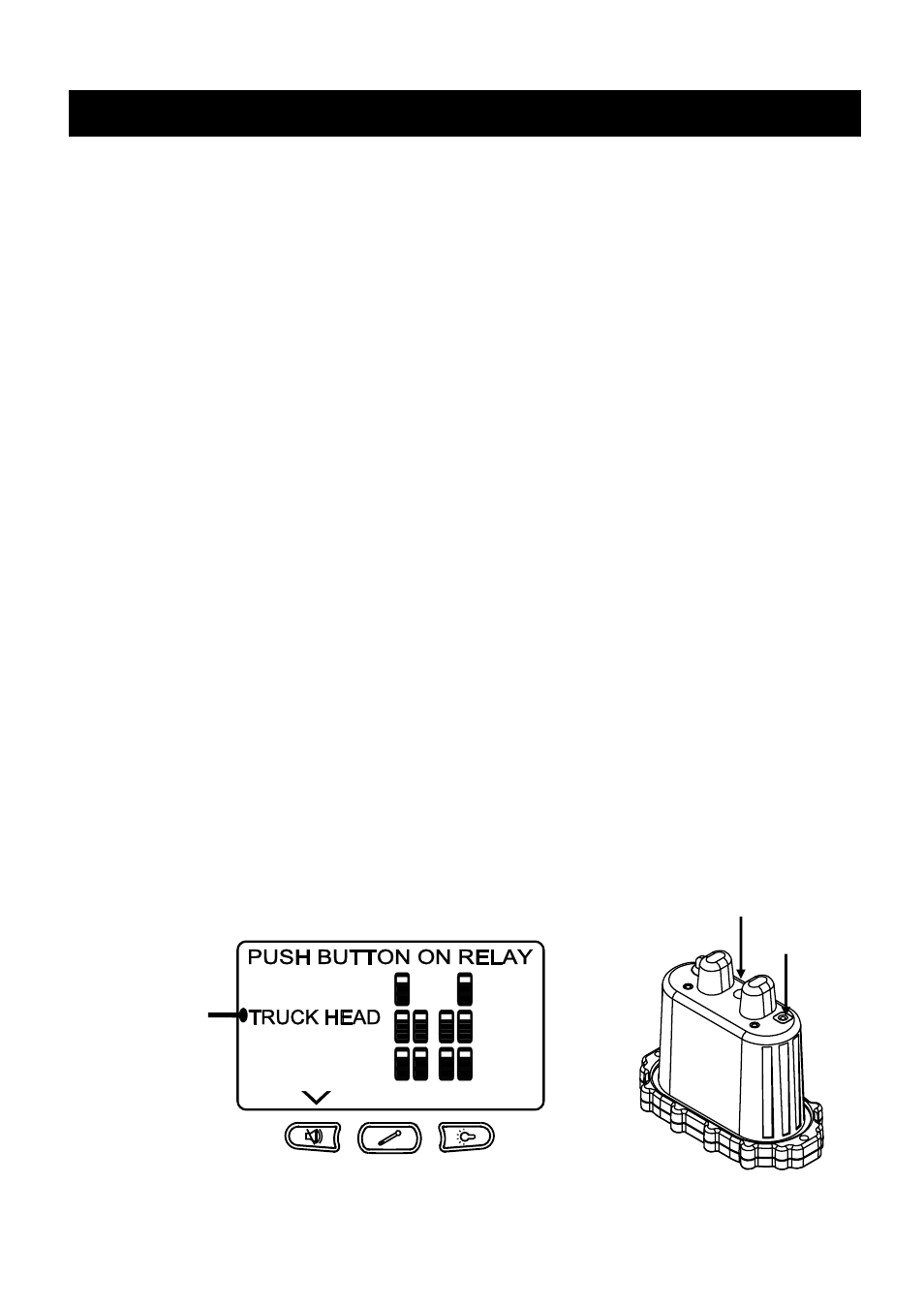

Push
Reset
Button
LED
ESC
Displays
Relay
Location
and your
chosen
Wheel
Layout
3) Once the correct Relay/Location is selected, press the Reset Button on
the corresponding Relay. The LED will light up and the Monitor will beep
to confirm that the Relay has been added, reset or new settings were
saved. Repeat this step for all other relays in your system if required.
(Remember to make sure the Relay Location on the Display matches
the Relay you’re programming before pressing the Reset Button.
If you do program the wrong relay to the wrong location, don’t worry
as you can always go back and re-program it correctly.
4) Once you’ve finished, press the Backlight (ESC) Button to exit menu.
