TD-2300A Series V1.0 11
Getting Started

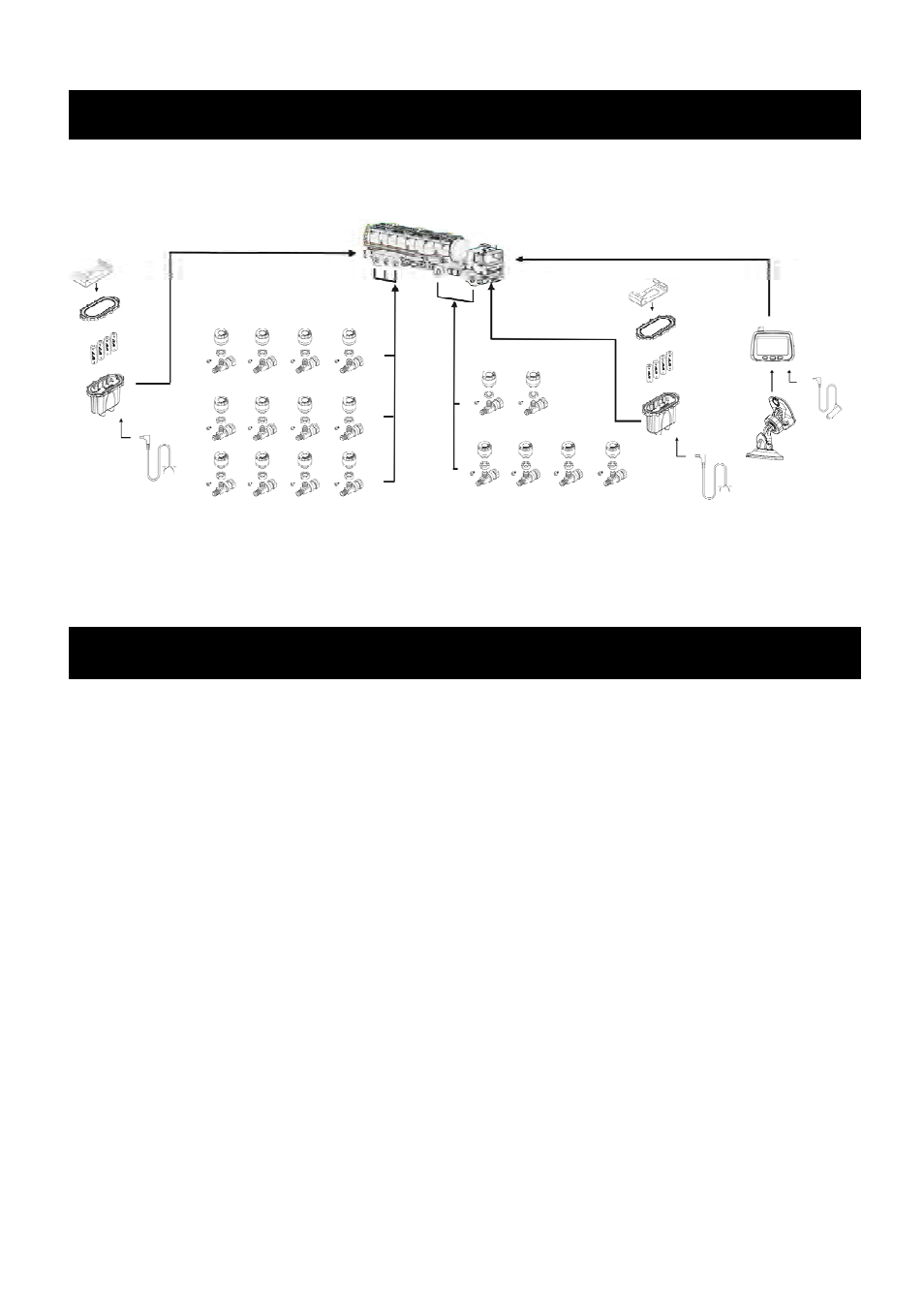

Example Diagram.
Note The 3-way adapter is not included and is for illustrative purposes only.
Installation - RELAY
The relay is the main link between the sensors and the monitor. Without it,
the system will not function. It is recommended the relay be mounted in a
central location with considerably even distance between the furthest forward
and furthest rearward sensors.
It is important to remember that sensors connect to the relay they are
assigned to. If the relay is removed from the vehicle, the system will not
function. This is vital in Truck/Trailer (Car/Trailer) situations when the trailer is
often unhitched from the main vehicle. The relay should be mounted at the
rear of the vehicle in this case to ensure optimum performance.
