TD-2300A Series V1.0 18
Installation - Sensors

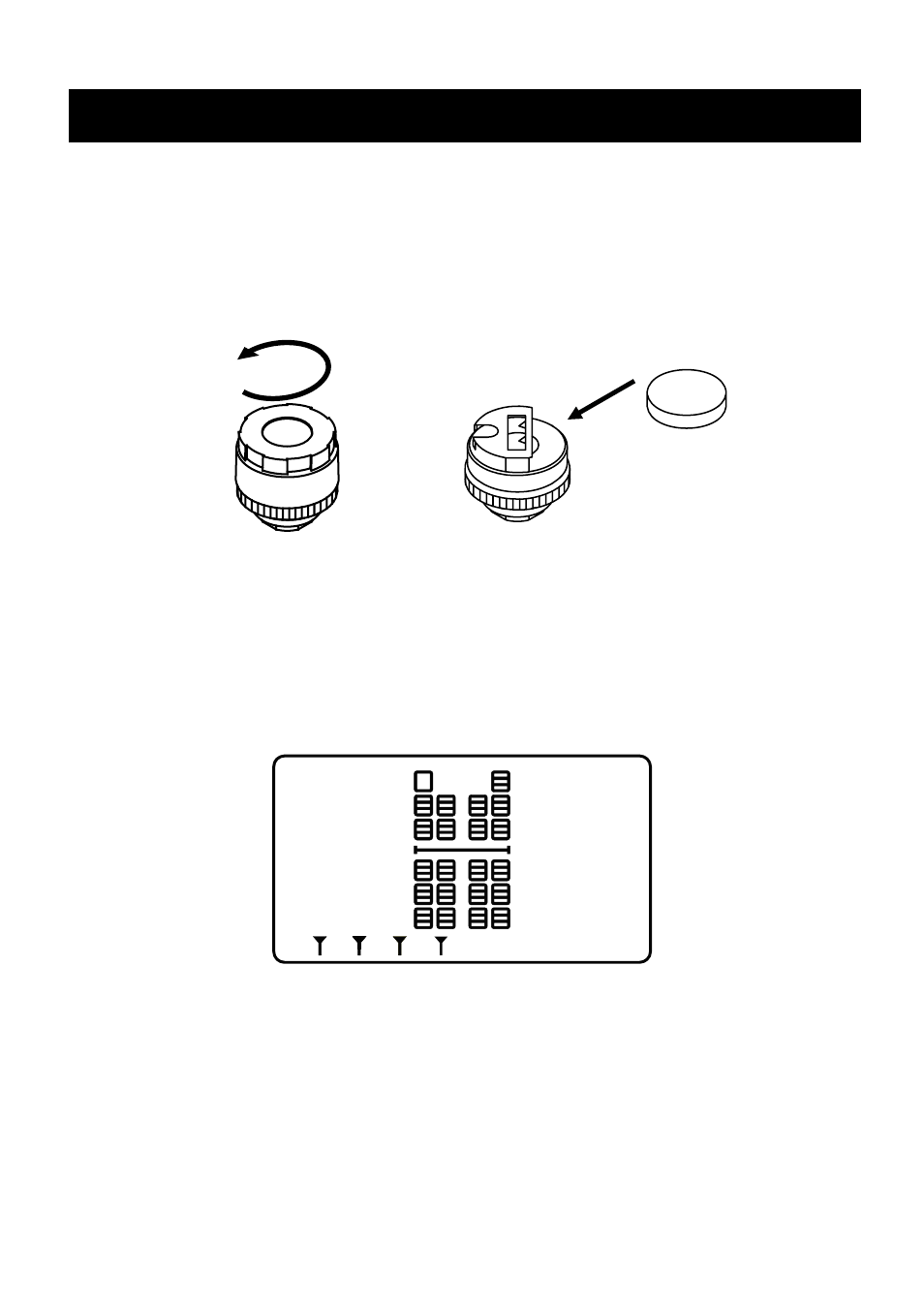

1. Remove the Sensor Cap by rotating the cap anti-clockwise then insert
the 3V Lithium Battery (CR1632) like shown below.
Note: Positive (+) of battery should be facing up.
If the Monitor and Relay are both powered up, as soon as the battery is
inserted into the sensor, you will hear the monitor beep and you’ll see the
sensor come online. It will also be flashing ‘P.L’ and ‘0’. This indicates the
Pressure is Low and it’s reading ‘0’ PSI as the sensor has not been fitted to
a Tyre.
CR1632
Lithium 3V
+
PSI
A
0 0
P.L 0
B H
00
00
0
0
00
0
00
00
0
0
00
0
C
2. Once the Sensor comes onlline, re-fit the sensor cap ensuring it’s nice
and tight so no water will get in. (Don’t use extreme force though as you
don’t want to break or crack the cap)
3. Repeat Steps 1 & 2 with the rest of the sensors ensuring you don’t mix
the sensors and caps up. These are identified with a marking ‘1 to 12’.
(1)
1
