TD-2300A Series V1.0 13
-
(White)
+
(Red)
Installation - RELAY Continued..
HARDWIRED (12V/24V)

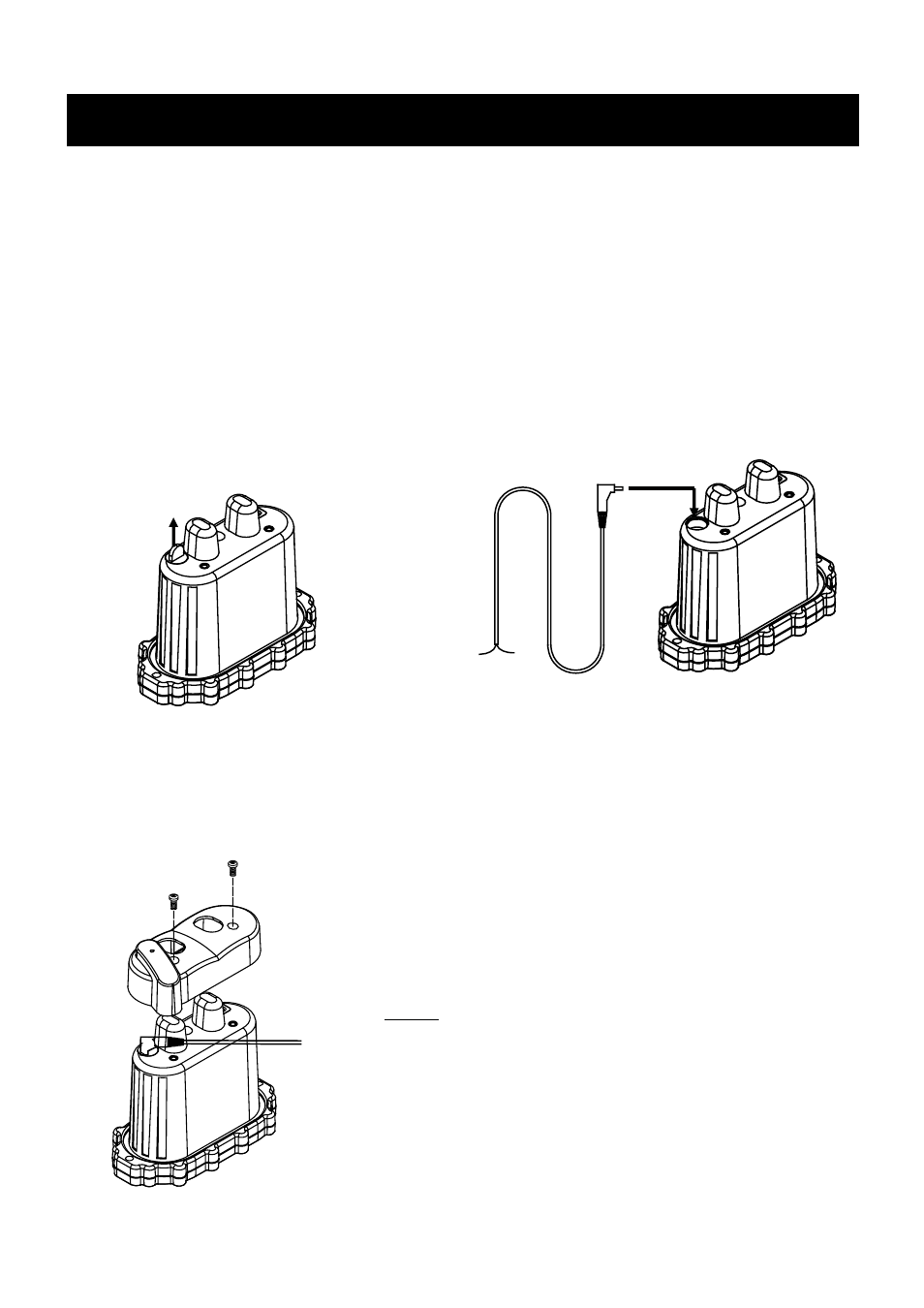

If using the included power cord, remove the DC socket plug at the bottom of
the relay. (If not using the power cord, ensure this socket plug remains fitted
as it seals the Relay from water etc.) When plugging in the DC plug, ensure it
is plugged in firmly so it will not come loose. When inserted correctly, it will be
sealed from water and other elements.
To esnure the relay is protected, we strongly recommend that the Red (+) wire is fused
protected. We Recommend adding an inline 3A fuse.
If the relay is hardwired, please ensure there are no batteries fitted to the Relay.
Remove Plug
When using the power cord, the supplied bottom
cover must be fitted to ensure the D.C. plug does
not come loose.
