TD-2300A Series V1.0 16

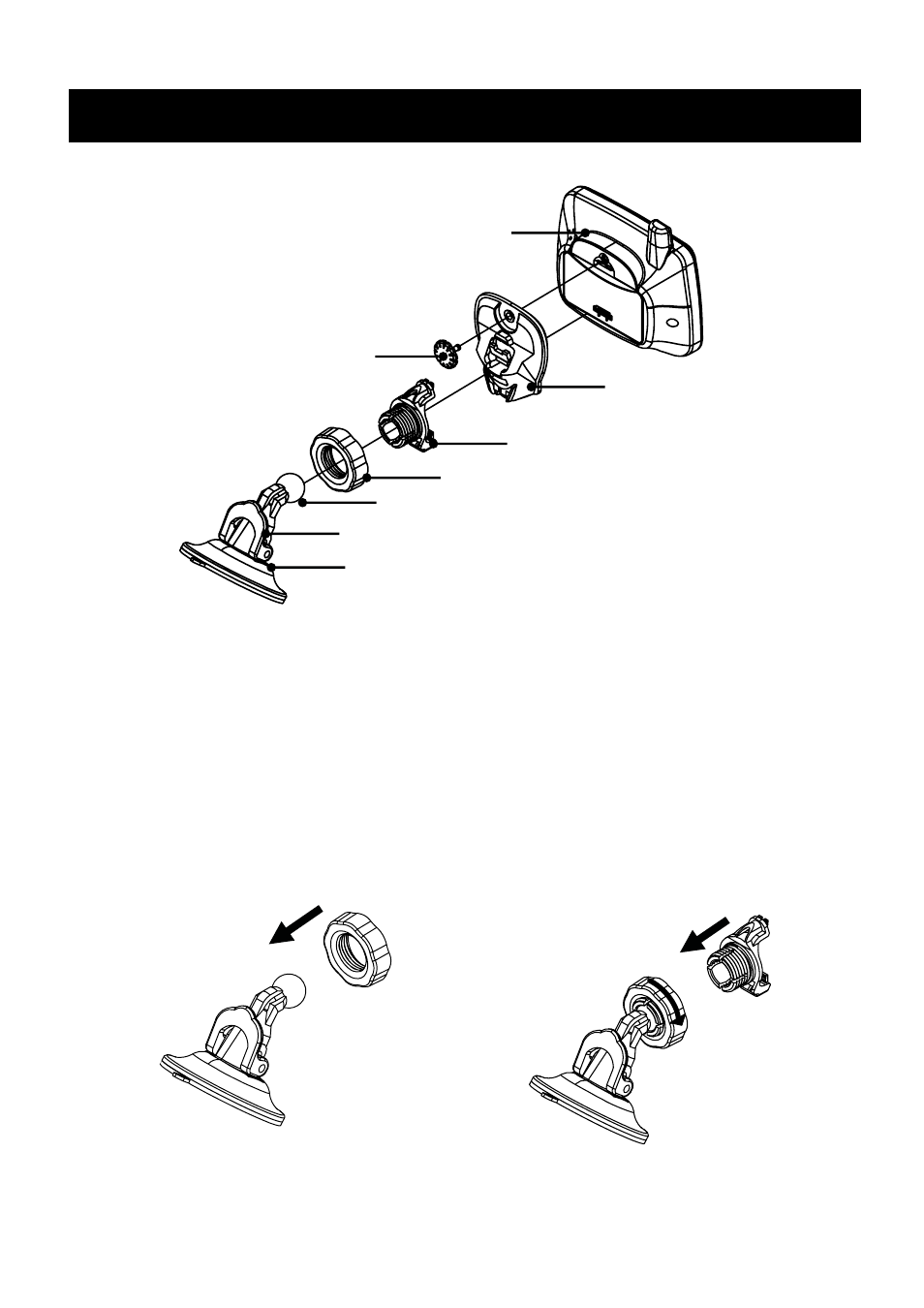

Installation - Monitor / Receiver Bracket
1. Slide the Ball joint ring over the Ball Joint.
2. Insert the Ball Joint into the Bracket Adaptor. Your will here it ‘Pop In’.
3. Screw the Ball Joint Ring onto the Bracket Adaptor until had tight.
Ball Joint Ring
Bracket Adaptor
Monitor Bracket
Bracket Screw
Monitor
Suction Cup
Ball Joint
Suction Cup Lock
