Tuffy Security 157 - Manual (Page 2)

Page 2 of 10 - 01/23/2012 – Rev05192008

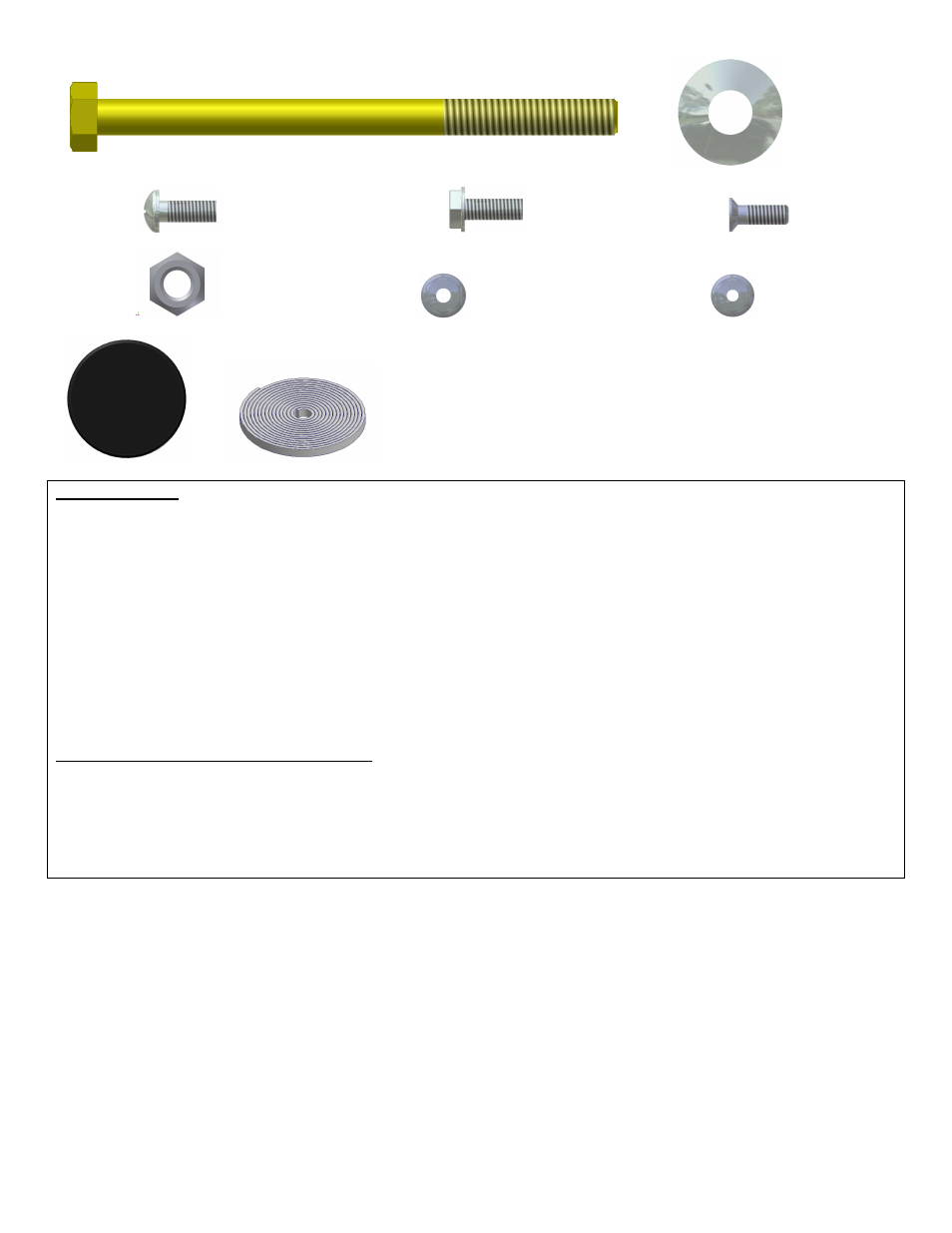

#6.10 - (2) 5/16-18 x 4 1/2” BOLT #6.12 - (4) 5/16” WASHERS
#6.6 – (12) 10-32 X ½” PHILLIPS SCREW #6.4 – (4) 10-32 X ½” SCREW #6.13.2 – (2) 8-32 X ½” FLAT HEAD
#6.11 - (2) 5/16-18 NYLOCK NUTS #6.5 – (9) 10-32 HEXWASHER NUT #6.13.3 – (2) 8-32 HEXWASHER NUT
#6.7 - 1” GROMMET RUBBER SEAL
TOOLS NEEDED
•
18MM Socket and ratchet (To remove seats)
•
13MM Deep well socket, long extension, and ratchet (To remove and fasten emergency brake)
•
T-20 Torx bit or wrench (To remove OEM console)
•
T-30 Torx bit or wrench (To remove OEM console)
•
Flat Head Screwdriver (If OEM console has electric window switches in the rear)
•
Phillips head screw driver (Short)
•
3/8” Nut-driver and/or wrench
•
5/16” Nut-driver and/or wrench
•
11/32” Nut-driver and/or wrench
•
Electrical wire cutting, stripping, and crimping tool (For 12 volt outlet installation)
•
Electrical volt meter (For 12 volt outlet installation)
Tools for optional additional mounting security
•
Electric drill
•
3/8” Drill bit
•
Marker or pencil
•
Silicone sealant (Recommended)
•
½” Socket and ratchet
•
½” Wrench
ATTENTION:
•
THIS CONSOLE WAS DESIGNED FOR A STOCK OEM VEHICLE, ANY MODIFICATIONS
MADE MAY AFFECT THE FIT INCLUDING: CARPET REMOVAL/CHANGES, LIFT KITS,
SEATS, ETC.
•
FREQUENT LUBRICATION IS NECESSARY ON THE LOCKING SYSTEM - The pushbutton lock
contains an “O” ring seal to protect the interior from dust and water. If this mechanism is not lubricated regularly it will
become difficult to operate and it may not return to its home position preventing the key from operating the lock. If this
happens simply pull up on the pushbutton to manually bring it back to its home position. Lubricate the pushbutton
with a light lubricant such as silicone spray. The pushbutton may have to be periodically disassembled and cleaned.
