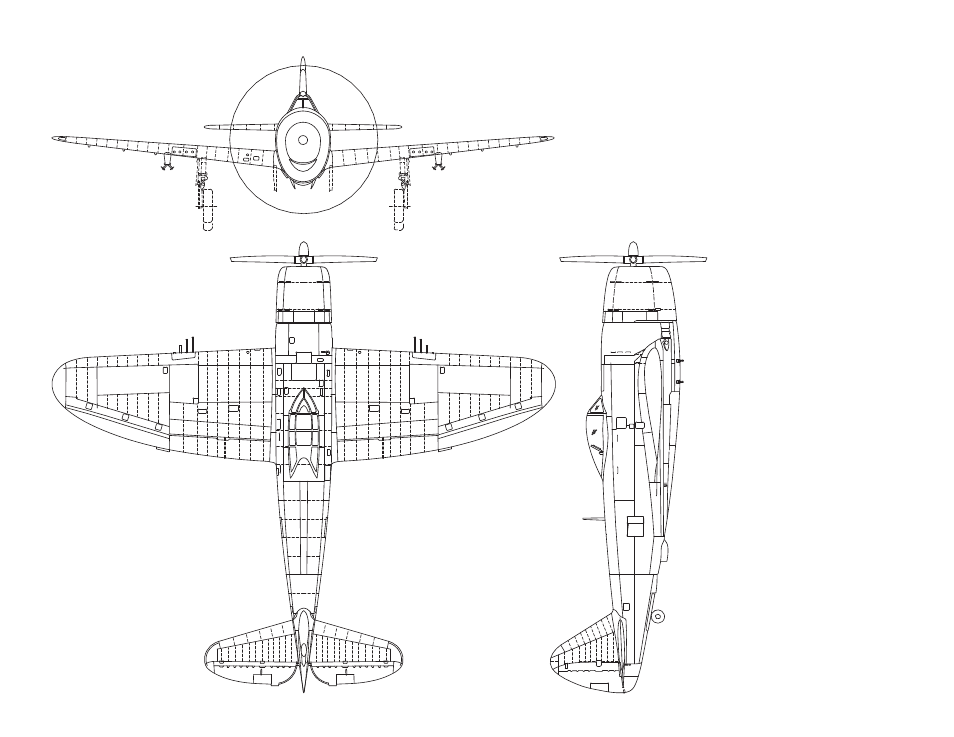

3-VIEW DRAWING
Use this layout for trim
scheme planning only.
Not suitable for scale
documentation.
Here is the Engineering and Performance data for a
P-47-D-25 (similar to the one on our kit box cover):
Model: P-47D-25-RE
Quantity built: 385
AAF Serial numbers: 42-26389 to 42-26773
Engine: Pratt & Whitney R-2800-59
Power rating: 2,000/2,300 hp
Propeller: Hamilton Standard Hydromatic 25E50
13' 1-7/8" dia.
Dimensions:
Span: 40' 9-5/16"
Length: 35' 10"
Height: 14' 9-1/8"
Wing area: 300 sq ft
Weights:
Empty: 10,000 lb
Gross: 14,600 lb
Max: 17,500 lb
Speeds:
Max: 429 mph at 30,000 ft
Landing: 106 mph
Climb:
6.2 min to 15,000 ft
8.5 min to 20,000 ft
11 min to 25,000 ft
Service ceiling: 42,000 ft
Fuel:
Internal: 370 US gal
External: 410 US gal
Range:
Max: 1,030 miles @ 10,000 ft (5.3 hrs)
Normal: 590 miles @ 25,000 ft
Armament: 6 or 8 x 0.50-in mg (fifty caliber
machine gun) with from 267 to 425 rpg
(rounds per gun)
Bombs: 2 x 1,000 lb, Max load 2,500 lb
Printed in USA
