Chapter 2 - Setup 8
area reset

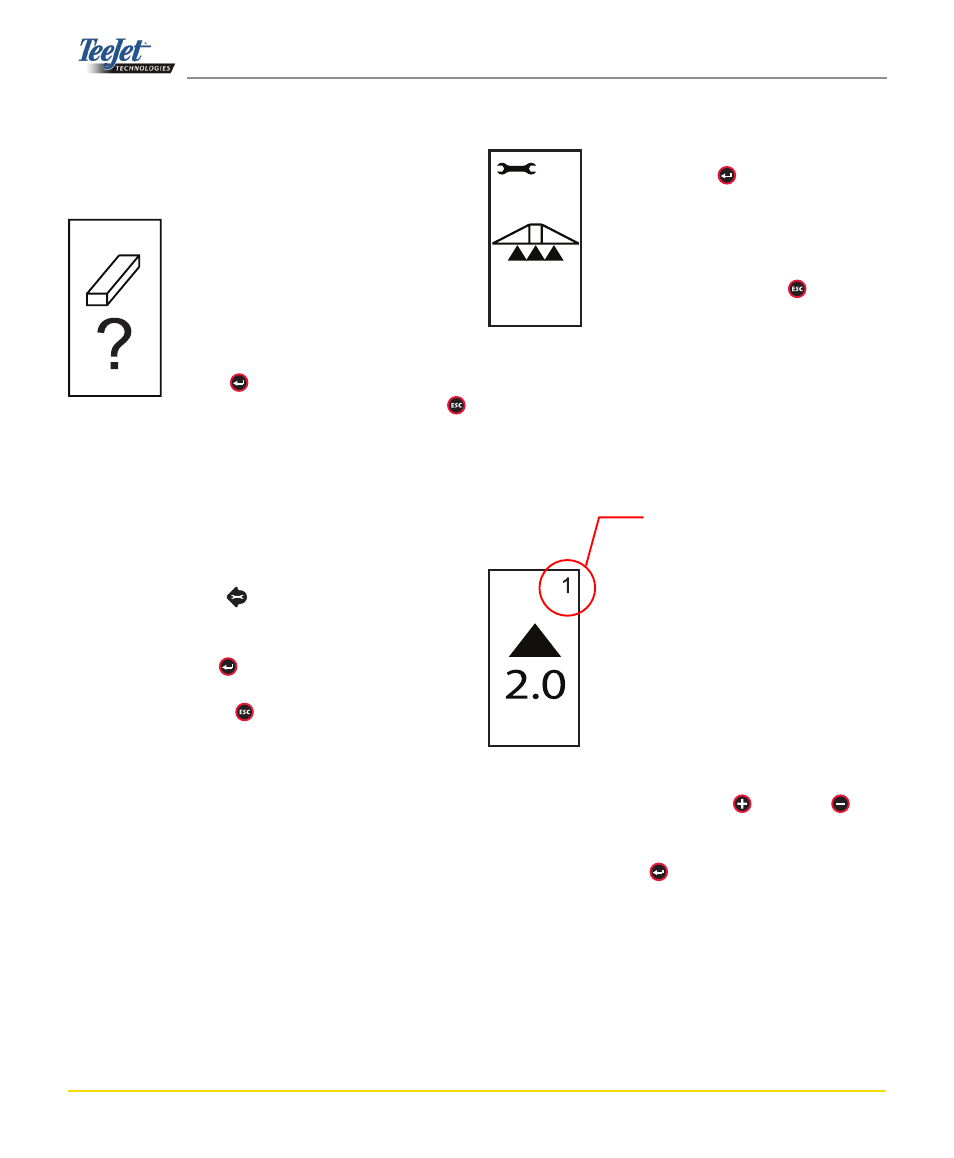

During the CL230BP power up sequence, the Area Reset
window will be displayed:
Area Reset retains existing bounded and
applied areas and A-B guidelines. This
option allows the bounded and applied
areas and guidelines to be reset before
starting on a new field or continuing an
existing field. To reset the bounded and
applied areas and guidelines, press the
Enter key. If the previous application
is being resumed, press the Escape
key to continue to Operation or Setup
mode. This screen is only available upon
CL230BP power up. It cannot be ac-
cessed during normal operation.
setup mode
Press the Setup Mode key to enter into CL230BP Set-
up Mode. The initial CL230BP Setup Mode Screen will be
displayed.
Press the Enter • key to save the setting and ad-
vance the screen.
Press the Escape • key to exit from Setup Mode
without saving any changes.
After 10 seconds of inactivity, Setup Screens will time •
out (changes will be saved). The CL230BP will return
to Operation Mode.
InITIal seTup sCreen
This is the initial CL230BP Setup Screen.
Press the Enter key to advance to the
Delay On screen. Setup screens will
time out after 10 seconds of inactivity
(changes will be saved). After time out,
the screen will go back to Operation
Mode. Press the Escape key to exit
from Setup Mode without saving any
changes.
NOTE: If a SmartCable or SDM is not connected
to the system, Delay On, Delay Off,
Overlap, Number of Boom Sections, and
Boom Section Width screens will not be
displayed.
delaY on
Delay On functions as a “look ahead” for
timing the boom section valves to switch
on exactly when entering an area that
has not been applied. Delay On time
is established in seconds and tenths of
seconds. If the boom turns on too soon
when entering an un-applied area, de-
crease the Delay On setting. If the boom
turns on too late when entering an un-
applied area, increase the Delay On set-
ting. Use the Plus and Minus keys
to adjust the value. The Delay On Time
range is 0.0 - 10.0 seconds. Press the
Enter key to accept the changes and
advance to the Delay Off setting.
NOTE: To increase the time setting (make On or
Off happen sooner), increase Delay On/
Off respectively. To decrease the time
setting (make On or Off happen later),
decrease Delay On/Off respectively.
Setup screens are numbered sequentially
for ease of operation.
