Chapter 3 - Operation 16
bounded area screen
NOTE: If a SmartCable is not connected to the sys-
tem, the console cannot be placed in “Auto”
mode. However, acreage can be bounded.
applied area screen
NOTE: This screen will not be displayed if a Smart-
Cable or SDM is not installed in the sys-
tem.
To reset an existing area counter, while on the Applied
Area Screen, press the Enter key to highlight Applied
Area 1. Press and hold the Minus key for approximately
3 seconds to reset the total in Applied Area 1. If the area
counter was reset by mistake, press the Plus key again
to restore the existing total.
Highlight Applied Area 2 by pressing the Enter key.
Press and hold the Minus key for approximately 3 sec-
onds to reset the total in Applied Area 2. If the area coun-
ter was reset by mistake, press the Plus key again to
restore the existing total. Pressing the Escape key will
deselect the highlighted area.

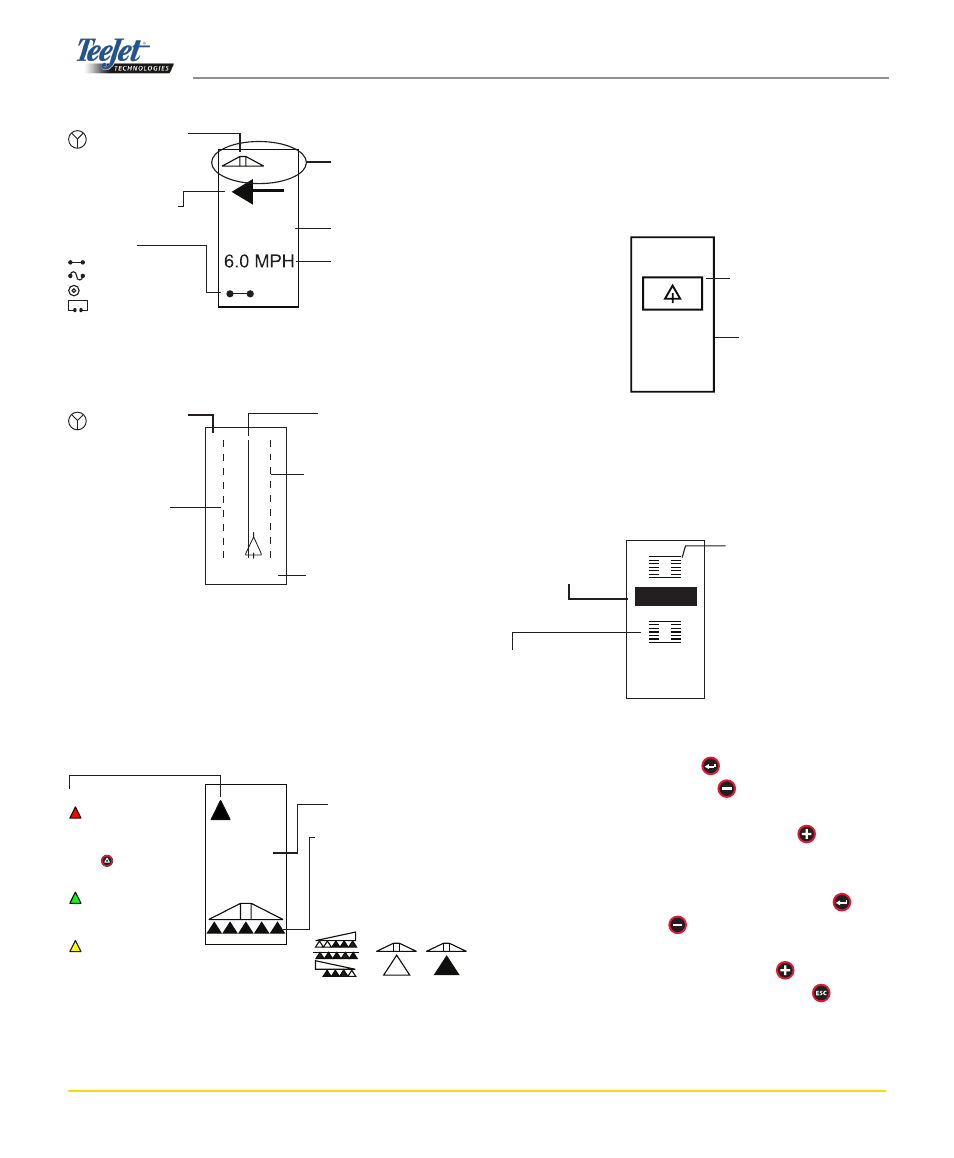

navigation screen - operation
Guidance screen - map page
auto boom section Control screen
NOTE: This screen will not be displayed if a Smart-
Cable or SDM is not installed in the sys-
tem.
Center guideline
Next guideline to the right
Next guideline to the left
Distance from
center guideline
Mode Indicator
ALL - All On mode overrides
the controller boom section
status and turns all boom
sections on. The Swath Sta-
tus key must be held the
entire duration of operating
in ALL ON mode.
AUTO - Auto mode allows
the CenterLine 230BP to au-
tomatically control the boom
sections.
MAN - Manual mode dis-
ables automatic boom sec-
tion control. The operator
controls the boom sections
via the rate controller boom
switches.
AUTO Vehicle Speed
Individual Boom Section Status
The CenterLine 230BP can control up
to 15 boom sections. Hollow triangles
indicate the boom section is “off”. Solid
triangles indicate the section is “on”.
Example:
Boom
Section
Off
Boom
Section
On
1200.0
33200.0
2
1
Applied Area 1
May be used to display the accumulated total
of applied area (in acres/hectares) of the CUR-
RENT field (user preference).
Applied Area 2
May be used to display the accumu-
lated total area of all fields applied
(user preference).
The highlighted area indicates
which Applied Area is selected
for reset.
1.5
Swath Number
+ to the right of the A-B baseline
- to the left of the A-B baseline
Guidance Mode
Straight A-B Guidance
Curved A-B Guidance
Circle Pivot Guidance
Headland Circuit
Distance to main guideline
Vehicle Speed
Direction to main guideline
+1
1435.00
Bounded Area
Indicates a bounded area has been completed
Acres (Hectares) Bounded
Indicates the number of hectares (acres) bounded
by Headland
Circuit
This icon located in the
upper left corner of the
screen indicates that
Assisted Steering is engaged.
This icon located in the
upper left corner of the
screen indicates that
Assisted Steering is engaged.
6.0 Ft
6.0
MPH
Acres
