CenterLine 230BP
98-05112 R4
7
ChapTer 2 - seTup
The CenterLine 230BP is configured to work with Auto-
matic Boom Section Control (ABSC) through the use of
a SmartCable or Section Driver Module (SDM). It is also
configured to work with Assisted Steering through the use
of a Steering Control Module (SCM). A Tilt Gyro Module
is available as a standard feature when a SCM is in use.
It is also able to be used as an add-on feature if no SCM
is present.

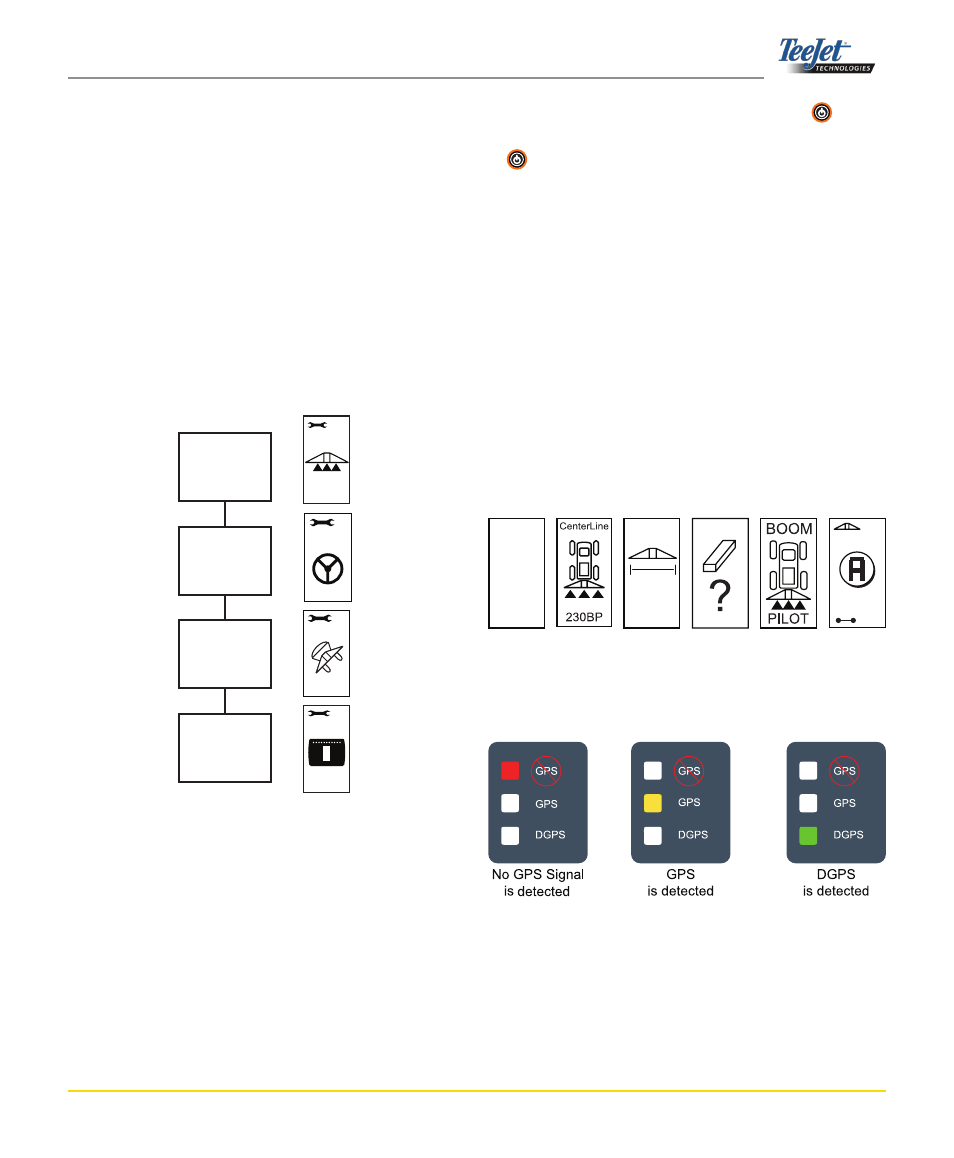

Setup Flow Overview:
power up sequence
Before starting the CL230BP, make sure the spray control-
ler is powered up, the Master Switch is set to the “On” posi-
tion, and the individual boom section switches are turned
“Off”.
NOTE: For information regarding the use of
FieldPilot 230, refer to document
# 98-05137 R0.
Power up the system by pressing the Power button.
Power down the system by pressing and holding the Pow-
er button for approximately four (4) seconds. At power
up, the CL230BP will perform the following steps:
Display copyright and software version screen for •
three (3) seconds.
Display the splash screen for two (2) seconds. •
Detect if GPS data are present (this occurs simulta- •
neously within the display screen sequence).
Display the current swath width for three (3) sec- •
onds.
The Area Reset screen will be displayed. •
The splash screen is displayed until the (D)GPS LED •
is illuminated or Setup mode is entered. Once the
console begins receiving (D)GPS positions, the Op-
eration screen will be displayed.
29.
Swath Width
Screen
5
Displayed while
waiting for
(D)GPS
6.0 MPH
GPS detected
Operation
Screen
+0
Area Reset
Screen
Bp
teeJet
© 2008
Copyright
Software
Version Screen
CL230
V1.07
Setup
(standard)
Assisted
Steering
(if present)
Tilt
(if present)
Display
Setup
(standard)
Splash
Screen
