CenterLine 230BP

98-05112 R4

3

Tilt Gyro compensation is now available as an up-

grade to the CL230BP For part numbers and pric-

ing, please consult your regional TeeJet Technologies

representative.

The upgrade includes the support of FieldPilot As-

sisted Steering. Connection to the SCM is now via

CAN. Existing FieldPilot 220 customers upgrading to

FieldPilot 230 must arrange to exchange their SCM.

Headland Circuit mode has been improved.

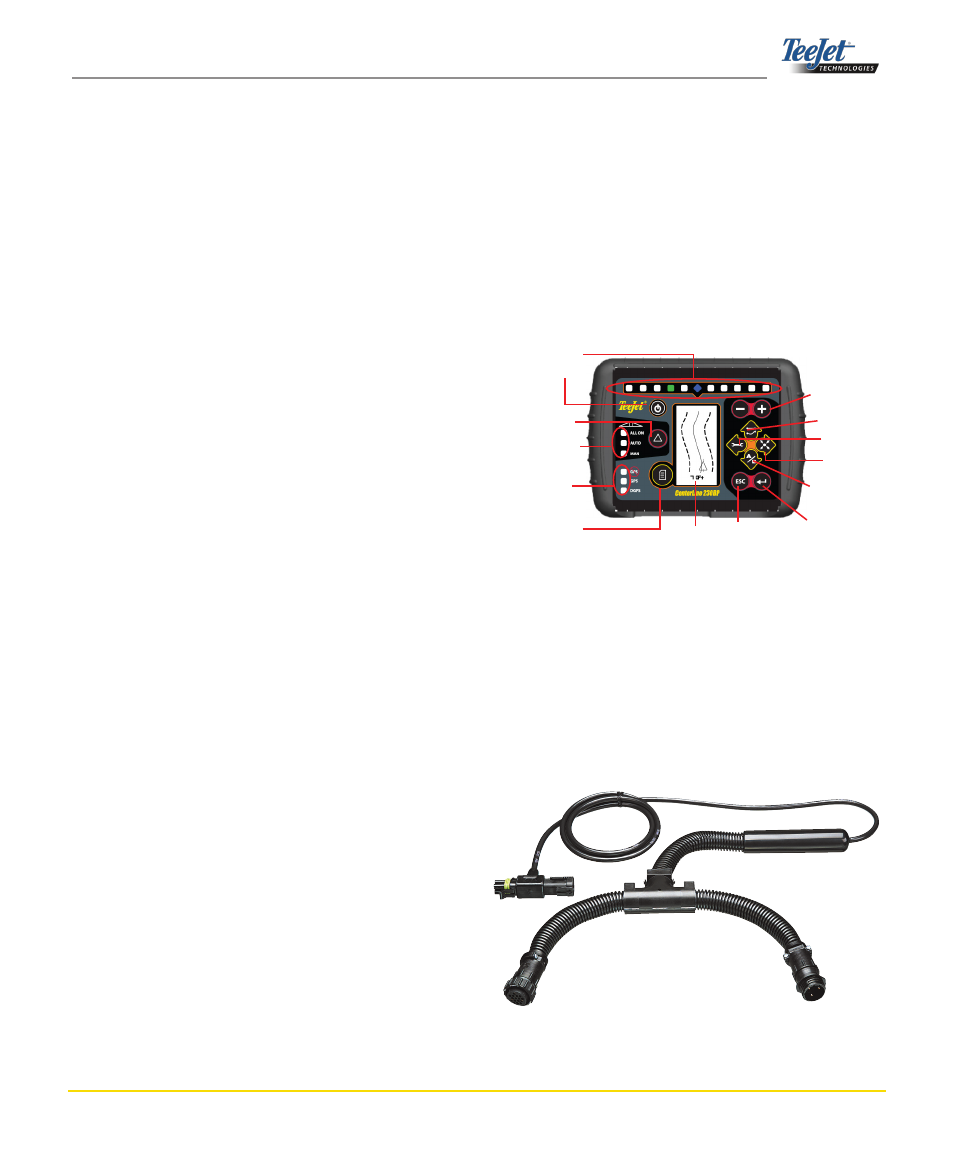

smarT Cable

- The Smart Cable is the link between

the CL230BP, the existing rate controller, and the boom

section valves. It allows the CL230BP to control the

boom sections automatically.

ChapTer 1 - InTroduCTIon

This User Guide provides information for software version

1.07.

The CenterLine 230BP software 1.07 provides the follow-

ing enhancements to the system:

Applied area now includes only the area under the ac-

tive boom sections and acre counters will accurately

represent applied area. Prior calculations counted all

area under the entire boom, regardless of whether

individual sections were on or off.

Unapplied area is now considered “untreated” and

can be treated at a later time.

Boundary area is calculated and displayed as a re-

sult of a headland perimeter pass in headland circuit

mode. This value is held in memory through the next

power cycle and is erased when the user chooses

to clear the memory and begin application of a new

area.

When a field boundary is created in headland circuit

mode, a “No Spray” zone is created outside of that

field boundary. This boundary and “No Spray” zone is

held in memory through the next power cycle.

Area information and as-applied data are now up-

dated and saved with greater frequency.

Drive Sensitivity (LED spacing on the lightbar) can

now be changed in the system Setup menu.

A section width of “0.0” can now be entered.

Contrast is now adjustable with the +/- keys during

the startup splash screen. Once GPS is attained, the

+/- revert back to adjustment of screen Brightness.

A system setting for “GPS Source” allowing a devoted

external source has been added. The default GPS

source is the internal GPS receiver.

DGPS LED activation will now cycle through a 2 min-

ute delay for the purpose of stabilizing DGPS perfor-

mance. It is recommended guidance mode operation

begin after the DGPS LED is active.

Power

Increase/Decrease

Swath Status Lights

GPS Status Lights

Change Page

Setup Mode

Escape

Enter

Display

Return to Point

Mark A-B Line

Guidance Mode

Lightbar

Swath Status

(Selects Mode)
