CenterLine 230BP
98-05112 R4
15
ChapTer 3 - operaTIon
The CenterLine 230BP is configured to work with Auto-
matic Boom Section Control (ABSC) through the use of
a SmartCable or Section Driver Module (SDM). It is also
configured to work with Assisted Steering through the use
of a Steering Control Module (SCM). A Tilt Gyro Module
is available as a standard feature when a SCM is in use.
It is also able to be used as an add-on feature if no SCM
is present.
power up sequence
Power up the system by pressing the Power button.
Power down the system by pressing and holding the Pow-
er button approximately four (4) seconds.
At power up, the CenterLine 230BP will perform the fol-
lowing steps:
Display copyright and software version screen for •
three (3) seconds.
Display the splash screen for two (2) seconds. •
Detect if GPS data are present (this occurs simulta- •
neously within the display screen sequence).
Display the current swath width for three (3) sec- •
onds.
The Area Reset screen will be displayed. •
The splash screen is displayed until the (D)GPS LED •
is illuminated or Setup mode is entered. Once (D)GPS
is locked, the Operation screen will be displayed.

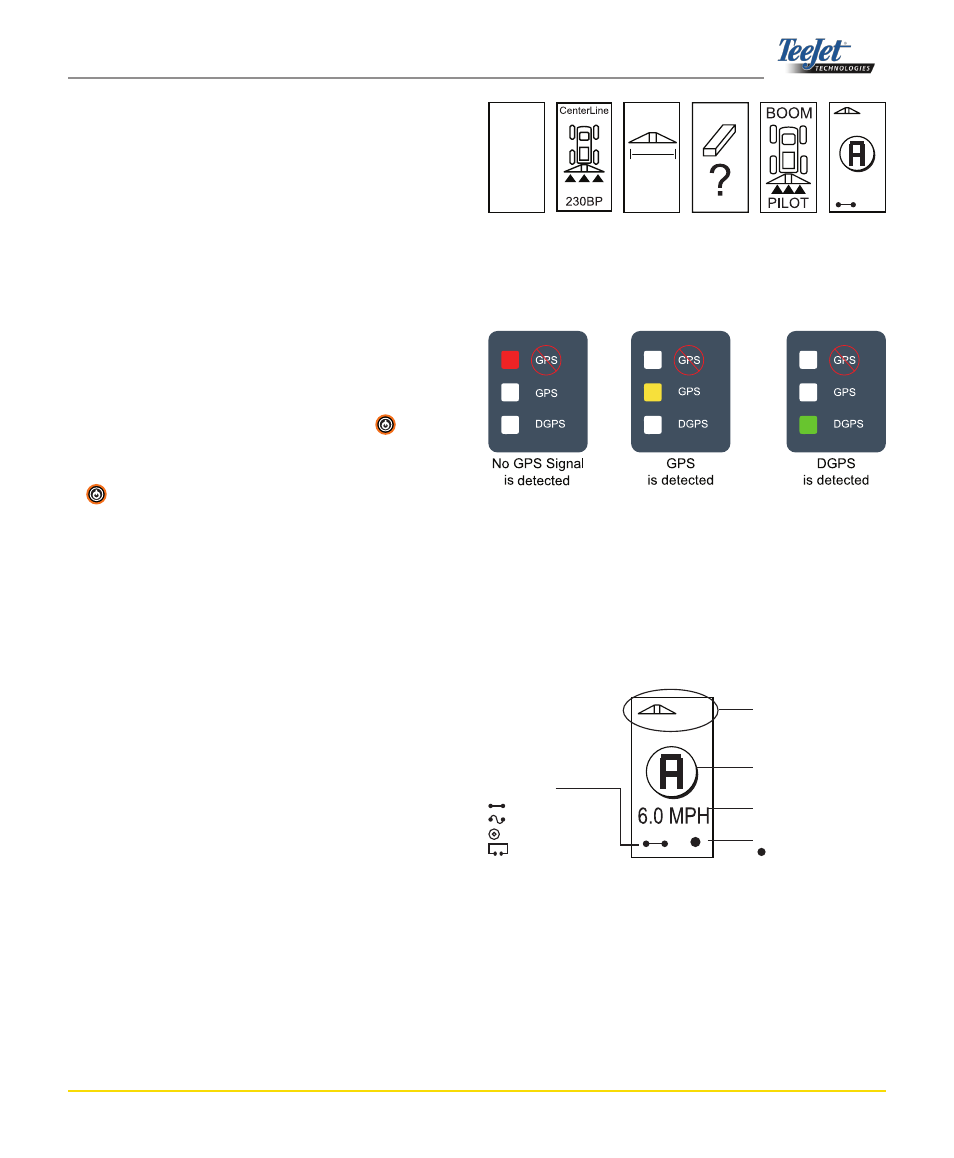

Centerline 230bp operation
reference screens
navigation screen - mark a-b
29.
Swath Width
Screen
5
Displayed while
waiting for
(D)GPS
6.0 MPH
GPS detected
Operation
Screen
+0
Area Reset
Screen
Bp
teeJet
© 2008
Copyright
Software
Version Screen
CL230
V1.07
Splash
Screen
+0
Swath Number
+ to the right of the A-B baseline
- to the left of the A-B baseline
Return to Point Indicator
indicates a point is stored
Guidance Mode
Straight A-B Guidance
Curved A-B Guidance
Circle Pivot Guidance
Headland Circuit
Action Indicator (currently
Mark Point A)
Vehicle Speed
