Chapter 2 - Setup 10

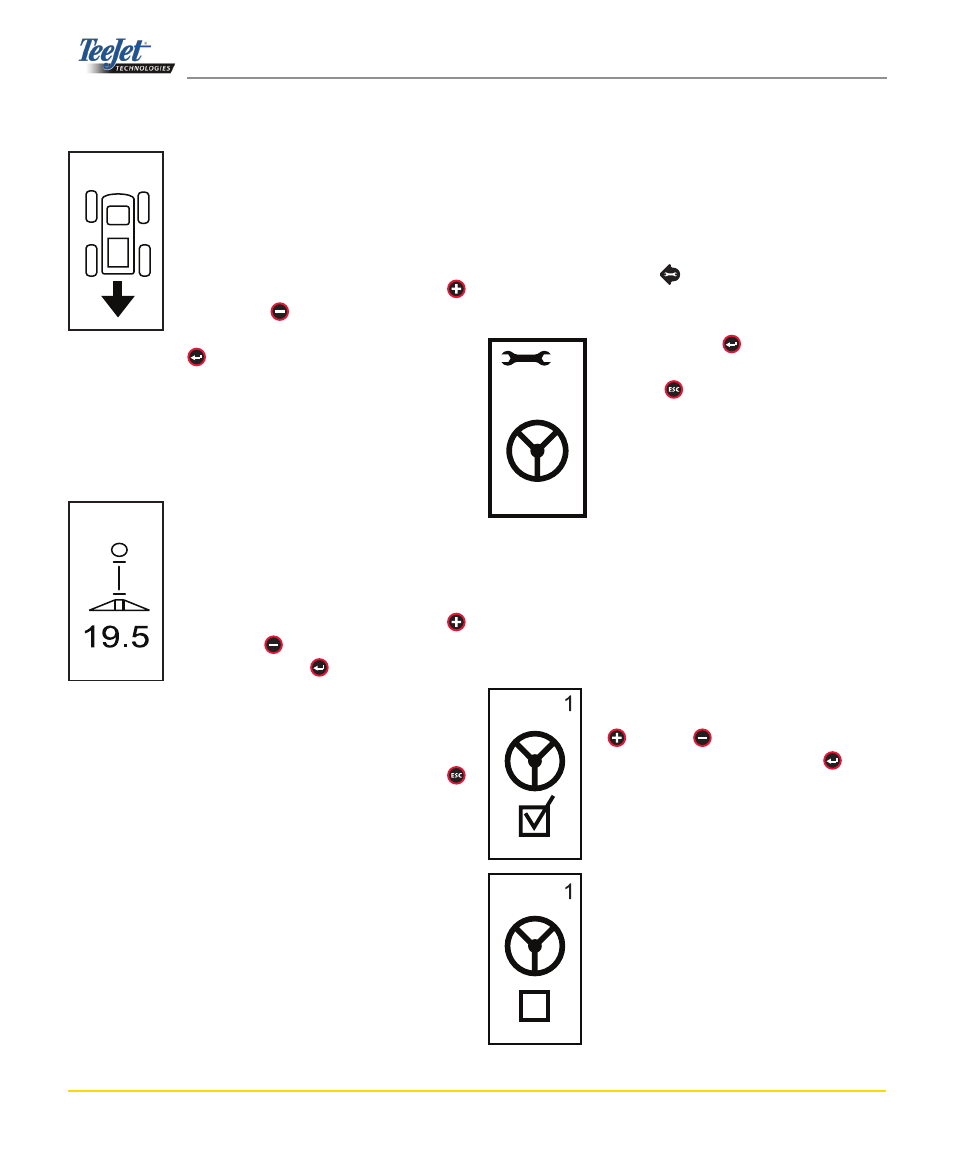

boom offseT dIreCTIon
A BACkWARD selection (as shown) in-
dicates the boom is located behind the
GPS antenna as the vehicle moves in a
forward direction. A FORWARD selection
indicates the boom is located in front of
the GPS antenna as the vehicle moves
in a forward direction. Use the Plus
and Minus keys to adjust between
Forward or Backward. Press the Enter
key to accept the changes and ad-
vance to the Boom Offset Distance set-
ting.
boom offseT dIsTanCe
Define the distance from the GPS anten-
na to the boom in decimal feet (decimal
meters). The boom offset distance range
is 0 to 164 decimal feet (0 to 50 decimal
meters). In the example shown, 19.5 feet
equals 19 feet 6 inches. Use the Plus
and Minus keys to change the value.
Press the Enter key to accept the
changes.
Once the final setting has been entered and saved, the
screen will return to the initial CL230BP Setup Screen. If
no additional changes are required, press the Escape
key to exit to Operation Mode.
assisted steering setup mode
NOTE: If a Steering Control Module (SCM) is not
connected to the system, Assisted Steer-
ing Setup Mode will not be displayed.
Proceed to the next section.
Press the Setup Mode key until the initial Assisted
Steering Setup Mode screen is displayed.
Press the Enter key to save the set-
ting and advance the screen. Press the
Escape key to exit from Setup Mode
without saving any changes. After 10
seconds of inactivity, Setup Screens will
time out (changes will be saved). The
CL230BP will return to Operation Mode.
NOTE: If an SCM is connected to the CL230BP
after it is powered on, the connection will
not be detected. Power must be cycled.
sTeerInG
Steering allows the Assisted Steer func-
tion to be turned on and off. Use the Plus
or Minus keys to toggle the setting
to “On” or “Off”. Press the Enter key to
accept the changes and advance to the
Look Ahead setting.
A checked box activates the Steering
Control system.
