Test Output

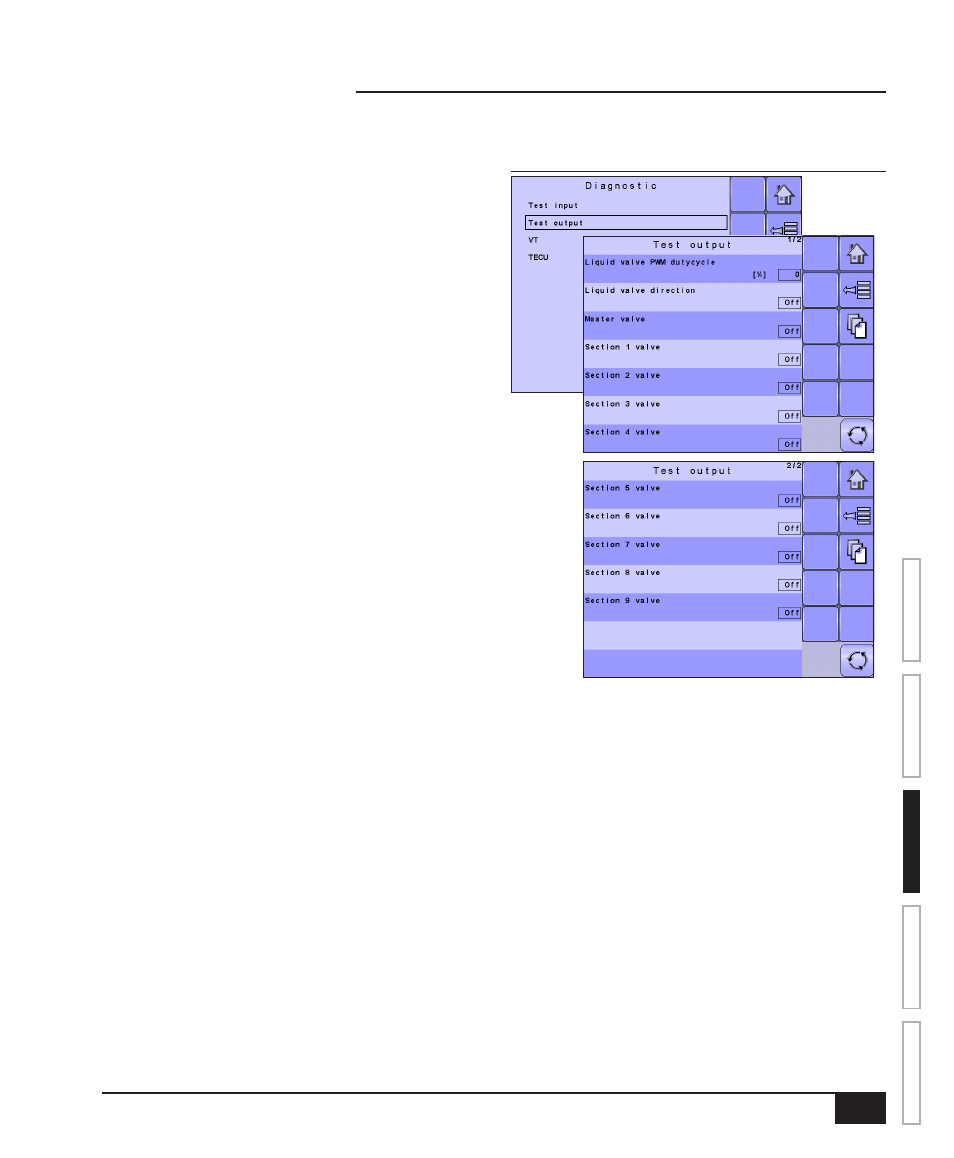

Figure 3-32: Test Output
Test Output sets the Liquid Valve PWM Dutycycle
percentage as well as if Liquid Valve Direction, Master
Valve, Fill Valve and Section Valves 1-9 are on or off.
Liquid Valve PWM Dutycycle
Liquid Valve PWM Dutycycle is used to test the regulating
valve at different percentages of duty cycle.
• To set the Liquid Valve PWM Dutycycle, use the
number pad or slide bar.
Liquid Valve Direction
Liquid Valve Direction is used to verify the option of the
Liquid valve direction is correct to a specific duty cycle.
• Set the Liquid Valve PWM dutycycle to the
percentage to be tested.
• Change the Liquid valve direction to "on" and the
liquid valve will open at the specific dutycycle.
• Change it back to off and the valve will close.
Master Valve
Master Valve is used to test if the Master Valve is
operating correctly. If you change the setting to "on", the
valve will open, change it to "off" and the valve will close.
• To set the Master Valve, select an option from the
drop down menu or use the UP/DOWN ARROWS to
highlight the option.
Section Valves
Section Valves is used to test if the section Valve is operating correctly. If you change the setting to "on", the
valve will open, change it to "off" and the valve will close.
• To set the Section Valves, select an option from the drop down menu or use the UP/DOWN ARROWS to
highlight the option.
