USER INTERFACE
User Interface allows the operator to select the system virtual terminal (VT), switchbox pairing, BoomPilot ECU
pairing and soft key numbering as well as view serial numbers and ECU identification number.
MAIN SETUP MODE MENU STRUCTURE
| | | | | |
Counters Job Parameters Machine User Interface Communication Help

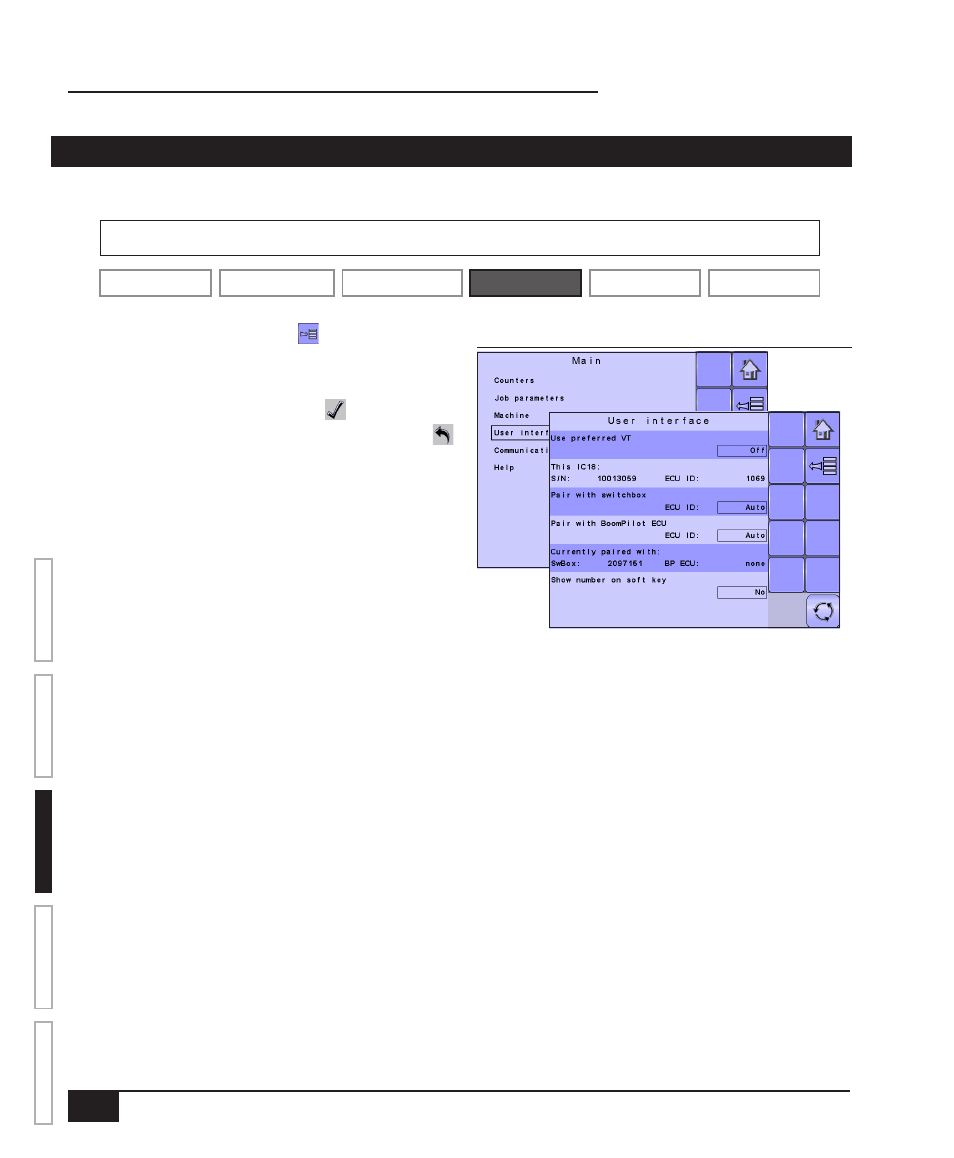

1. From the Main Setup Screen , Figure 3-26: User Interface
select USER INTERFACE.
NOTE: Settings are NOT automatically saved when
selected. The ACCEPT KEY must be selected
to save the setting. Select the ESCAPE KEY
to escape without saving settings and return to the
previous menu.
Use Preferred VT
Use Preferred VT sets the virtual terminal preference to
either on or off. If “On” is selected, the preferred VT will
be used. If “Off” is selected, the system will arbitrarily
select which VT to use (if more than one VT is available
on the ISOBUS CAN).
NOTE: This should always be set to "off" unless another VT is on the CAN bus.
• To set the Use Preferred VT mode, select an option from the drop down menu or use the UP/DOWN
ARROWS to highlight the option.
This IC18 Information
Displays IC18's serial number and associated ECU identification number.
Pair with Switchbox
The pairing of a switchbox can be set to be done automatically, not at all or to a specific switchbox ECU ID
number on the CAN network.
• To set the Switchbox pairing, select an option from the drop down menu or use the UP/DOWN ARROWS to
highlight the option.
Pair with BoomPilot ECU
The pairing of a BoomPilot ECU can be set to be done automatically, not at all or to a specific BoomPilot ECU ID
number on the CAN network.
• To set the BoomPilot ECU pairing, select an option from the drop down menu or use the UP/DOWN
ARROWS to highlight the option.
