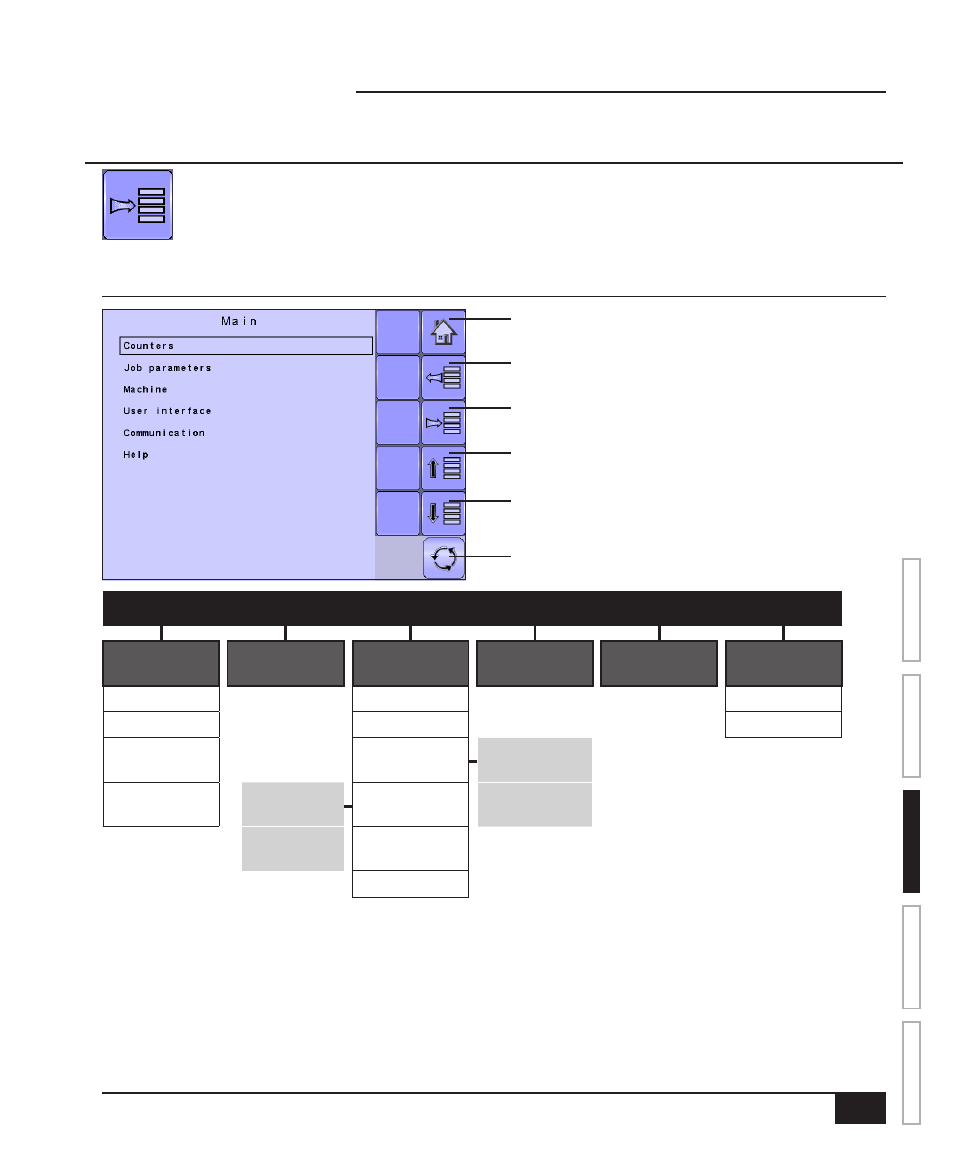

Figure 3-1: Main Setup Screen
Home Key
Back One Screen
Up One Option
Down One Option
Master Screen Key
Forward One Screen
MAIN SETUP MODE MENU STRUCTURE
| | | | | |
Counters
(pages 18-21)
Job Parameters
(pages 22)
Machine
(pages 23-31)
User Interface
(pages 32-33)
Communication
(pages 34)
Help
(pages 35-38)
Trip Filling Diagnostic
Campaign Operation About
Total Implement
parameters
– Section width
Export Counters Implement
speed sensor
– Calibrations
Regulation
parameters
Flow sensor Alarm
configurations
OEM
The OEM setup menu is password protected and the settings in this menu are directly related to the fitted OEM equipment. Refer to the OEM
Setup Manual for information regarding OEM settings.
CHAPTER 3 – MAIN SETUP IN NH3 MODE
Main Setup Mode configures the Counters, Job Parameters, Machine, User Interface, Communication
and Help options.
NOTE: The menu structure on your display might vary from the one displayed in this User Manual
depending on the virtual terminal being used.
