ISOBUS Job Computer : IC18 Sprayer
Start/Stop Application
When a switchbox is not connected for boom section control, starting/stopping application is controlled using the Start/Stop Key.
Without Switchbox

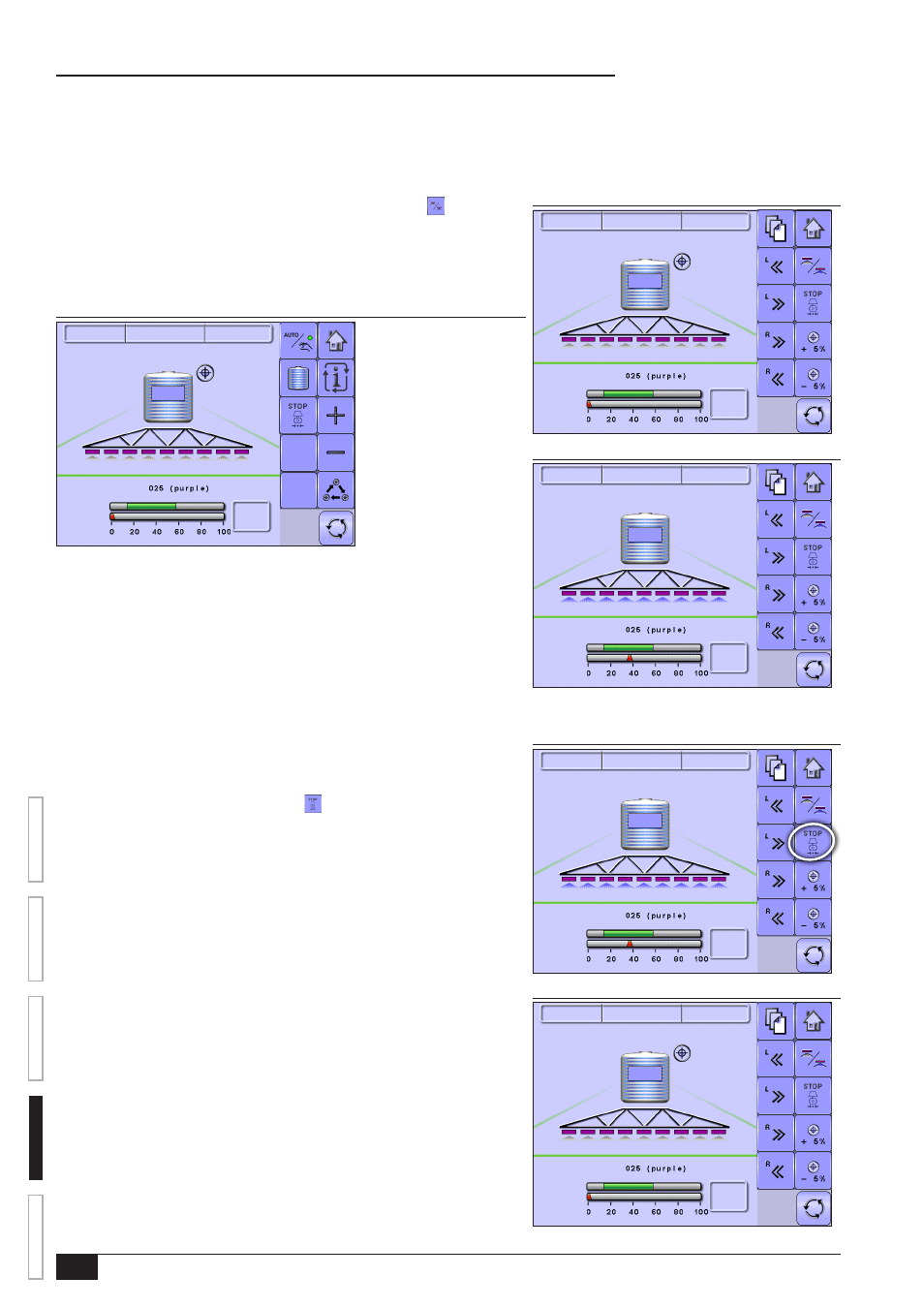

Figure 4-13: Spraying Stopped
C n t 1
5 . 0
2 5
2 0 l
0
b a r
0 . 2 5 h a
1 3 11
l / h a
k m / h
Figure 4-14: Spraying Started
C n t 1
5 . 0
2 7 . 8
2 0 l
3 8
b a r
0 . 2 5 h a
1 3 11
l / h a
k m / h
• To start or stop the application, press the START/STOP KEY .
With Switchbox
If a switchbox is being used to control the boom sections, starting/stopping
application will be controlled by the switchbox.
Figure 4-15: Operations Screen With Switchbox
C n t 1
0 . 0
2 5
0 l
0
b a r
0 . 0 0 h a
1 3 11
l / h a
k m / h
Master Stop Key
Figure 4-16: Spraying In Progress
C n t 1
5 . 0
2 6 . 7
2 0 l
3 8
b a r
0 . 2 5 h a
1 3 11
l / h a
k m / h
Figure 4-17: Master Stop Pressed
C n t 1
5 . 0
2 5
2 0 l
0
b a r
0 . 2 5 h a
1 3 11
l / h a
k m / h
Master Stop Key is used to stop all application, close all regulation valves and
change to manual regulation mode.
• To stop all application, close all regulation valves and change to manual
regulation mode, press the STOP KEY .
This is designed to be like an emergency stop button.
With Switchbox
If a switchbox is being used to control the boom sections, the Master Stop Key will
override the Master Switch on the switchbox and turn off any boom application in
progress.
