ISOBUS Job Computer : IC18 Sprayer
When “General” nozzle type is selected and a establised nozzle size is selected, the Low Pressure Limit, High Pressure Limit, Reference
Flow and Reference Pressure fields will be automatically set with the standard settings for the specific nozzle chosen. These setting can
be manually adjusted.
Low Pressure Limit
Low Pressure Limit establishes the limit for the lowest allowed operating pressure for the selected nozzle type.
• To select the Low Pressure Limit, use the number pad or slide bar.
High Pressure Limit

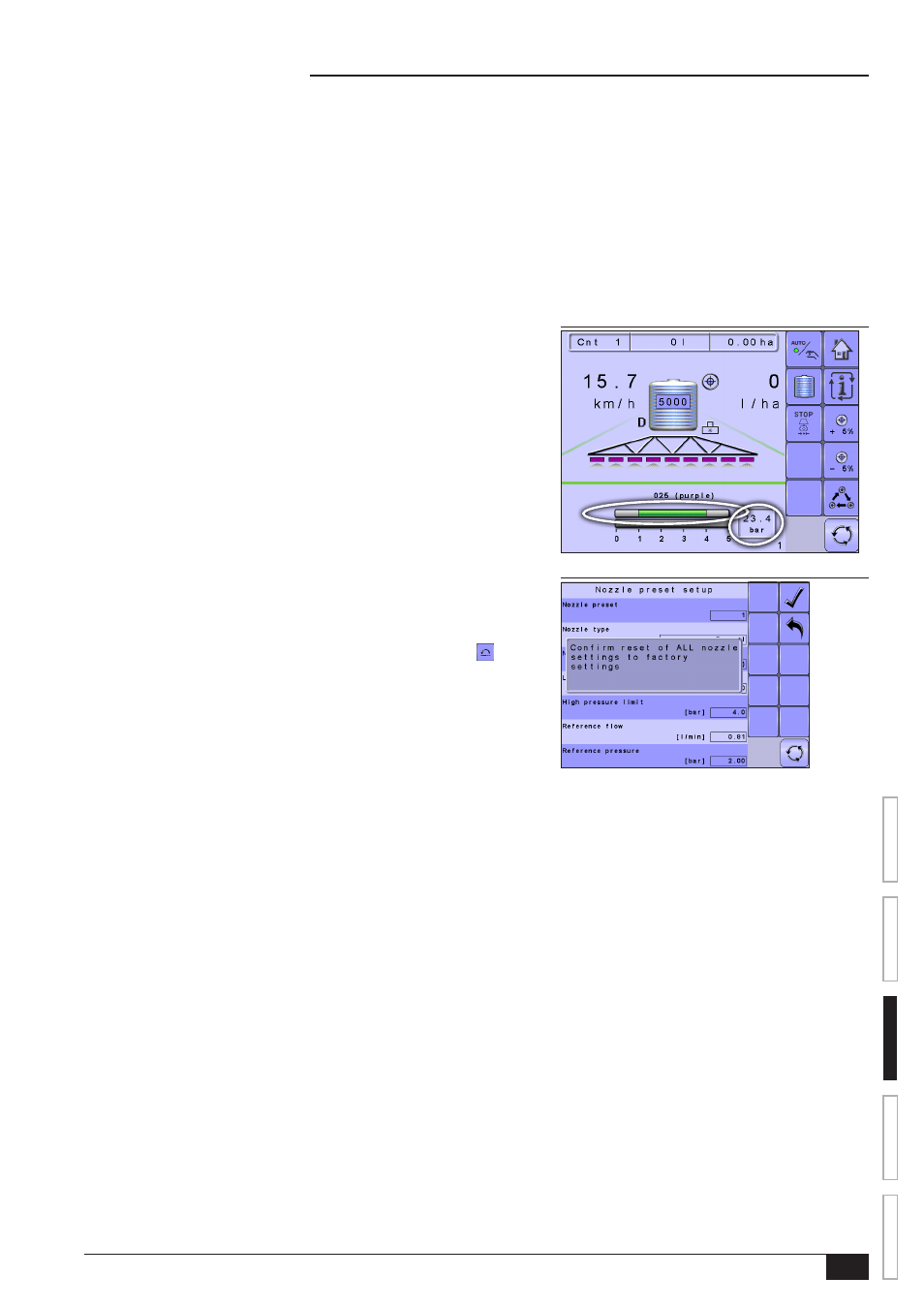

Figure 3-20: Recommended Pressure Range bar and
High Pressure Limit on the Operating
Screen
Figure 3-21: Confirm Factory Settings
High Pressure Limit establishes the limit for the highest allowed operating pressure
for the selected nozzle type.
• To select the High Pressure Limit, use the number pad or slide bar.
Reference Flow
Reference Flow establishes the value for the volume applied over a specific time
(GPM or LPM).
• To select the Reference Flow, use the number pad or slide bar.
Reference Pressure
Reference Pressure establishes the pressure value at which the application rate is
true (ISO=2 bar).
• To select the Reference Pressure, use the number pad or slide bar.
IMPORTANT! Always refer to the nozzle pressure values recommended by the
supplier when setting the nozzle pressure.
Factory Settings
Factory Settings resets all nozzle settings to the default settings for the selected
nozzle size and type.
• To reset the Factory Settings, select FACTORY SETTINGS KEY . A
confirmation screen will be displayed.
•
