Implement Parameters

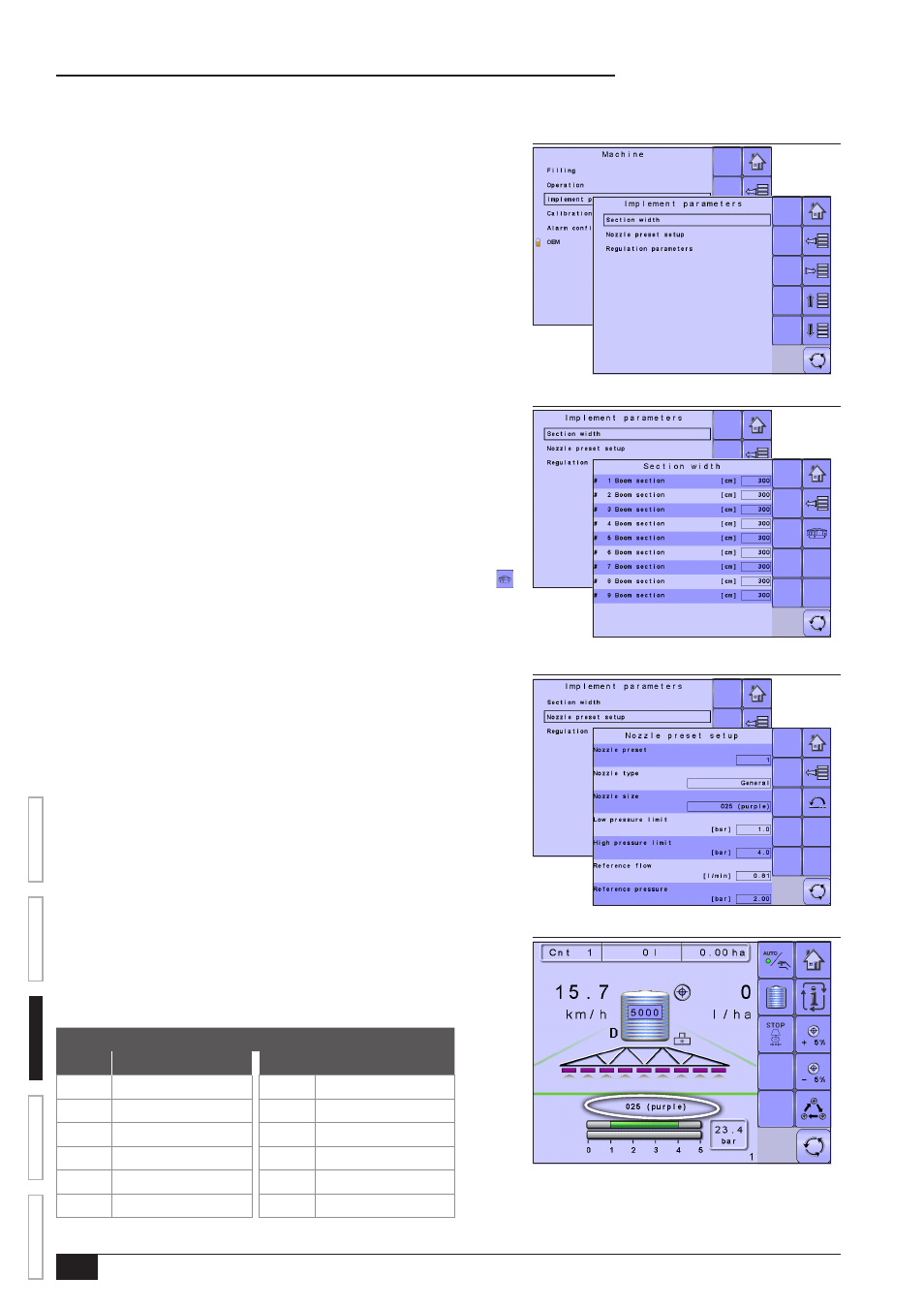

Figure 3-16: Implement parameters
Figure 3-17: Section Width
Implement Parameters establishes the following:
►Section Width – sets the spraying width during application.
►Nozzle Preset Setup – where up to five (5) sets of nozzle options can be
established to set the nozzle type, size, low/high pressure limit, reference flow
and reference pressure.
►Regulation Parameters – where adjustments to the valve calibration, nozzle
spacing and regulations mode can be established.
Section Width
Section Width sets the spraying width during application.
Boom Section Width
Section Width establishes the boom sections widths for each boom section.
NOTE: The number of boom sections available is set on the Implement
Parameters screen in the OEM section.
• To select the Boom Section Width, use the number pad or slide bar.
When the section widths are changed, power must be cycled in order to update the
TASC Controller on the VT.
One-Touch Equal Widths
One-Touch Equal Widths sets all boom section widths to the value set for #1 Boom
Section.
• To set all boom section widths, press the EQUAL SECTION WIDTH KEY .
Nozzle Preset Setup
Figure 3-18: Nozzle Preset Setup
Figure 3-19: Nozzle Size on the Operating Screen
Nozzle Preset Setup establishes up to five (5) sets of nozzle options setting the
nozzle type, size, low/high pressure limit, reference flow and reference pressure.
Nozzle Preset
Each one of up to five (5) Nozzle Presets can be selected to establish different sets
of nozzle options.
• To select the Nozzle Preset set, use the number pad or slide bar.
Nozzle Type
Nozzle Type sets whether the nozzle’s size will be selected from a general section
of established tips or a optional user tip.
• To select the Nozzle Type, select an option from the drop down menu or use
the UP/DOWN ARROWS to highlight the option.
Nozzle Size
Nozzle Size sets the nozzle from a list of established sizes (see chart below) or
from a optional user tip.
• To select the Nozzle Size, select an option from the drop down menu or use
the UP/DOWN ARROWS to highlight the option.
Established Nozzle Sizes and Colors
Size
Color Size Color
01 Orange 05 Brown
015 Green 06 Grey
02 Yellow 08 White
025 Purple 10 Light Blue
03 Blue 15 Light Green
04 Red 20 Black
