Form O-Y, PN 273647R1, Page 36

Depending on the heat section and gas control selected, all gas trains have one or

two single-stage and/or two-stage combination gas valves. These gas valves must

be checked annually to ensure that they are shutting off gas flow completely; follow

the instructions below.

Instructions:

1. Locate the 1/8" NPT pressure taps on the combination gas valve.
2. Check the Manual Gas Valve - With the manual valve turned off to prevent

flow to the gas valve, connect a manometer to the 1/8” inlet pressure tap in the

combination valve.

NOTE: A digital manometer is recommended.

With the field-installed manual valve remaining closed, fire the unit on Test mode &

allow the unit to go through one trial for ignition. Turn off and observe the manom-

eter for two to three minutes for an indication of gas pressure. No pressure should

be indicated on the manometer.
If the manometer indicates a gas pressure, the field-installed manual gas valve

must be replaced or repaired before the combination gas valve can be checked.

3. Check the Combination Valve - If the manometer does not indicate gas

pressure, slowly open the tested field-installed manual gas valve. After the

manometer's indicated gas pressure has reached equilibrium, close the manual

shutoff valve. Observe the gas pressure. There should be no loss of gas pressure

on the manometer. If the manometer indicates a loss of pressure, replace the

combination gas valve before placing the heater in operation.

Operating Gas Valve -

Modulating Valve -

in Modulating Gas

Control Options

AG73 and AG74

Function: The modulating valve responds to the 2 to 10 VDC signal from the control-

ler to modulate the gas pressure to the burner.
Service: The modulating gas valve has no field maintenance requirements except

careful removal of external dirt accumulation and checking wiring connections.

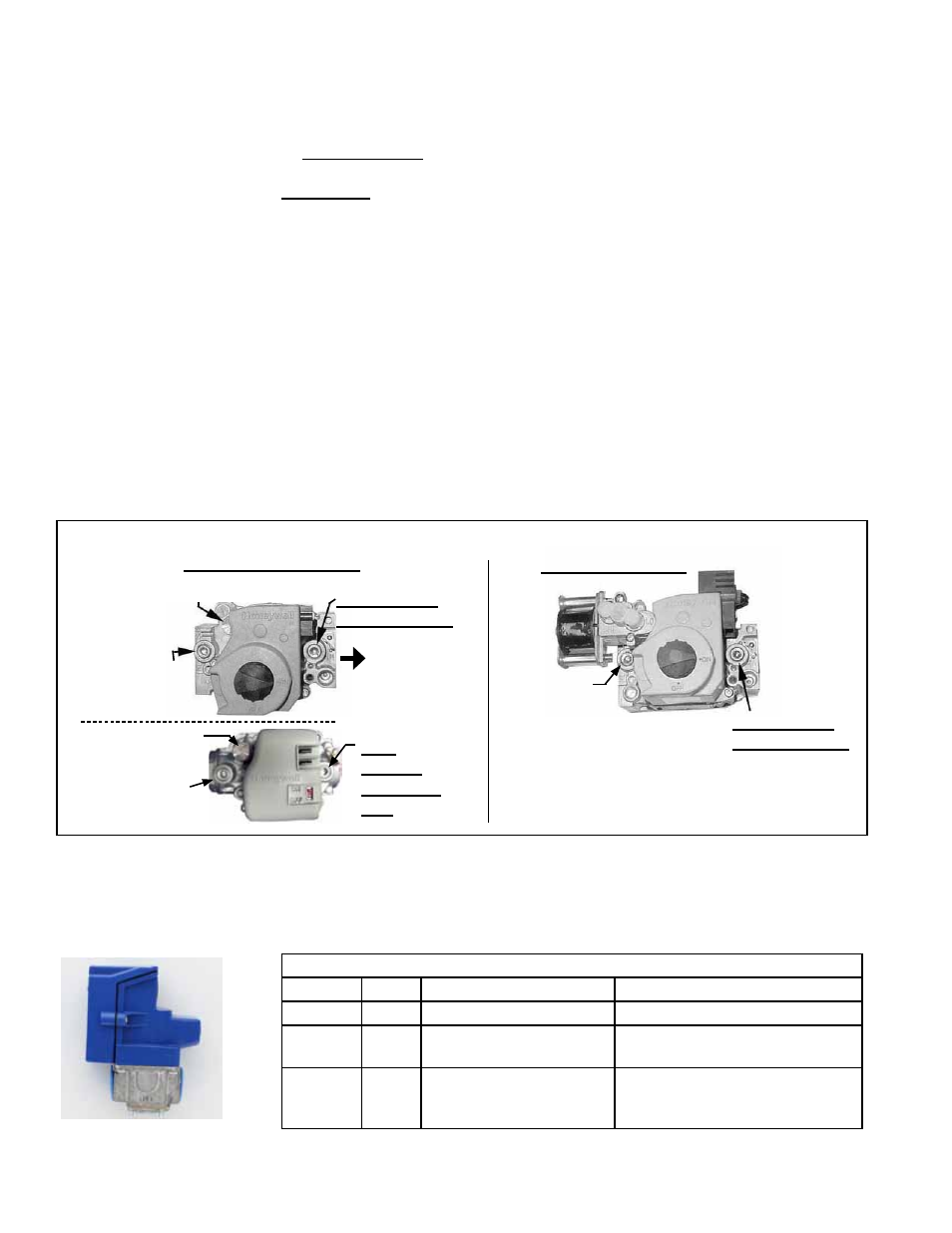

FIGURE 26 - Top View of Two Types of Single-Stage Gas Valves and a Two-Stage Valve

1/8” Output

Pressure Tap

Inlet

Pressure Tap

Adjust Outlet

Pressure

1/8”

Output

Pressure

Tap

Inlet Pressure

Tap

Adjust Outlet

Pressure

1/8” Output

Pressure Tap

Inlet

Pressure

Tap

Two-Stage Valve

Single-Stage Valves

Modulating Valve in Options AG73 and AG74

Part No

Size

Single Heat Section

Dual Heat Sections

273587

1/2"

H50, H75, & H100

H102, H125, H150, H175 & H202

271840

1/2"

G150, H200 &

H300 (propane)

G302, H402, H502 (propane), &

H602 (propane)

273588

3/4"

G225 (natural),

G300 (natural),

H300 (natural), & H400

G372 (natural), G452 (natural),

G525, G602, H502 (natural),

H602 (natural), H702 & H802

5.0 Maintenance/Service Procedures - Gas Heat Section (cont'd)

5.1 Gas Heat Controls (cont'd)
