Form I-OH, PN 120390 R5, Page 14

115/1/60

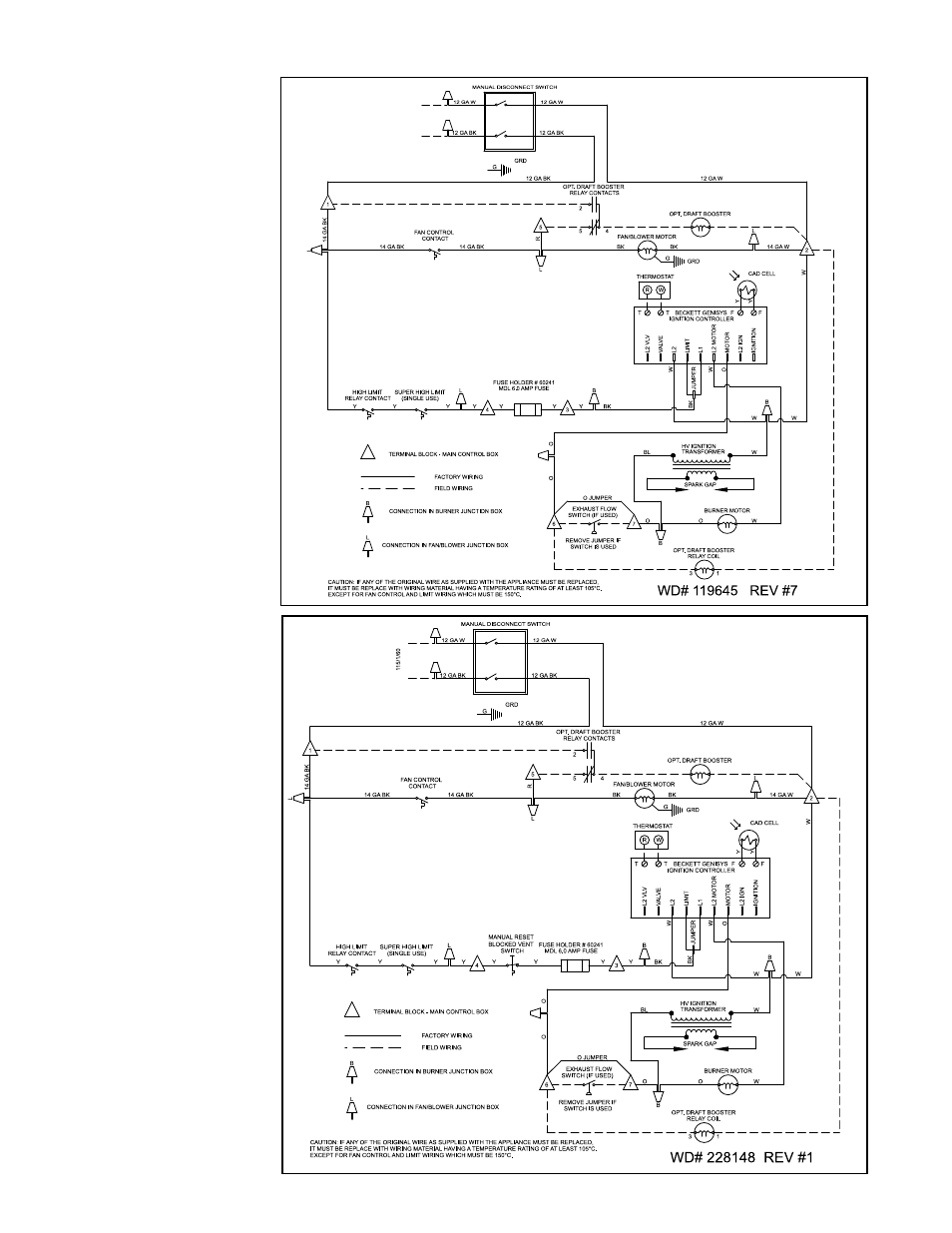

7.3 Wiring Diagrams

FIGURE 13 - Typical

Wiring Diagram for

Model OH with a UL

Logo, W.D. 119645

FIGURE 14 - Typical

Wiring Diagram for a

Model OH with a CSA

Logo, W.D. 228148
