Ring Stripe
For the Ring Stripe animated gobo, Animation Speed controls the scale.
+
The A modifier sets the segment thickness.
+
The B modifier sets the number of segments (= value +1).
Stripe Ring
For the Stripe Ring animated gobo, Animation Speed controls the central diameter.
+
The A modifier sets the line thickness.
+
The B modifier sets the number of lines (= value +1).
Fisheye
For the Fisheye animated gobo, Animation Speed controls the seam blending and mirroring (0-126 = mirrored, 127 –
255 = normal).
+
The A modifier sets the push from center.
+
The B modifier sets the push from edge.

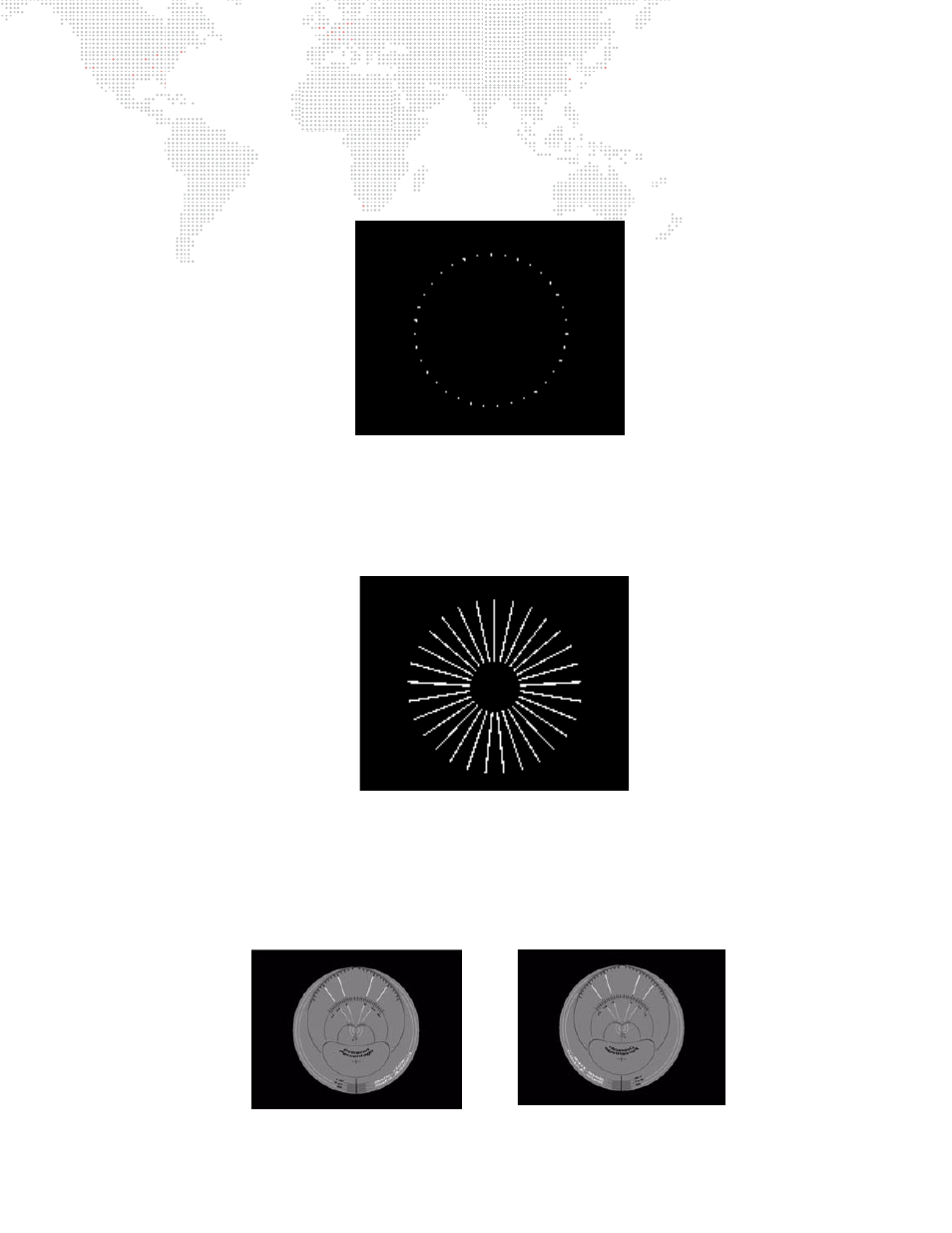

fisheye
fisheye mirrored
