PRG Mbox Designer Manual 3.9 User Manual
Page 23

MBOX
®
MEDIA SERVER USER MANUAL
15
LAYERS
Fixture:
Texture (2D)
+
Effect 1 with Controls A & B
+
Effect 2 with Controls A & B
+
(Opacity
+
Color: Red, Green, Blue
+
Texture Folder Number
+
Texture File Number
+
Playmode and Playspeed
+
In-Frame
+
Out-Frame
+
Sync Stream and Sync Offset
(Timecode and Layer-to-Layer)
+
Aspect Ratio
+
Frame Blending
+
Texture Crossfade Type and Timing
+
X, Y, and Z Positions
+
Scale
Fixture:
Objects (3D)
+
X, Y, Z Rotation, Spin, and Scale
+
Object Folder Number
+
Object File Number
+
Animation Speed
+
Animation 1 and 2
+
Object Crossfade Type and Timing
+
Drawmode / Layer Blend Mode
+
Effect 3 with Controls A & B
+
Effect 4 with Controls A & B

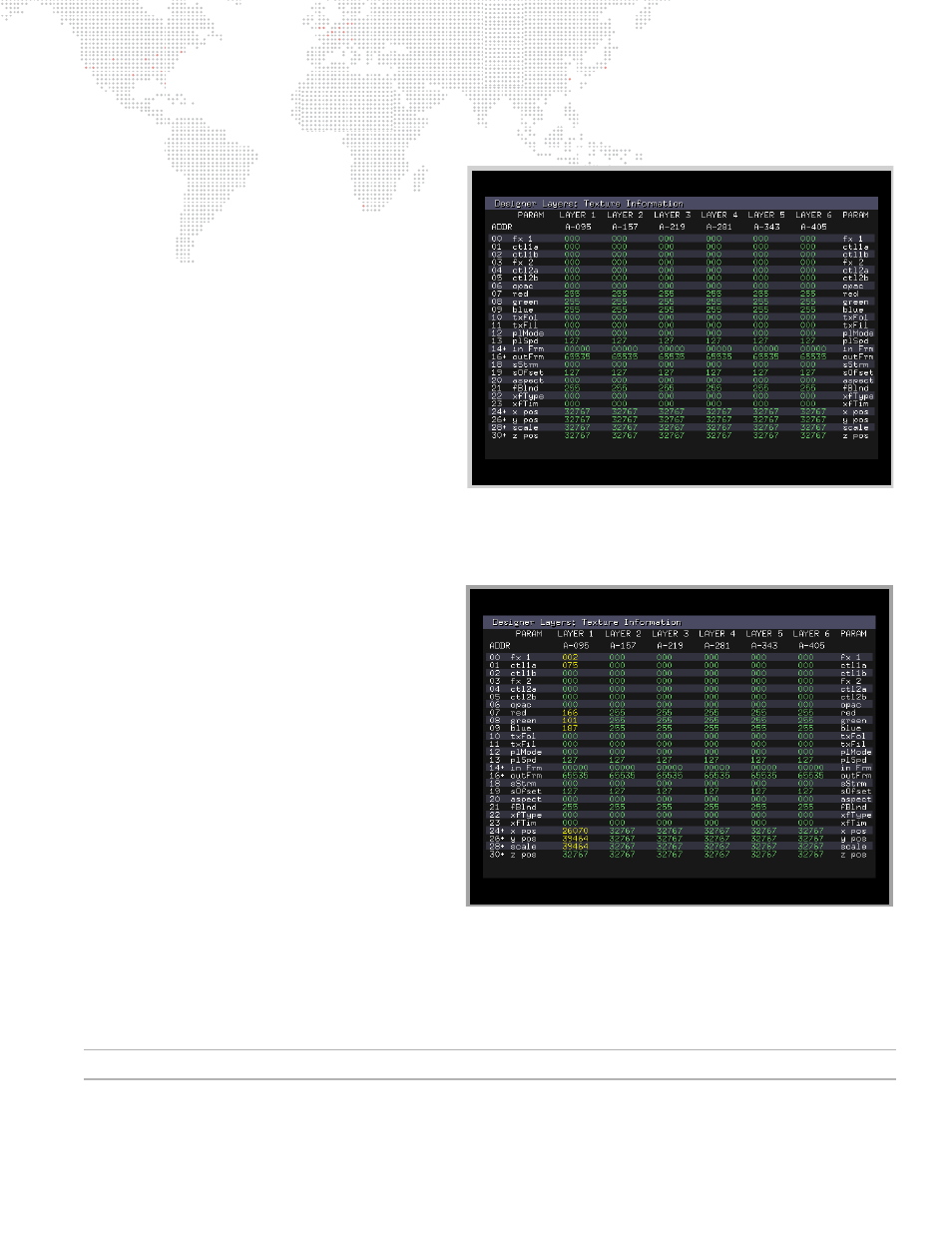

For a complete parameter maps, refer to
Color indications:
+
Green - at default value.
+
Orange - not at default value.
