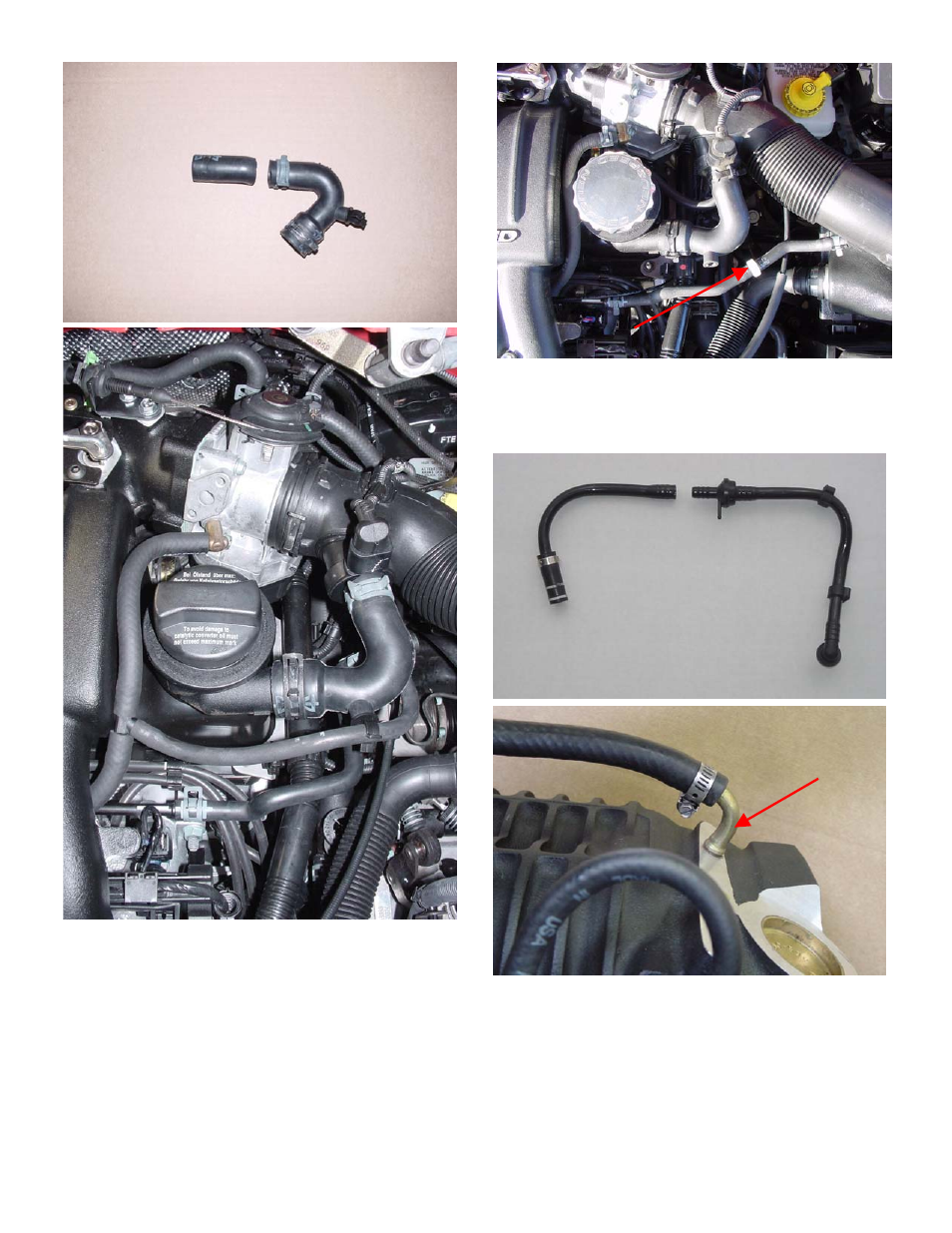

28. Cut approximately 2
1
/
2
”
from PCV hose and install as shown.
29. CHECK VALVE INSTALLATION: Cut fuel injector
vacuum line half-way between fuel rail and air intake hose –
insert new check valve supplied. Check valve MUST be
installed with conical end (red dot) facing engine!
30. Remove section of brake booster hose between manifold port
and check valve. This may require cutting the hose as shown to
remove. Connect one end of supplied
3
/
8
” X 12” brake booster
vacuum hose to check valve and the other end to the 90-degree
hose barb located on rear of supercharger housing. Use supplied
1
/
2
” hose clamp to secure hose.
