REAR ANTI-ROLL BAR CLAMP AND BUSHING KIT
FITS: AUDI A3/S3(8P) & AUDI TT(8J) FWD & QUATTRO
ALL VW MK V, MK VI, CC, PASSAT & TIGUAN FWD & 4-MOTION
VEHICLES EQUIPPED WITH NEUSPEED ANTI-ROLL BAR
PART # HCB.25.02.25.3 / HCB.25.02.28.3
INSTALLATION INSTRUCTIONS
PARTS LIST: 2 – BILLET CLAMPS W/ GREASE FITTINGS 1 – SILICONE GREASE
2 – URETHANE BUSHINGS 4 – M8X30MM SOCKET BOLT
TOOLS REQUIRED: 1 – RATCHET WRENCH
1 – M10 TRIPLE SQUARE (12 POINT) OR 8mm HEX KEY WRENCH
1 – 6mm HEX KEY WRENCH
1. Park car on a flat, level surface capable of supporting the vehicle’s weight on jack and jack stands.
Using the manufacturer’s recommended lifting point(s), raise rear of vehicle and support with jack
stands. NEVER WORK ON A VEHICLE SUPPORTED ONLY WITH A JACK!

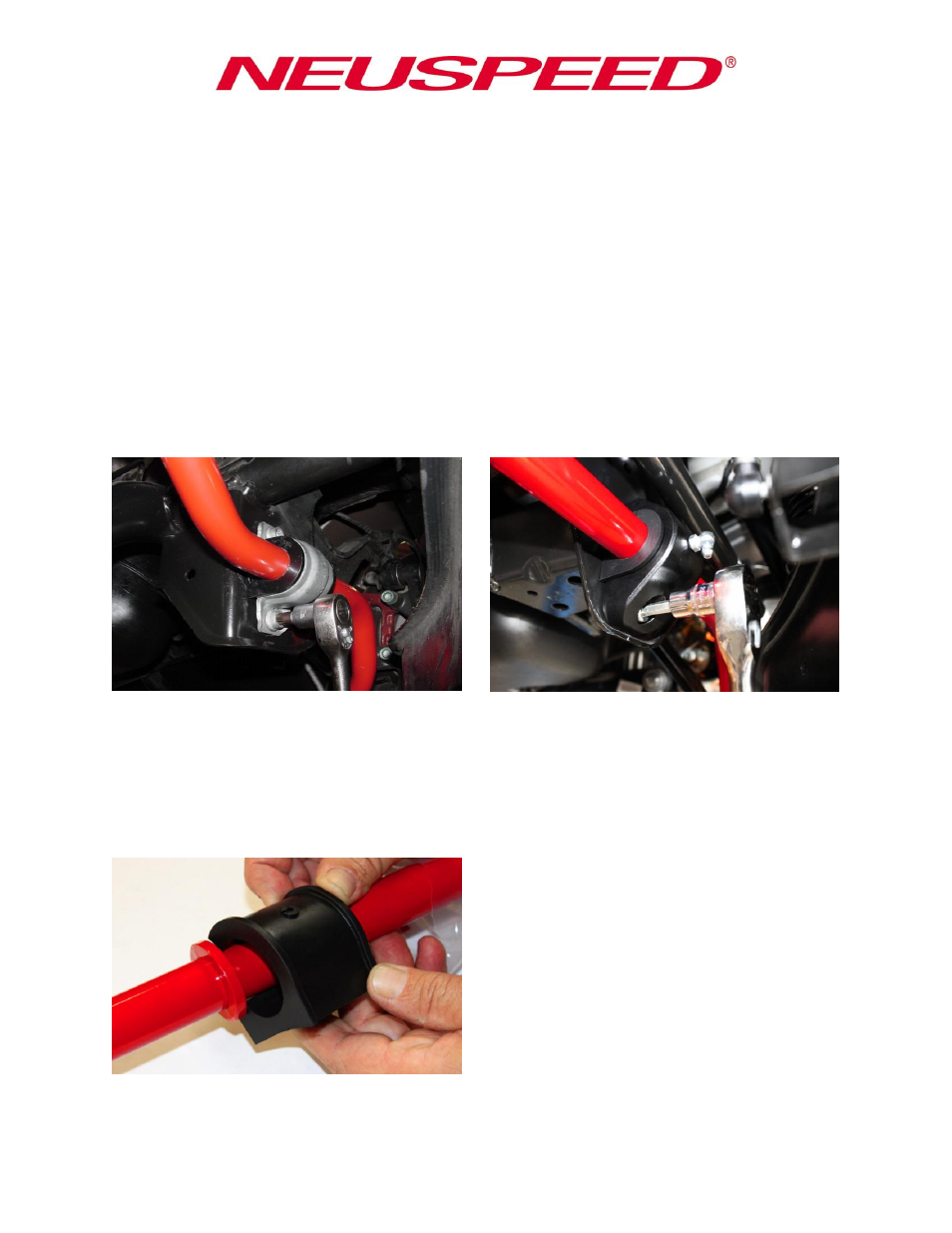

2. Remove the bushing clamp mounting bolts
using a M10 Triple Square or 8mm hex key
wrench and remove original clamps and
NEUSPEED bushings. Note: AWD models need to
compress suspension for easier access to upper
clamp bolt.
3. Clean old grease from NEUSPEED Anti-Roll
Bar using WD-40 or equivalent.
4. Apply silicone grease to the inside of supplied
bushings and install on the inside of stop washer
on NEUSPEED Anti-Roll Bar.
5. Install NEUSPEED Anti-Roll Bar Billet Clamps
with fittings facing downward and bolts supplied
to sub-frame. Torque bolts to 24Nm (18 ft-lbs).
6. Double check complete installation.
7. Grease bushings yearly with grease gun.
Copyright 2012, NEUSPEED
® . All rights reserved. Reproduction in whole
or in part prohibited.
DOC.HCB.25.02.25.3 Rev. 08.23.12
