NEUSPEED • 3300 Corte Malpaso • Camarillo, CA 93012 • 805.388.7171 • 805.388.0030 FAX
www.neuspeed.com
POWER PULLEY KIT
2011-12 VW JETTA VI - 2.0L 8V
PART # 62.10.90
INSTALLATION INSTRUCTIONS
PART LIST: 1 – CRANKSHAFT PULLEY 1 – POWER STEERING PUMP PULLEY
TOOLS REQ: 1 – Ratchet 1 – 15mm Wrench
1 – 10 mm Triple Square 1 – T25 Torx Driver
1 – 6mm Hex Driver 1 – Lug Wrench
1 – Torque Wrench
NOTE: DO NOT USE ANY TOOLS THAT MAY DAMAGE OUTER PULLEY GROOVES.
1. Park vehicle on a flat, level surface capable of
supporting the vehicle’s weight on a jack and
jack stands, loosen lug nuts (17mm hex) on right
front
wheel. Using the manufacture’s
recommended lifting point(s), raise front of
vehicle and support with jack stands. NEVER
WORK ON A VEHICLE SUPPORTED ONLY
WITH A JACK! Remove right front wheel.

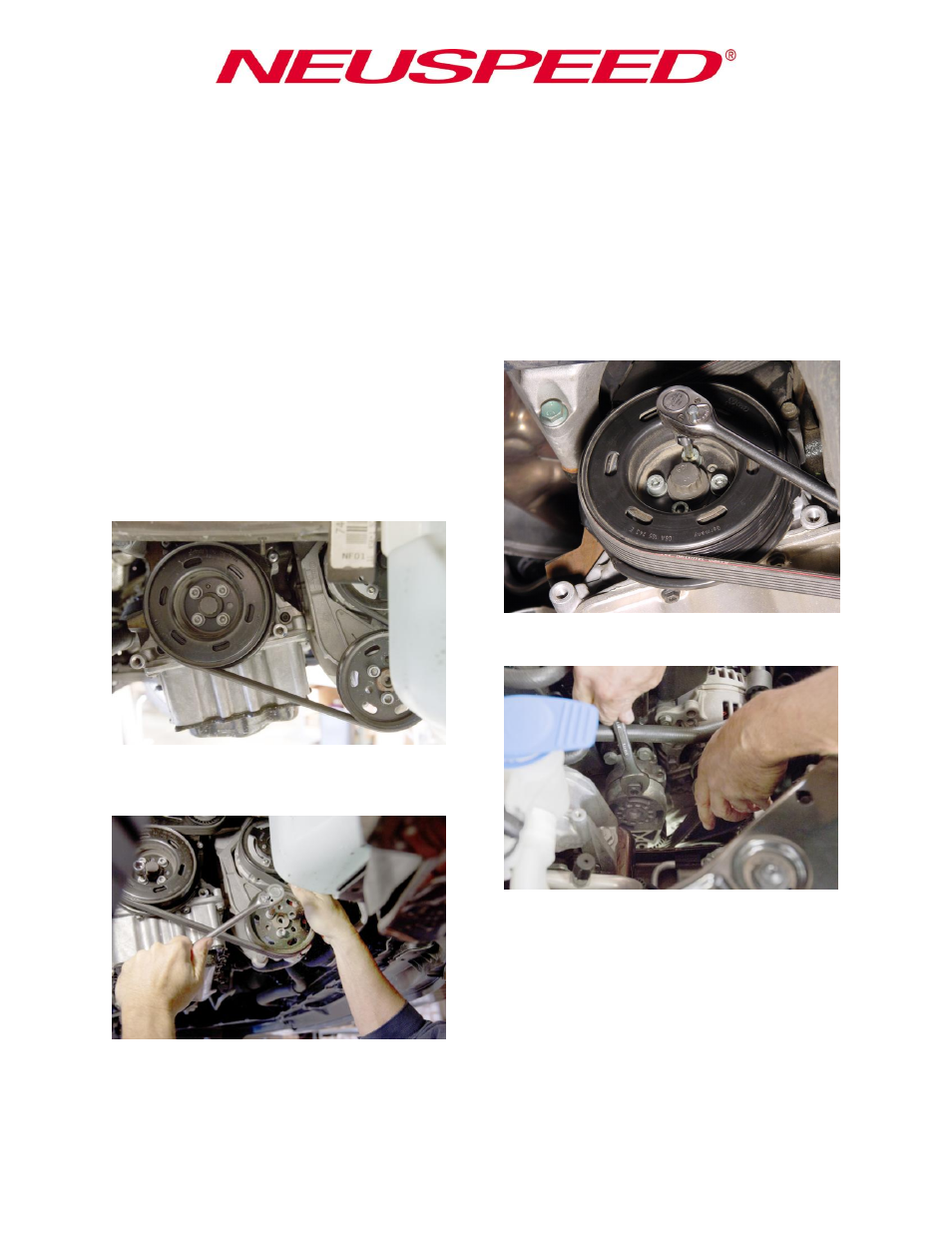

2. Remove lower engine cover and passenger
side plastic fender well liner using a T25 Torx
driver to access pulleys.
3. Using a 10mm Triple Square, loosen three (3)
bolts securing pulley to power steering pump but
do not remove.
4. Using a 6mm Hex Key wrench, loosen four (4)
bolts securing pulley to crankshaft
5. Mark direction of rotation on serpentine belt
with a felt tip marker. Release tension from belt
by using a 15mm wrench and pull forward.
Remove belt then slowly release tensioner.
