Neuspeed 49.10.93 - Manual (Page 14)

Page 14
NEW BEETLE
LOCATION AND REMOVAL OF ECU
1. Remove top center cover on dashboard by sliding forward towards windshield and lift out.
2. Unbolt two Torx screws at base of windshield, and remove driver-side dashboard cover. Carefully lift
out as it is retained by metal spring clips.

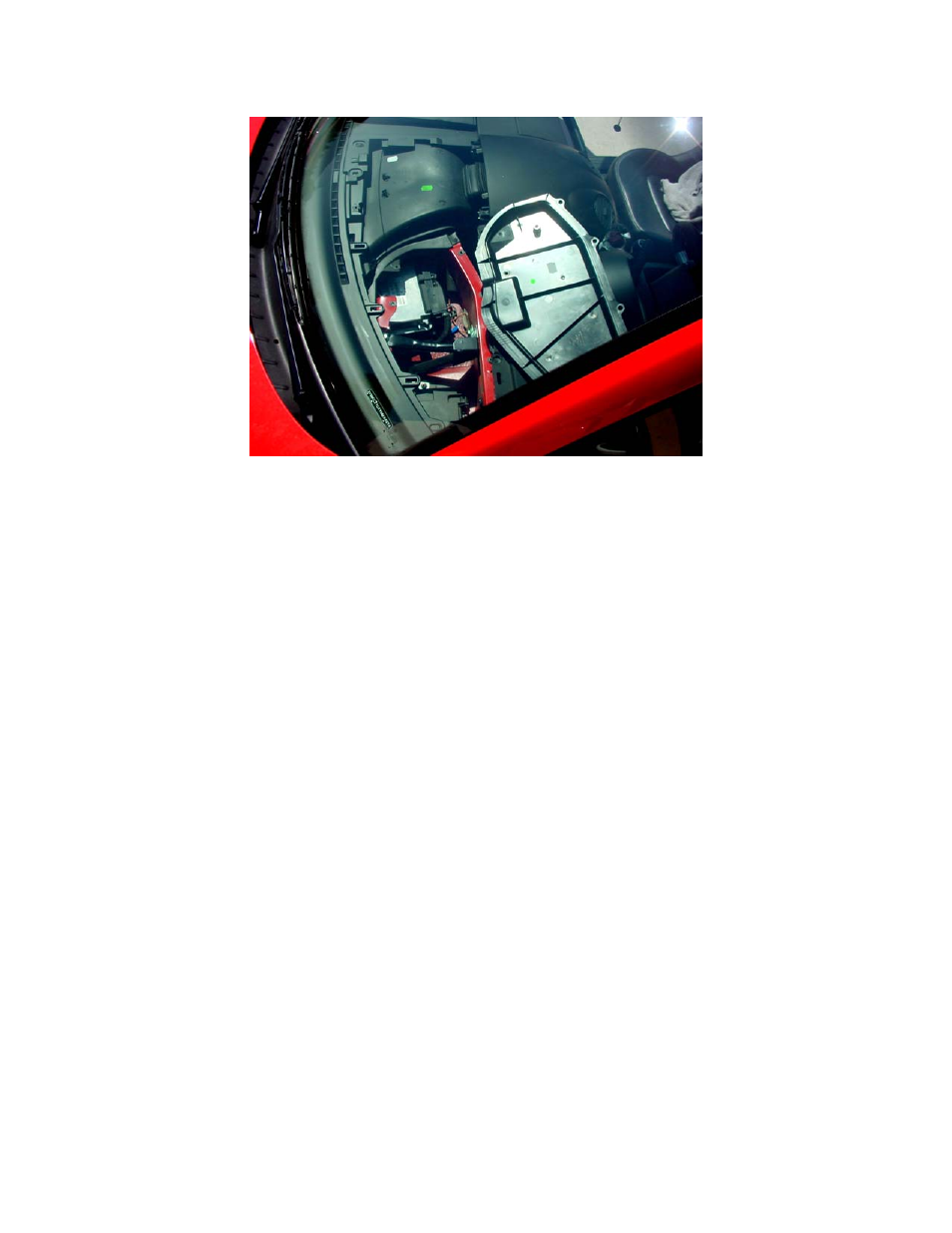

3. Unbolt six Torx screws and remove plastic cover. This exposes the ECU.
4. Release ECU from plastic clip.
5. Remove the two electrical connectors by firmly holding the slide clip and pulling it out towards the side
of the car. This action will unlock the connector and release it from the ECU. DO NOT try to force the
connector off the ECU! Just pull the locking slide outward from the connectors sideways.
6. When sending your ECU to NEUSPEED®, wrap it carefully in bubble wrap or equivalent, package
securely, include your receipt for correct program, and send next day air insured for full value…
$1,200.00 to: NEUSPEED®, 3300 Corte Malpaso, Camarillo, CA 93012. MARK BOX: ATTN: CHIP
7. We will receive your ECU the following business day, perform the NEUSPEED® P-Chip installation
and return it to you that same day.
8. Upon return of your ECU, re-install in reverse of disassembly. SEE STEP #37.
