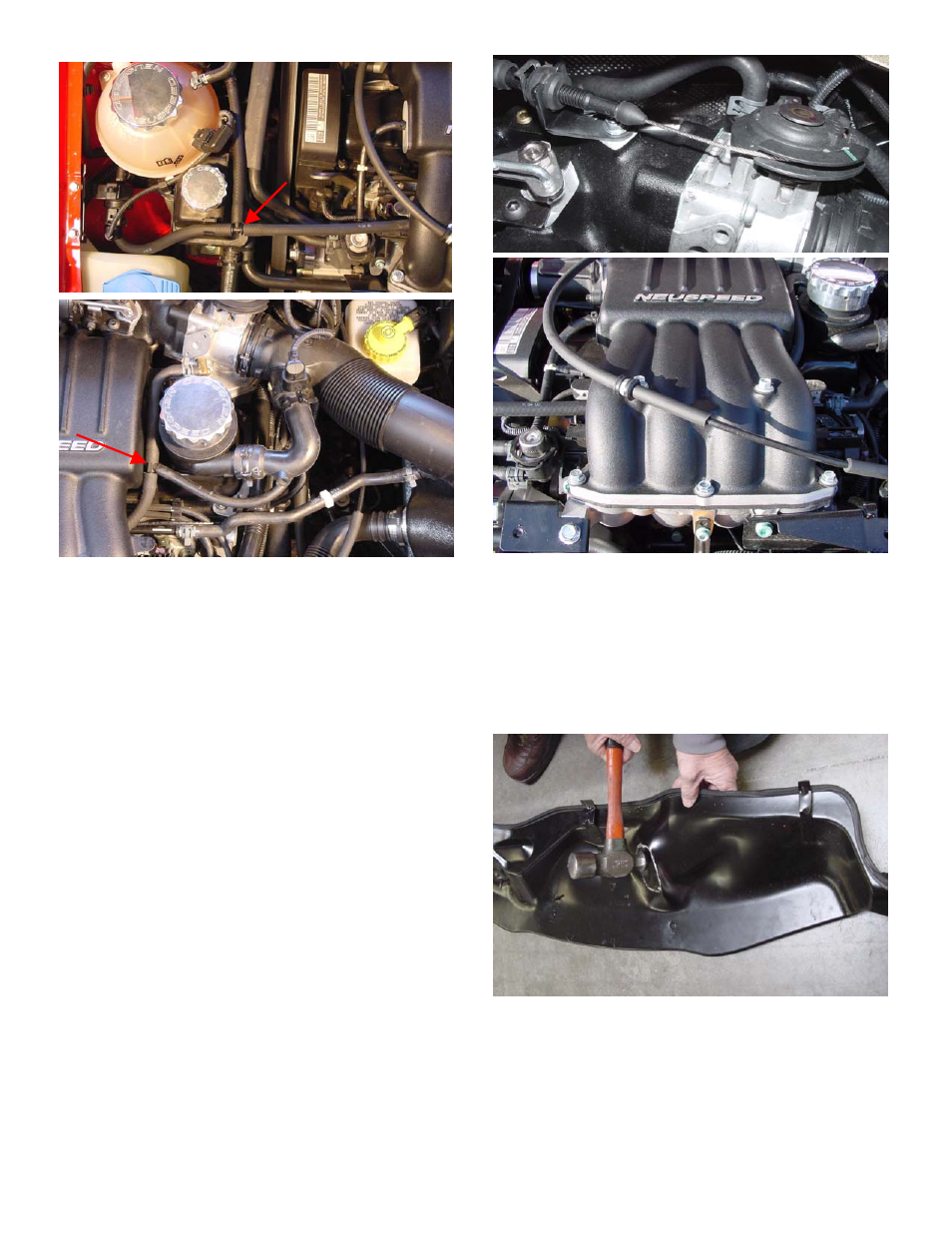

31. Connect new EVAP hose supplied ( 5 /
16
” X 36”) to EVAP
canister purge valve – route the other end under the supercharger
plenum and connect it to the 90-degree fitting on the throttle
body. Use the factory hose clamps to secure both ends. Cut hose
approximately nine-inches from EVAP purge valve and install
5 /
16
” T-fitting in line. Route new vacuum hose from fitting on
end of leak detection pump line (white plastic line) to T-fitting.
Remove stock T-fitting found on underside of intake manifold.
Install this T-fitting in vacuum line approximately six-inches
from throttle body. Cut PCV/heating element vacuum line to
length and connect to T-fitting.
32. THROTTLE CABLE INSTALLATION: Loop throttle cable
around over supercharger and clip end into actuator. Remove
metal adjusting clip from throttle cable. Insert rubber grommet
into throttle cable bracket. Depress accelerator pedal all the way,
and insert adjusting clip in its new position. Remove right rear
supercharger manifold mounting bolt and washer. Install clamp
around throttle cable. Slip bolt through clamp, then thru washer,
add Loctite – re-install and torque to 44inch lbs. (3.6 ft. lbs.).
33. BEETLE ONLY: To clear by-pass valve, it is necessary to
raise a small area on metal cowl. Use a ball-peen hammer in area
shown. Make a test-fit to be sure you have proper clearance. Re-
install metal cowl, plastic cover, sealing strip and windshield
wipers.
