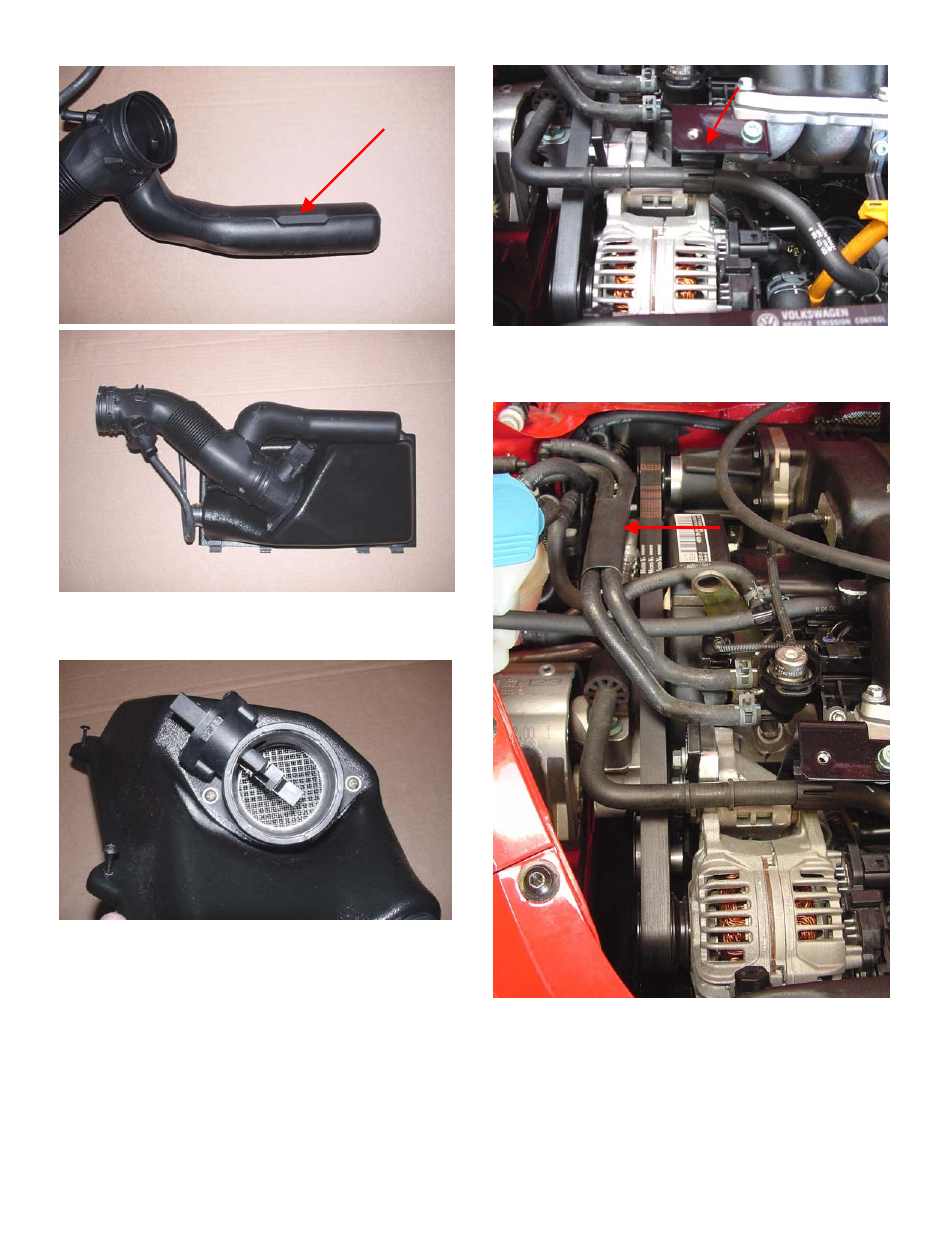

24. BEETLE ONLY: Cut mounting tab off air silencer tube
before attaching air hose to cover.
25. MAF AND AIR BOX COVER INSTALLATION: Remove
O-ring from factory air box cover, lubricate, and transfer to new
air box cover. Install MAF on new air box cover using factory
screws. Now install air box cover to lower half using factory
screws from stock cover. Snap on air pump hose, and re-install
throttle body to air filter air intake hose. NOTE: If you do not
have an air pump, you should have been provided a plain air box
cover without a hole or fitting.
26. Remove factory engine cover/coolant hose mounting bracket
and install new supplied coolant hose mounting bracket. Transfer
factory hose clamp by snapping into hole and slot – clamp hose.
27. Disconnect leak detection pump vacuum hose at white plastic
hard line. Pull hose through heat-shrink sheathing to remove. Use
heat gun to further shrink sheathing to secure remaining two
hoses.
