MIDI Control of Instrument Channels

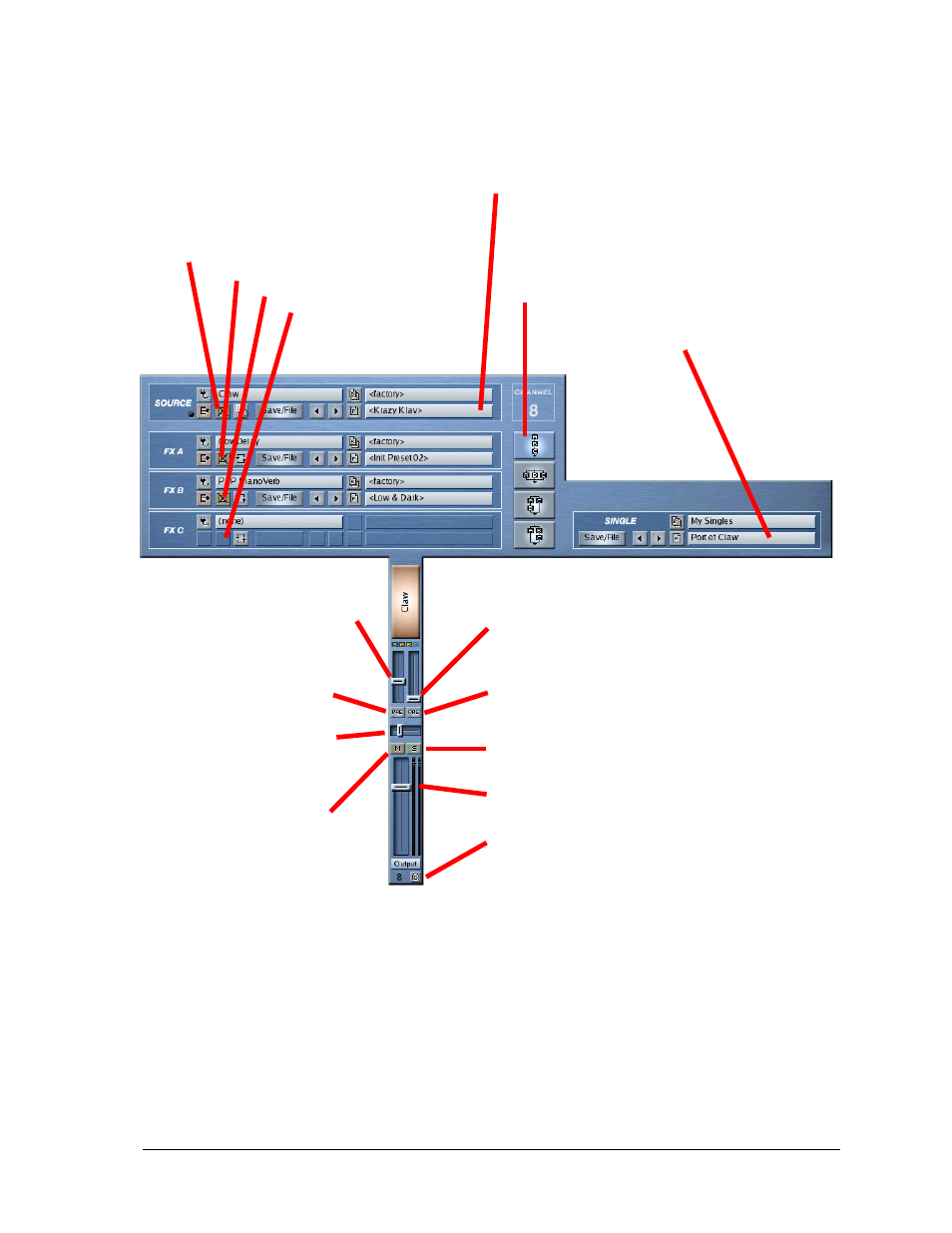

The following figure illustrates how to control each of Receptor’s 16 Instrument channels via MIDI controller
messages.
To toggle each respective Bypass button, send the
indicated MIDI CC on the INST CH
(0-63 = not bypassed, 64-127 = bypassed)
• SOURCE Bypass: MIDI CC 102
• FX A Bypass: MIDI CC 103
• FX B Bypass: MIDI CC 104
• FX C Bypass: MIDI CC 105
To select SOURCE programs, send:
MSB (CC00) + LSB (CC32) + PGM#
on the INST CH
To select a routing, send MIDI CC 106
as follows:
0 - 31 = A > B > C
32 - 63 = A | B | C
64 - 95 = A | B > C
96 - 127 = A > B | C
To select SINGLE programs, send:
MSB (CC00) = 1 + LSB (CC32) + PGM#
on the INST CH
MIDI CC 12 (0 - 127) on the INST CH
controls the SEND 1 Level
MIDI CC 107 on the INST CH
toggles the Send 1 Pre/Post button
(0 - 63 = post, 64 - 127 = pre)
MIDI CC 10 or MIDI CC 8 on the
INST CH controls the balance
(0 - 127, with 64 = center)
MIDI CC 109 on the INST CH
toggles the Mute
(0-63 = not muted, 64-127 = muted)
MIDI CC 13 (0 - 127) on the INST CH
controls the SEND 2 Level
MIDI CC 108 on the INST CH
toggles the Send 2 Pre/Post button
(0 - 63 = post, 64 - 127 = pre)
MIDI CC 110 on the INST CH
toggles the Solo
(0-63 = not soloed, 64-127 = soloed)
MIDI CC 7 (0 - 127) on the INST CH
controls the volume
MIDI CC 116 on the INST CH
toggles the channel bypass
(0-63 = not bypassed, 64-127 = bypassed)
