Heli-Max HMXE0250 - Manual (Page 43)

Stock # Description Contents
HMXE4462 ....Plastic Links .................................See Below
HMXE4469 ....Stainless Ball 3mm Short .............206 x2pcs
HMXE4704 ....Antenna Tube .................................205 x1pc
HMXE7289 ....Thrust Bearing ................................19 x2pcs
HMXE7438 ....Canopy Screws & Hardware .....................x1
Stock # Description Contents
HMXE7439 ....Canopy ...........................................204 x1pc
HMXE7440 ....Clear Windshield ............................202 x1pc
HMXE7510 ....Decal .....................................................x1pc
HMXE7811 ....Pushrod Set .......................................x14pcs
43
204
159
202
A – S ee sa w x 2
25mm
B – Pitch Control x 2
102mm
C – W as ho u t x 2
42mm
D – Bellcr a nk s x 2
51mm
Left/Right Cyclic
Fore/Aft Cyclic
Throttle
T a il Rotor
10.5mm
10.5mm
13mm
17.5mm
G – Throttle & Collective x 2
90mm
F – Fore/Aft Cyclic x 1
12 8 mm
E – Left/Right x 2
14 8 mm

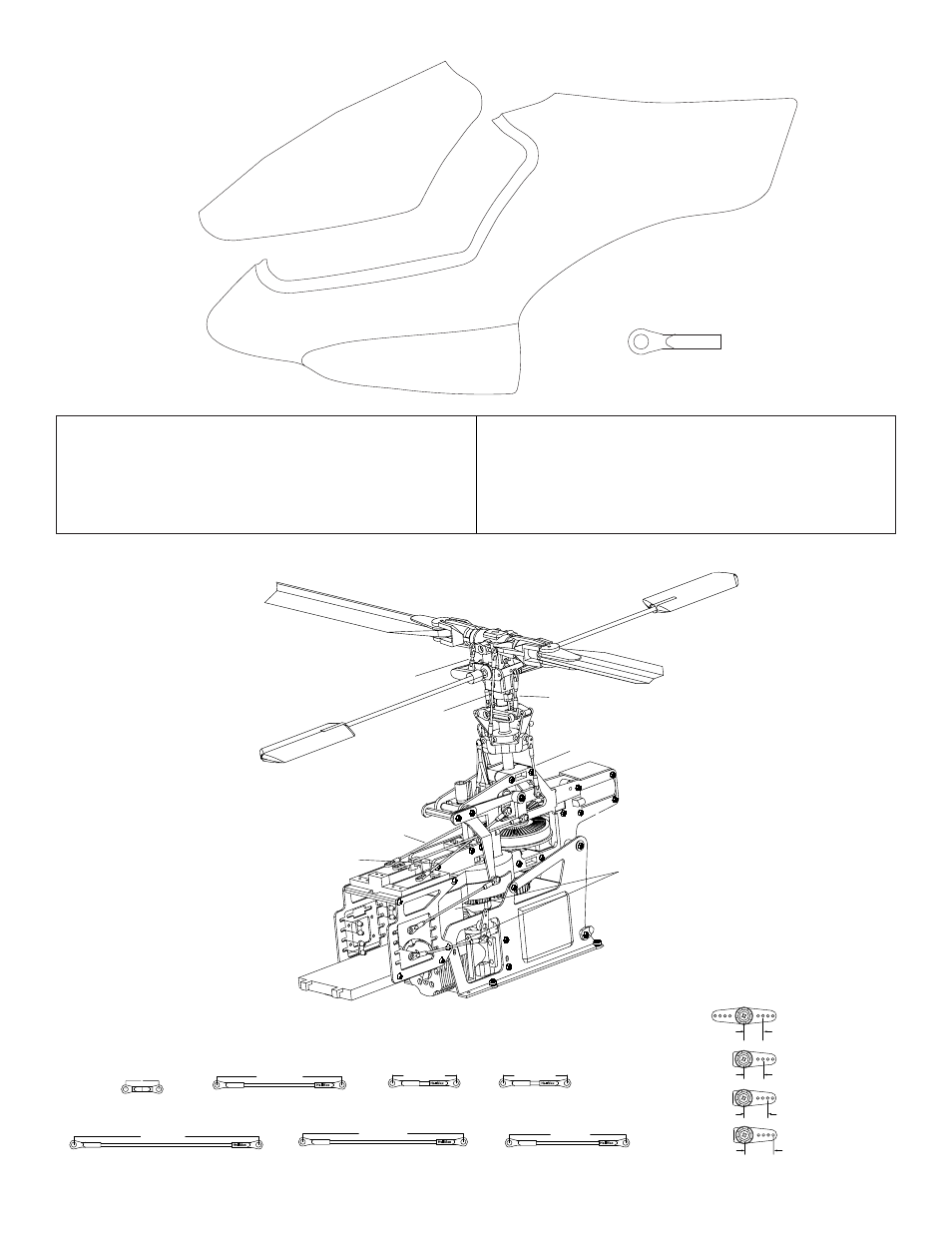

LINKAGES AND LENGTHS
B
A
C
D
G
E
F
SERVO ARM LENGTHS
