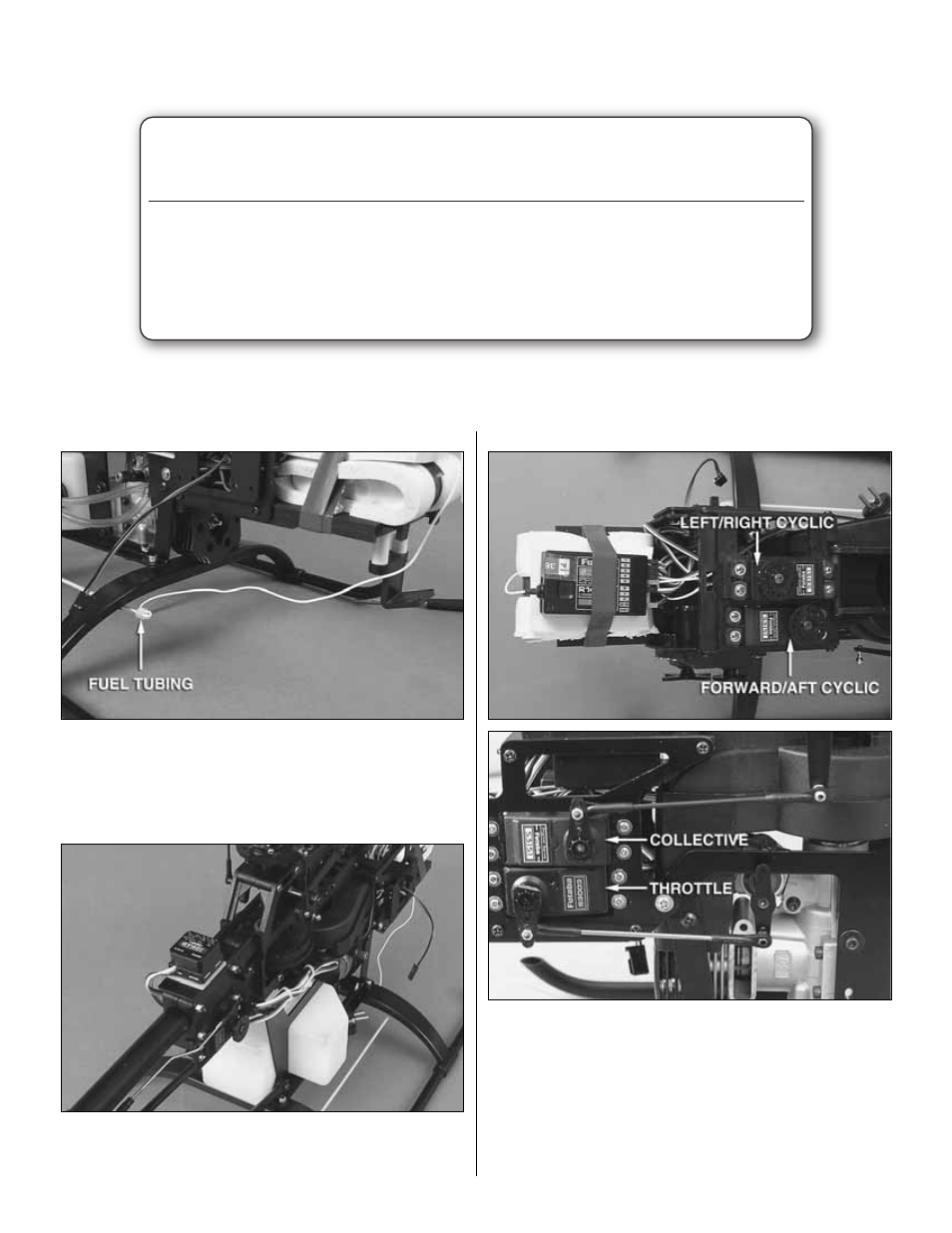

RECEIVER ANTENNA
❏
1. Slide the antenna tube into the mounts on the bottom of
the landing gear. Cut two pieces of fuel tubing 1/4" [6.4mm]
long and slide onto the tube in the front and back to capture
it. Slide the receiver antenna through the tube. Use a rubber
band to attach the antenna to the horizontal fin.
❏
2. Following the manufacturer’s instructions, install your
gyro as shown. Use zip ties or Velcro ® to bundle the excess
wire and prevent it from reaching the gears.
CONNECTING THE SERVOS TO THE RECEIVER
❏
Using the table above, plug the servos into the appropriate
channels on the receiver.
LEFT / RIGHT FOR/AFT
RECEIVER TYPE CYCLIC CYCLIC TAIL ROTOR GYRO GAIN COLLECTIVE THROTTLE
F u t aba PPM / FM CH 1 CH 2 CH 4 CH 5 CH 6 CH 3
F u t aba PCM 1024 CH 1 CH 2 CH 4 CH 5 CH 6 CH 3
F u t aba PCM 204 8 G 3 CH 4 CH 5 CH 2 CH 3 CH 6 CH 1
Hitec CH 1 CH 2 CH 4 CH 5 CH 6 CH 3
JR CH 2 CH 3 CH 4 CH 5 CH 6 CH 1
Airtronic s CH 2 CH 1 CH 4 CH 5 CH 6 CH 3
M u ltiplex CH 1 CH 2 CH 3 CH 6 CH 4 CH 5
RECEIVER CHANNEL ASSIGNMENTS
