Heli-Max HMXE0250 User Manual

Page 22

❏

Futaba T7CH: Select the [GYRO] menu. Enable the

function and set the switch to [SW-E] (Flight Condition Switch).
Set all positions to [A 60

] which is AVCS (Heading Hold) and

gain.

❏

Futaba T9CH: Select the [GYRO] menu. Enable the

function and set the switch to [SW-E] (Flight Condition Switch).
Set all positions to [A 60

] which is AVCS (Heading Hold) and

gain.

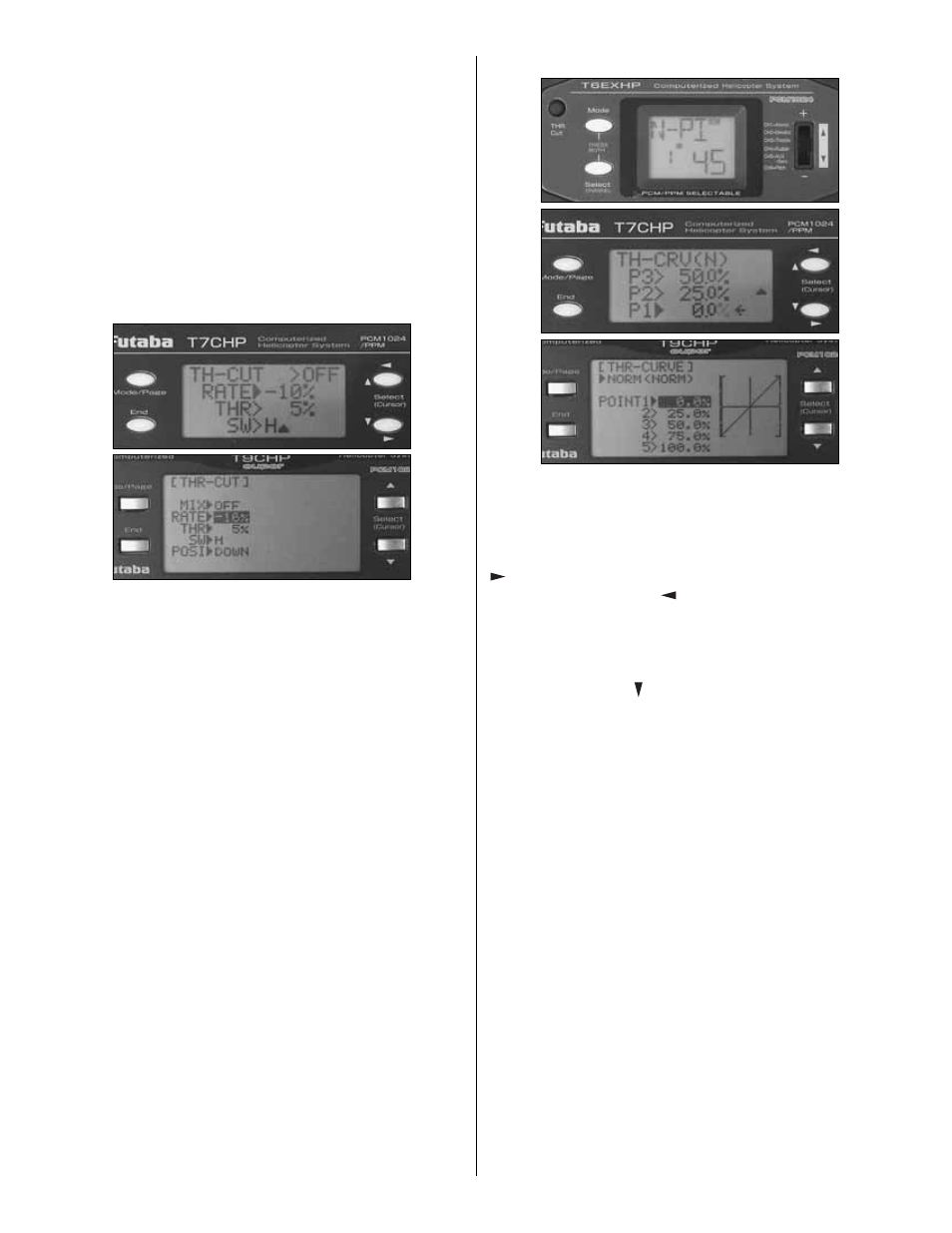

THROTTLE CUT

7CH

9CH

❏

Futaba T7CH: Select the [TH-CUT] menu. Enable the

function and set the switch to [SW-H], using the following
settings: [RATE –10

] — [THR> 5

]

❏

Futaba T9CH: Select the [TH-CUT] menu. Enable the

function and set the switch to [SW-H], using the following
settings: [RATE–10

] — [THR>5

] — [POSI->DOWN]

HOVER AND THROTTLE TRIMS
Since the hover and throttle trims operate only in normal
flight mode, it’s best to disable them and make changes with
mechanical adjustments.

HI-LO PITCH TRIMS
Set the “CONTROL” to null on both HI and LO pitch trims.

THROTTLE CURVE

6EXH

7CH

9CH

❏

Futaba T6EXH: Select the [N-TH] menu. Set Point #1 to 0

Press (Select) to move to the next point. Set Point #2 to 25

set Point #3 to 50

, Point #4 to 75

and Point #5 to 100

❏

Futaba T7CH: Select the [TH-CRV(N)] menu. Press the

button until you are editing Point #1. Use the rotary dial

to set it to 0

. Press the

button to move to Point #2 and

set it to 25

. Set Point #3 to 50

, Point #4 to 75

and

Point #5 to 100

❏

Futaba T9CH: Select the [TH-CV/NOR] menu. Set Point

#1 to 0

. Press the

button to move to Point #2 and set

it to 25

. Set Point #3 to 50

, Point #4 to 75

and Point #5

to 100
