33
❏

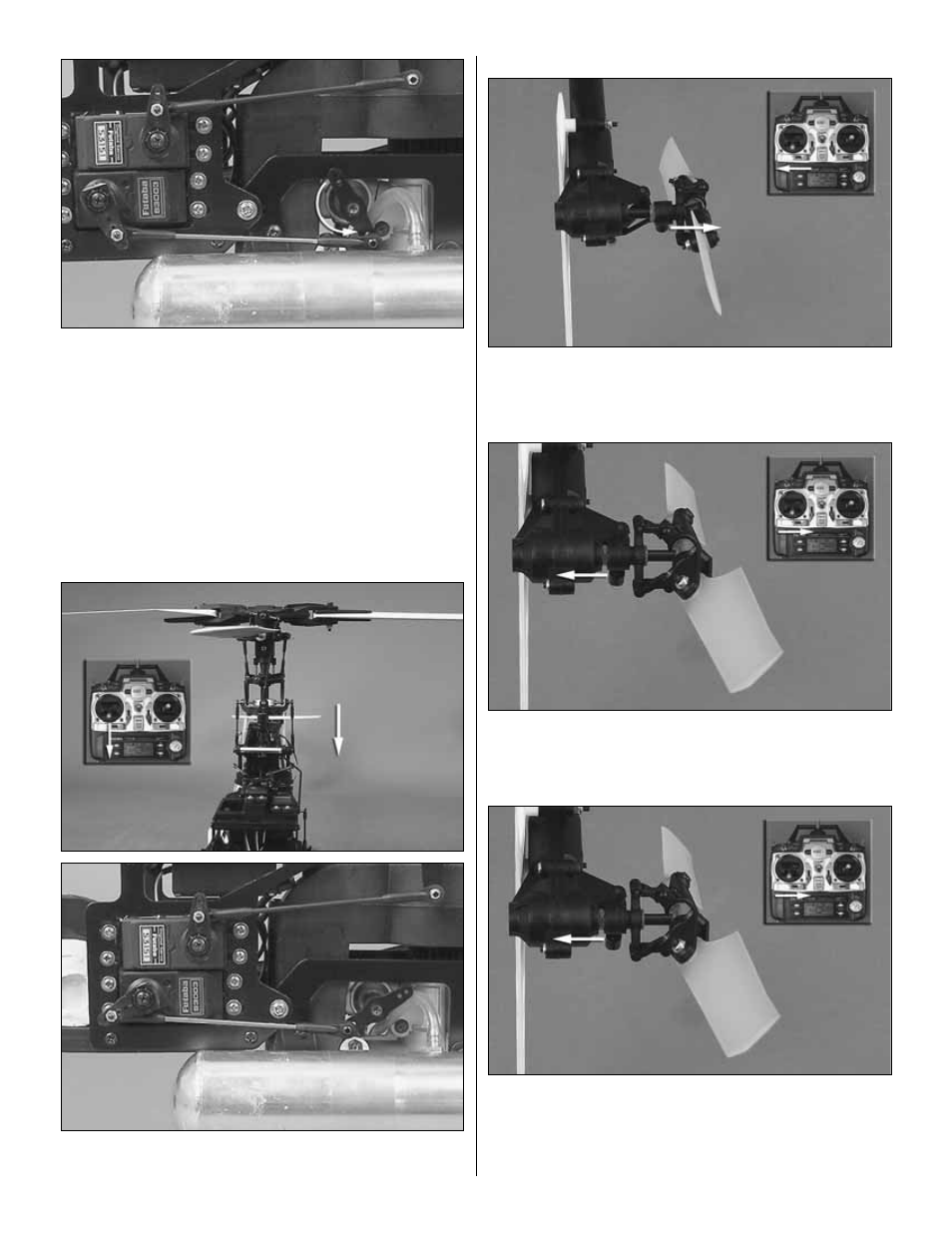

When the left (collective) stick is pushed forward, the
swashplate should move up and the carburetor should open.
Descend Collective
❏
When the left (collective) stick is pulled backward, the
swashplate should move down and the carburetor should close.
Left Tail Rotor
❏
When the left (tail rotor) stick is moved to the left, the tail
pitch slider should move to the right as shown.
Right Tail Rotor
❏
When the left (tail rotor) stick is moved to the right, the tail
pitch slider should move to the left as shown.
Gyro Compensation Direction
❏
Pick the helicopter up by the main shaft and rotate the nose
to the left (counterclockwise). The gyro should compensate by
moving the tail rotor pitch slider to the left (toward the tail
boom). If the pitch slider moves right instead, change the
reversing switch for the servo.
