27

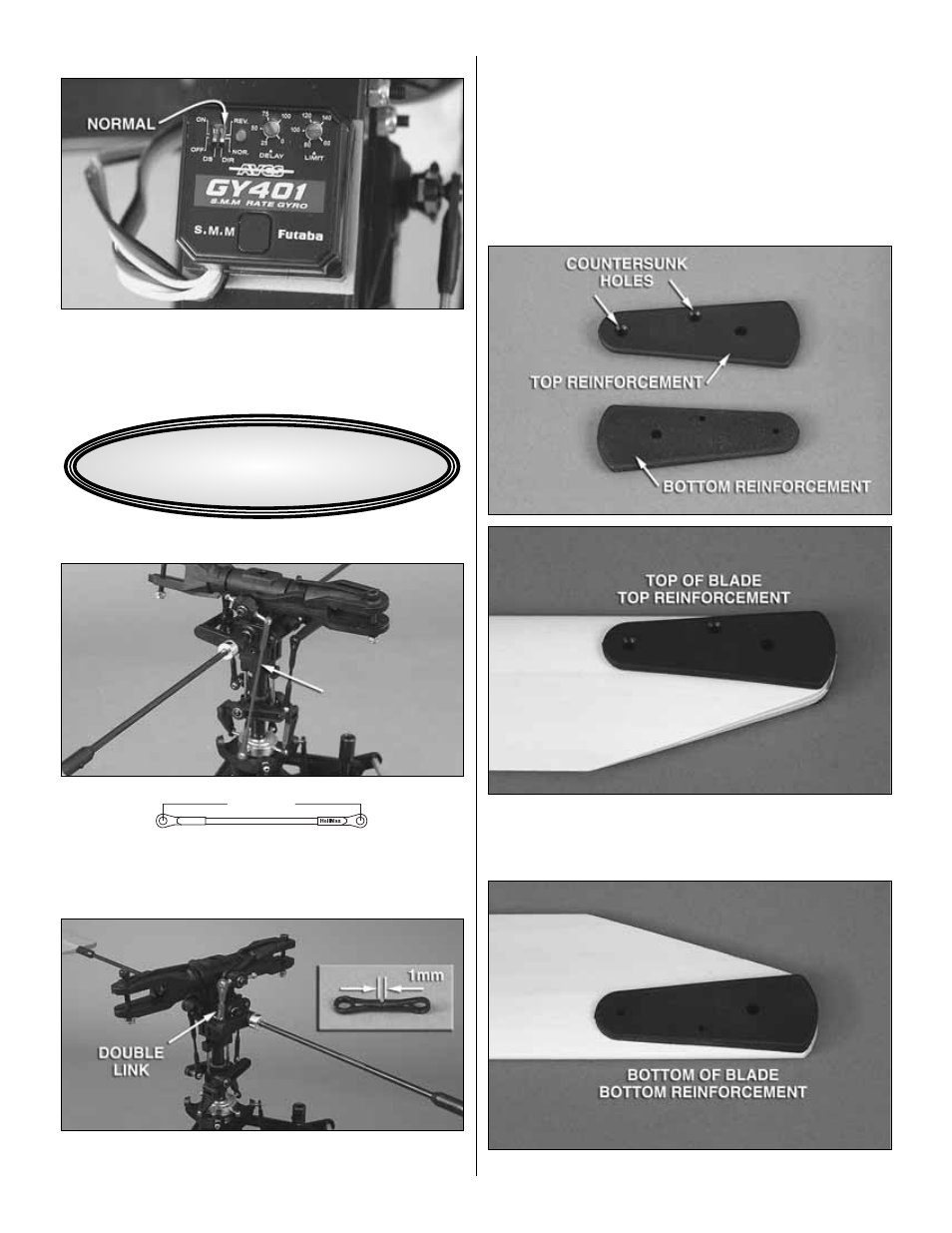

GY401 GYRO SETUP
If you are using a digital servo such as the Futaba S9254 or
S9253, the DS mode switch should be “ON”. Otherwise, set
it to “OFF”. The “DIR” should be set to “NOR” or “OFF”.
INSTALL MAIN ROTOR HEAD LINKAGES
❏
1.Find the two pre-assembled collective linkages and verify
they are 102mm long. Install the linkages as shown above.
❏
2. The short double links should have a 1mm gap between
the ball links as shown above.
MAIN BLADES
Warning: The blade root reinforcements must be glued to
the main blades. Please inspect the blades for damage
before assembling them. Do not exceed 1700 RPM with the
wood blades or failure may occur. Blades are considered
consumable items and should be discarded if there is any
sign of damage.
❏
1. Position the blade as shown above and test fit the top
reinforcement on the blade.
❏
2. Turn over the blade and test fit the bottom reinforcement.
102mm
( S ketch not to s c a le)
HEAD AND LINKAGES
