Heli-Max HMXE0250 User Manual
Page 15
15
❏

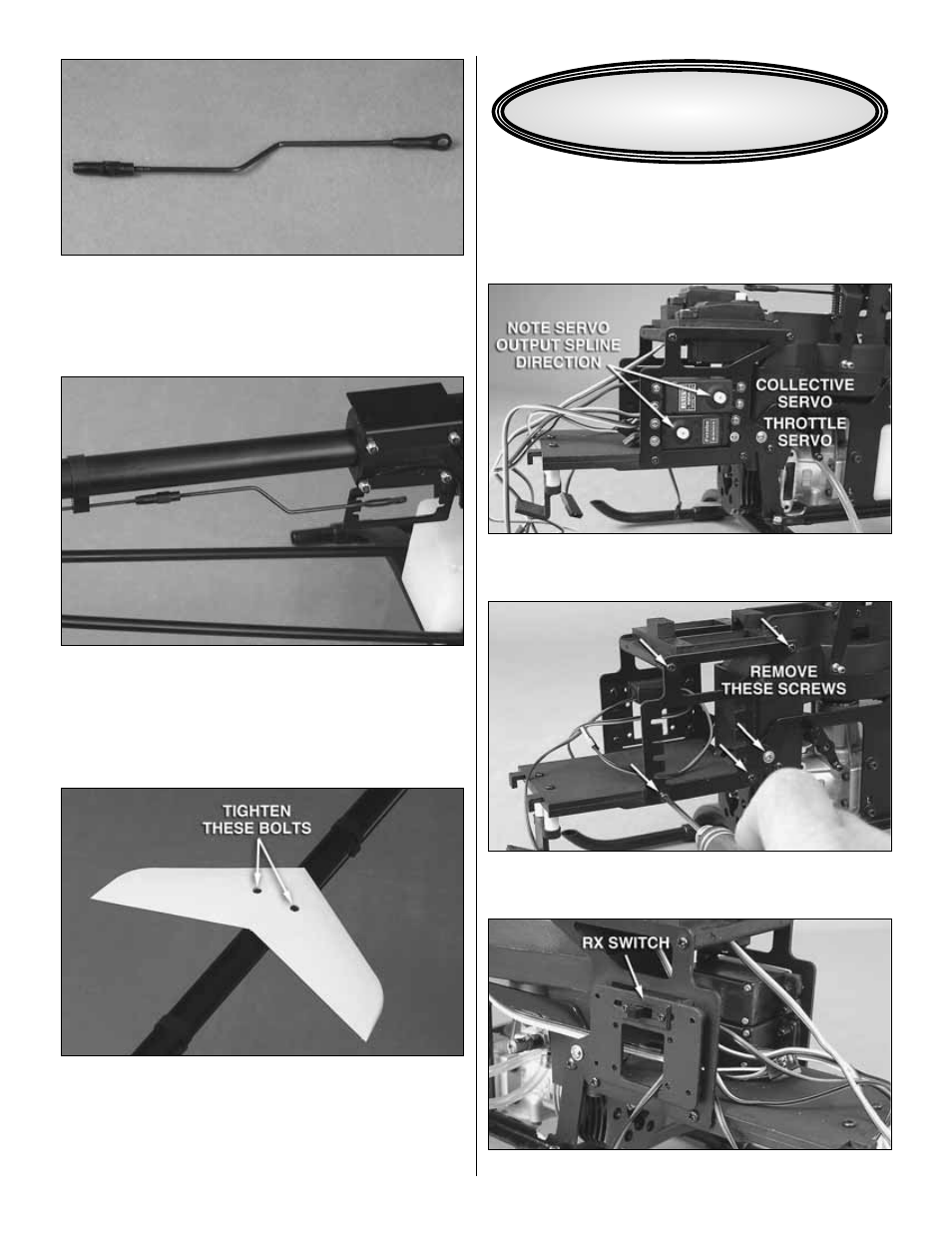

2. Thread the plastic tail rotor pushrod coupler onto the
short pushrod at least 1/4" [6.4mm]. If you find the coupler
difficult to thread on you can use a hobby knife to chamfer
the ball link.
❏
3. Thread the coupler and pushrod onto the tail pushrod
as shown.
HORIZONTAL FIN ALIGNMENT
❏
Align the horizontal fin and tighten the bolts that were left
loose earlier.
SERVOS AND POWER SWITCH
Please follow the manufacturer’s instructions for your servos.
Install the grommets and eyelets and remove the servo arm
screws and servo arms.
❏
1. Use the picture above as a reference when installing
the throttle and collective servos.
❏
2. Remove the left side servo frame by removing the five
screws as shown above.
❏
3. Now is the best time to install the receiver power switch.
EQUIPMENT INSTALLATION
