Heli-Max HMXE0250 - Manual (Page 40)

Stock # Description Contents
HMXE4400 ....Hex Adapter ......................61 x1pc, M x2pcs
HMXE4401 ....Start Shaft ..........62,63,68,143,157,M x2pcs
HMXE4402 ....Starter Shaft Bearing Blocks ....67,I,Z x2pcs,
L x8pcs
HMXE4403 ....Bellcranks L&R Cyclic .........29,28,39 x2pcs,
AA 4pcs
HMXE4404 ....Elevator Arm Set ........56,55,59,60,DD x1pc,
54,K 2pcs
HMXE4452 ....Cooling Fan Shroud ....................50,FF x1pc
HMXE4454 ....Collective Pitch Lever Set ..............41,42,73,
76,77 x1pc, W x4pcs
HMXE4456 ....Main Gear ......................129 x1pc, 70 x2pcs
HMXE4457 ....Upper Side Frames ..................43,145 x1pc,
J x4pcs, K x5pcs, NN x9pcs
HMXE4468 ....10mm Bearing Spacer....................70 x2pcs
Stock # Description Contents
HMXE7293 ....Main Shaft BB (10x19x5mm) ...........46 x1pc
HMXE7295 ....Tail Rotor Coupler Bearings .........103 x2pcs
HMXE7298 ....Ball Bearing (8x19x6) .....................148 x1pc
HMXE7323 ....Counter Drive Gear 55T ..........53,147 x1pcs
HMXE7922 ....Gyro Mount.....................................149 x1pc
HMXE8416 ....Primary Drive Shaft ........161 x1pc, M x2pcs
HMXE8417 ....Metal Drive Gear ..................49,51,153 x1pc
HMXE8418 ....Autorotation Hub & Bearing Set ......72 x1pc,
69,70,71 x2pcs
HMXE8419 ....Main Shaft.....................................48,K x1pc
HMXE8420 ....Mast Stopper ....................................47 x1pc
HMXE8423 ....Rear Rudder Servo Mount.....44,156,K x1pc
HMXE8425 ....Hex Spacer and Rod ...............74,146 x2pcs
HMXE9123 ....Tail Bevel Gear............................111,C x1pc
HMXE9124 ....Tail Drive Primary Shaft...........112,139 x1pc
40
C
69
71
72
M
49
161
4 3
NN
41
54
27
55
60
42
27
DD
56
59
54
J
10 3
1 3 9
112
27
2 8
J
K
29
149
145
C
K
4 8
47
BB
77
L
L
L
J
74
74
76 AA
3 9
H
105
K
K
AA
27
WW
52
129
6 8
14 3
M
61
146
146
14 8
P1
44
142
40
V
NN
V
6 3
157
70
50
145
7 3
156
NN
156
46
H
H
111
C
40
70
5 3
15 3
147
M
NN
51
69
67
I
Z
M
M
64
62

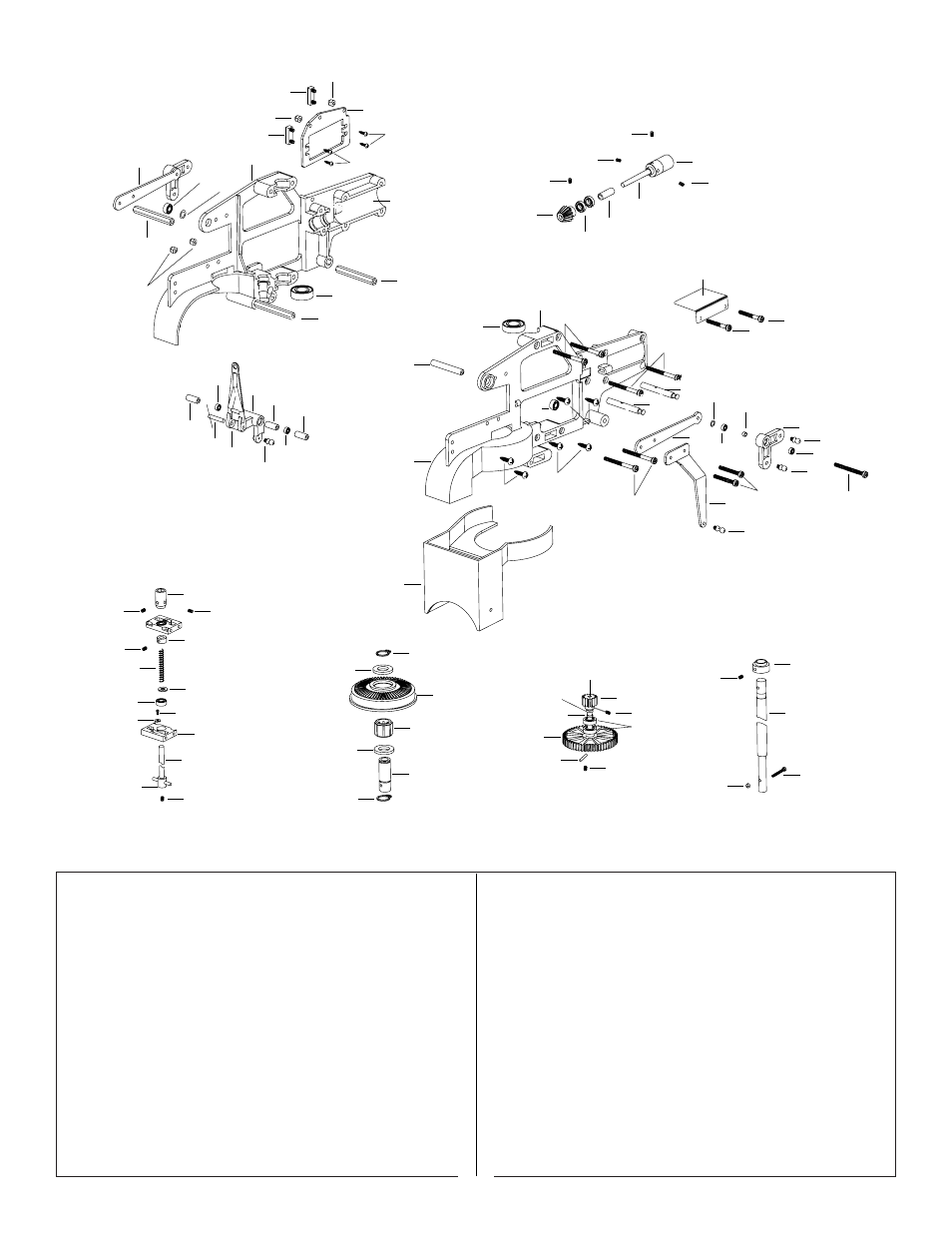

START SHAFT
ASSEMBLY
MAIN GEAR
ASSEMBLY
COUNTER GEAR
MAIN SHAFT
LEFT MAIN FRAME
RIGHT MAIN FRAME
ELEVATOR ARM ASSEMBLY
TAIL DRIVE SHAFT
