3:9 Cypher signal flow

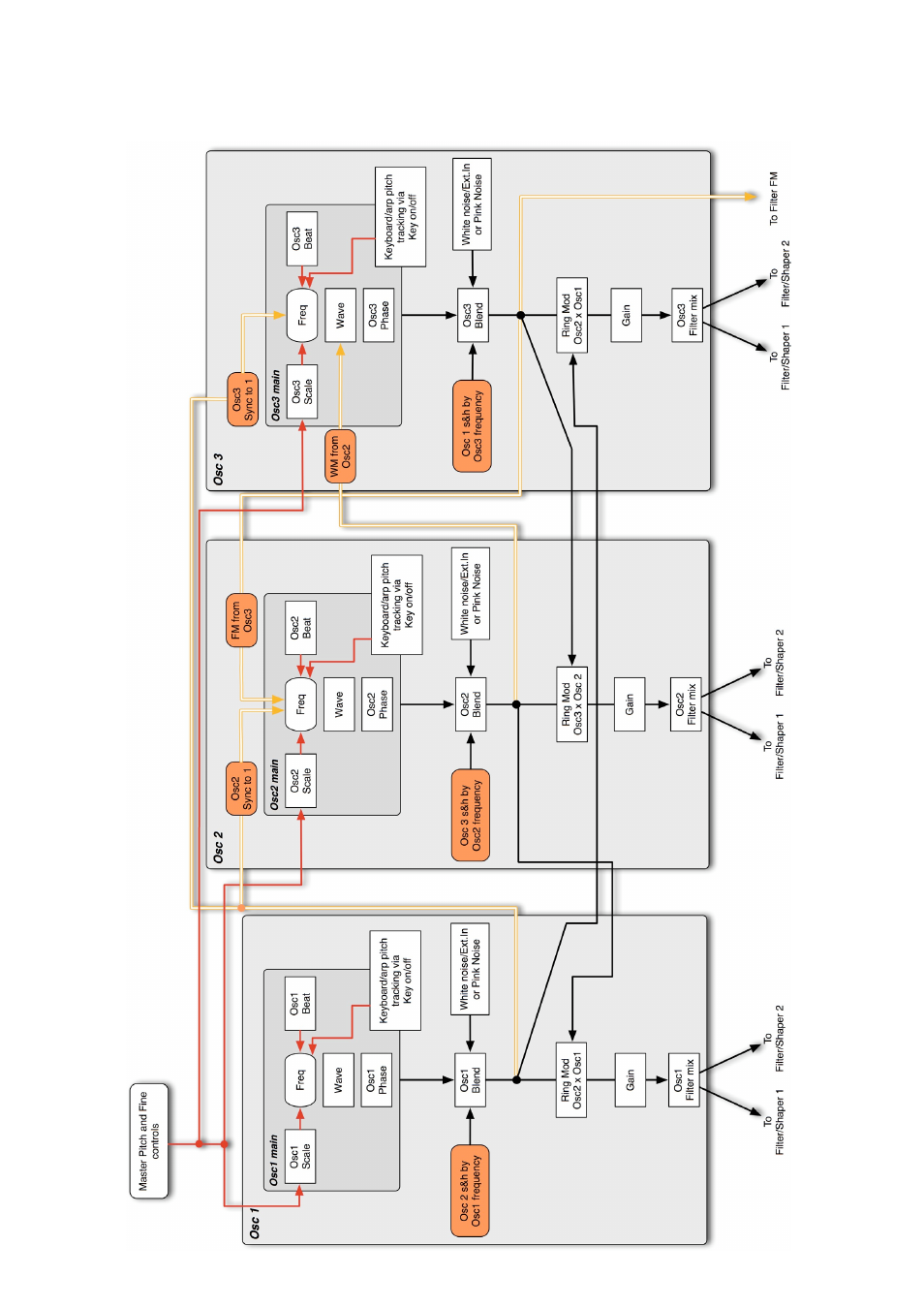

The following signal flow diagrams represent the Osc section and the Shaper-Filter/Amp sections of a single Cypher voice.
Only direct modulation is shown – there are many further possibilities when using the TransMod system.
Osc section
