C-PRO NANO AND MICRO NAV APPLICATION MANUAL
Page 11
2.6 C-PRO MICRO electric connections

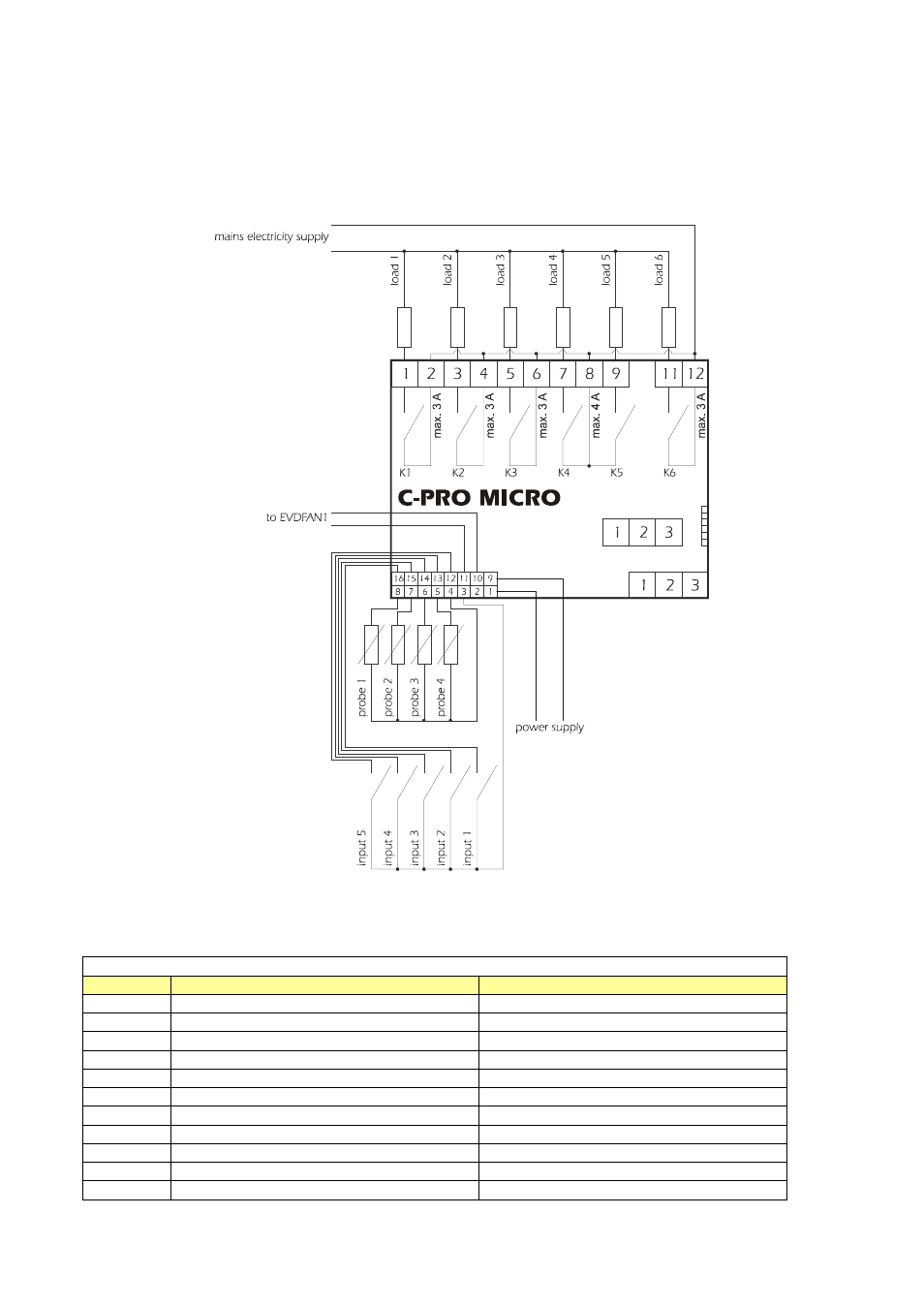

Below find a representation of the connection layout of the C-PRO MICRO controller with tables
relative to the meaning of the inputs and outputs.
C-PRO MICRO connections
Connector 1: Connection for the relay outputs
Conn. Code Description
C1-1 DO1 Relay n.1 normally open contact
C1-2 COMMON DO1 Common relay n.1
C1-3 DO2 Relay n.2 normally open contact
C1-4 COMMON DO2 Common relay n.2
C1-5 DO3 Relay n.3 normally open contact
C1-6 COMMON DO3 Common relay n.3
C1-7 DO4 Relay n.4 normally open contact
C1-8 COMMON DO4, DO5 Common relay n.4,5
C1-9 DO5 Relay n.5 normally open contact
C1-11 DO6 Relay n.6 normally open contact
C1-12 COMMON DO6 Common relay n.6
