EVCO S.p.A.
EVSX815 | Installer manual ver. 1.3 | Code 144XS815E134
page 51 of 60
For further information, consult the documentation relative to RICS and EVUSBREC01.
13.3
EVPROG01 connection kit
13.3.1
Introduction
EVPROG01 is a connection kit.
The kit can be used to connect the device to the Parameters Manager set-up software system.
The kit is made up from the following parts:
-
non-optoisolated RS-232/TTL serial interface EVIF20TRX
-
1256800042 telephone cable
-
1256800079 adapter.
The kit can be used on condition that the device is powered.
13.3.2
Description

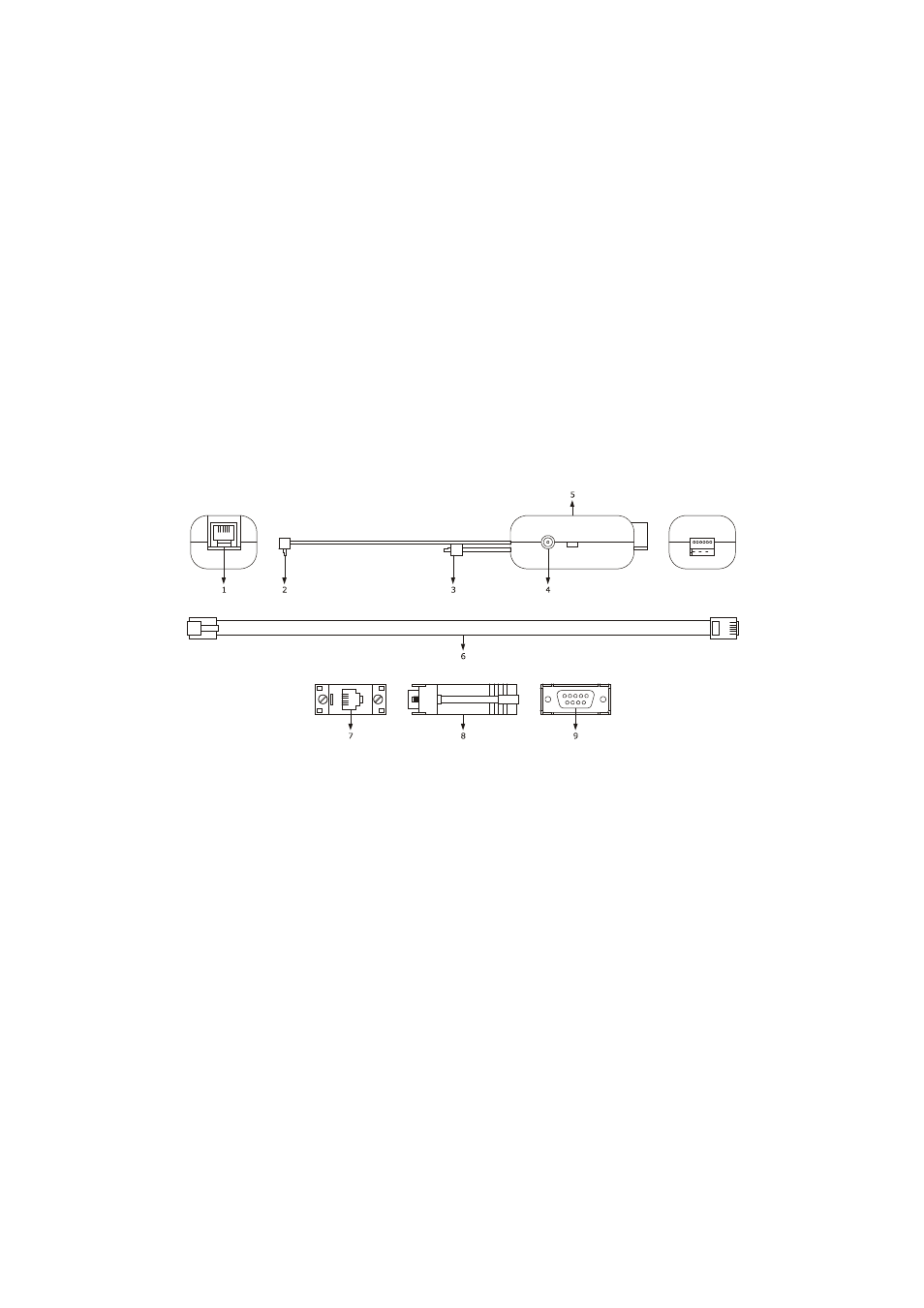

The following drawing illustrates the aspect of EVPROG01.
