3dimensions and installation, 1 user interface dimensions, 2 control module dimensions – EVCO EVXS815P9 Installer manual User Manual
Page 11
EVCO S.p.A.
EVSX815 | Installer manual ver. 1.3 | Code 144XS815E134
page 11 of 60
3
DIMENSIONS AND INSTALLATION
3.1
User interface dimensions

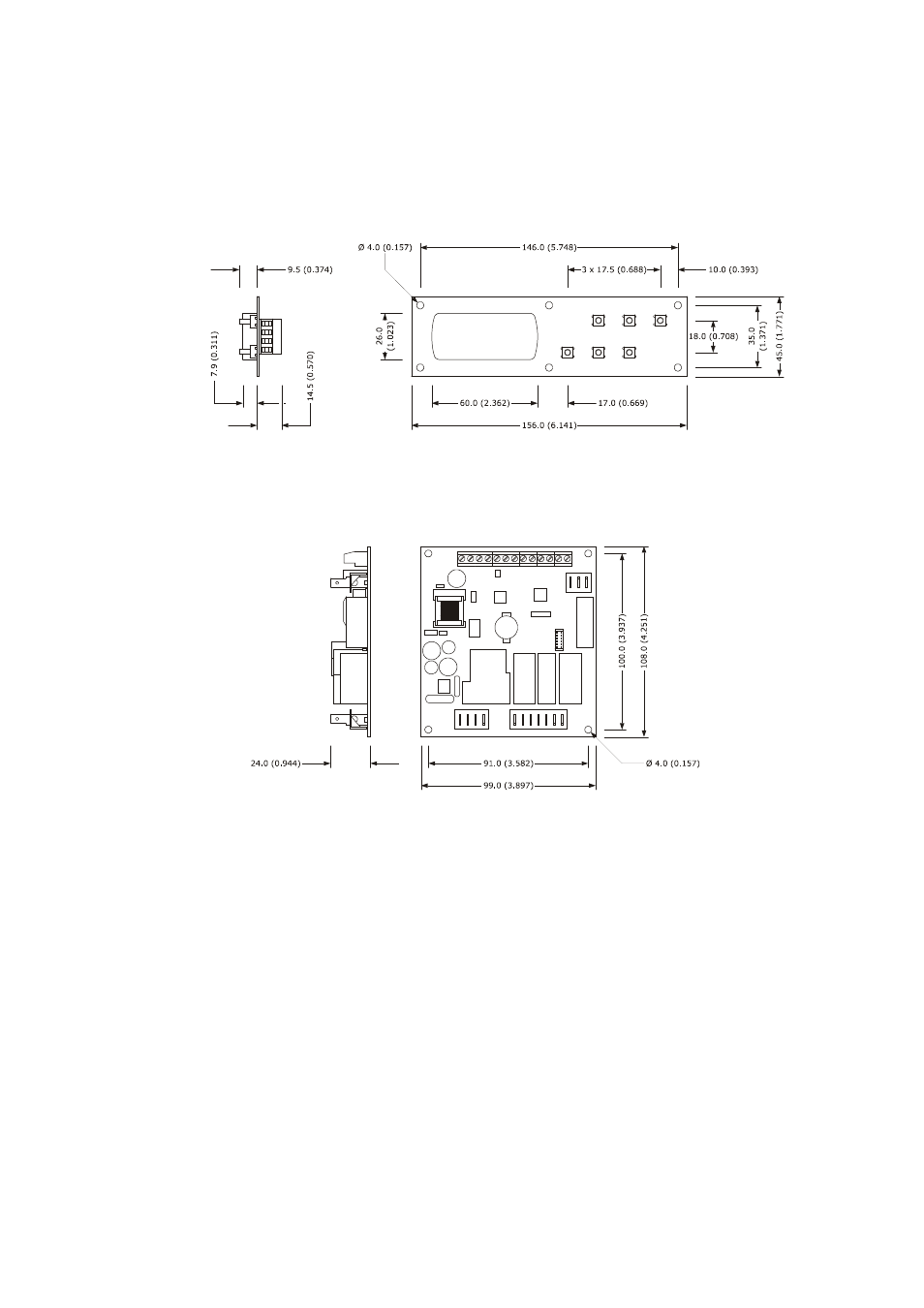

The following drawing illustrates the EVXS815 user interface dimensions; these are expressed in mm (in).
3.2
Control module dimensions
The following drawing illustrates the EVXS815 control module dimensions; these are expressed in mm (in).
