EVCO S.p.A. EVX 800 range | Installer manual ver. 1.2 | Code 144X800E124
page 60 of 66
13.3.4 Connection to the device
Operate as follows:
1. Insert the EVIF20TRX TTL port inside the device communication port (use the port on the support that seems
easiest to use).
2. Insert one end of the telephone cable 1256800042 into the EVIF20TRX RS-232 port.
3. Insert the other end of the telephone cable 1256800042 into the 1256800079 adapter telephone cable port.
4. Connect the 1256800079 adapter RS-232 port to a Personal Computer COM, in which Parameters Manager is
installed.
For further information, consult the documentation relative to Parameters Manager.
13.4 0041600277 polyester sticker
13.4.1 Introduction
0041600277 is a polyester sticker for EVX802 and EVX812.
The unit can be washed due to the application of the sticker.
13.4.2 Description

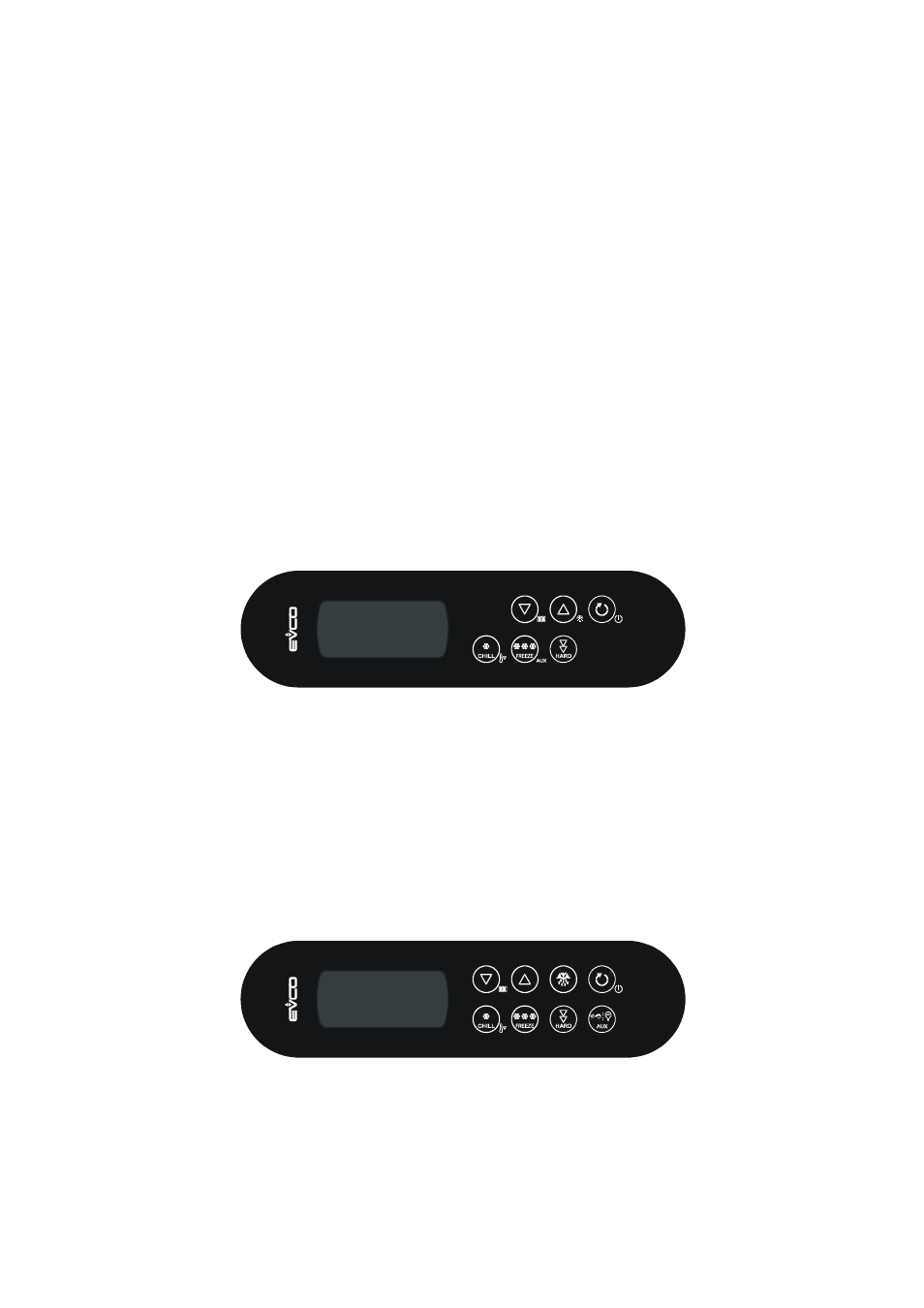

The following drawing illustrates the aspect and dimensions of the 0041600277 sticker.
13.5 0041600278 polyester sticker
13.5.1 Introduction
0041600278 is a polyester sticker for EVX805 and EVX815.
The unit can be washed due to the application of the sticker.
13.5.2 Description
The following drawing illustrates the aspect and dimensions of the 0041600278 sticker.
