3
DIMENSIONS AND INSTALLATION
3.1
Dimensions of EVX802 and EVX812

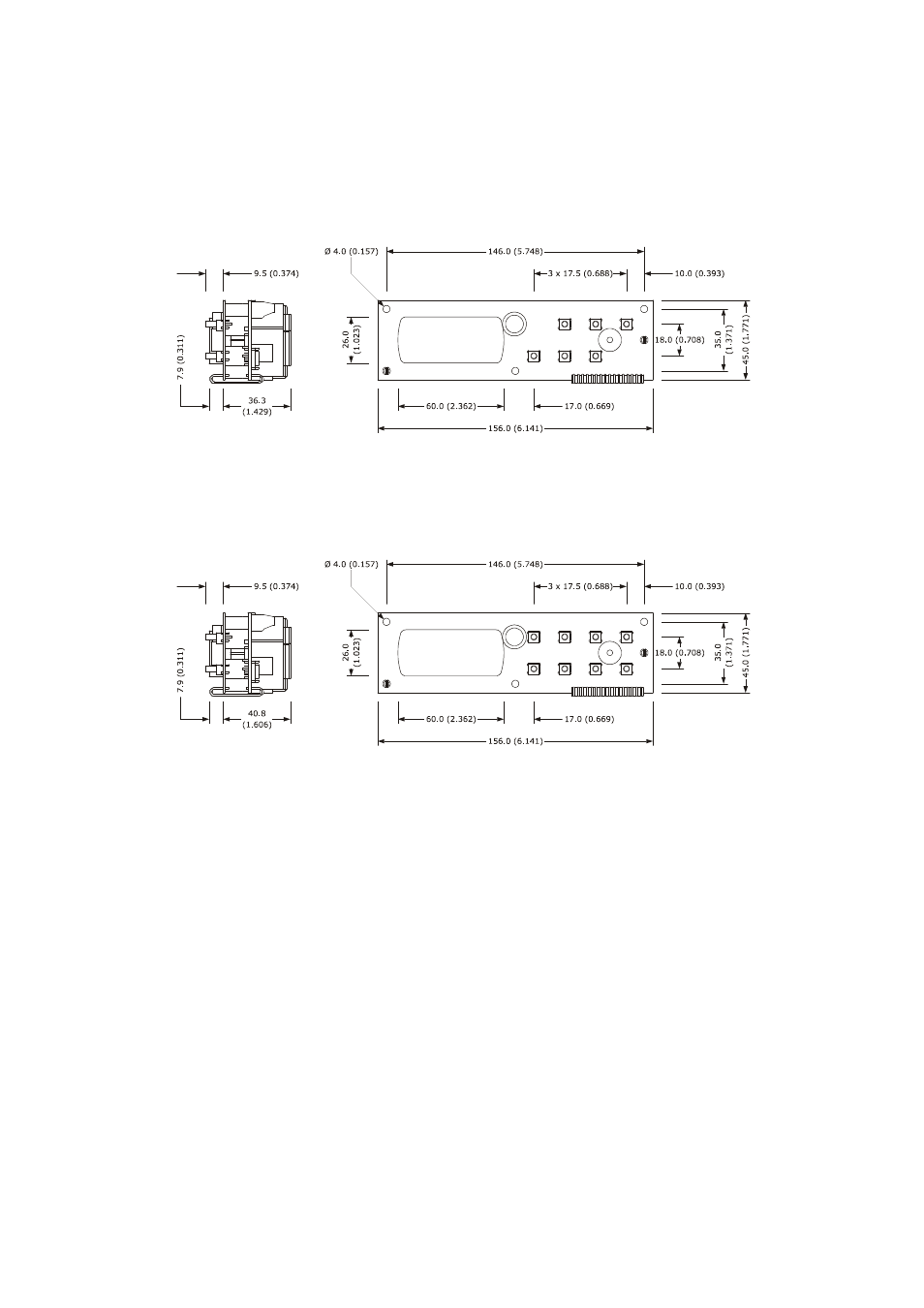

The following drawing illustrates EVX802 and EVX812 dimensions; these are expressed in mm (in).
3.2
Dimensions of EVX805 and EVX815
The following drawing illustrates EVX805 and EVX815 dimensions; these are expressed in mm (in).
