13 ACCESSORIES
13.1 EVKEY programming key
13.1.1 Introduction
EVKEY is a programming key.
The key can be used to upload and download the configuration parameters.
The key can be used as a powered or non-powered device. In the latter case, the EVPS power supplier must also be
used (to be ordered separately).
13.1.2 Description

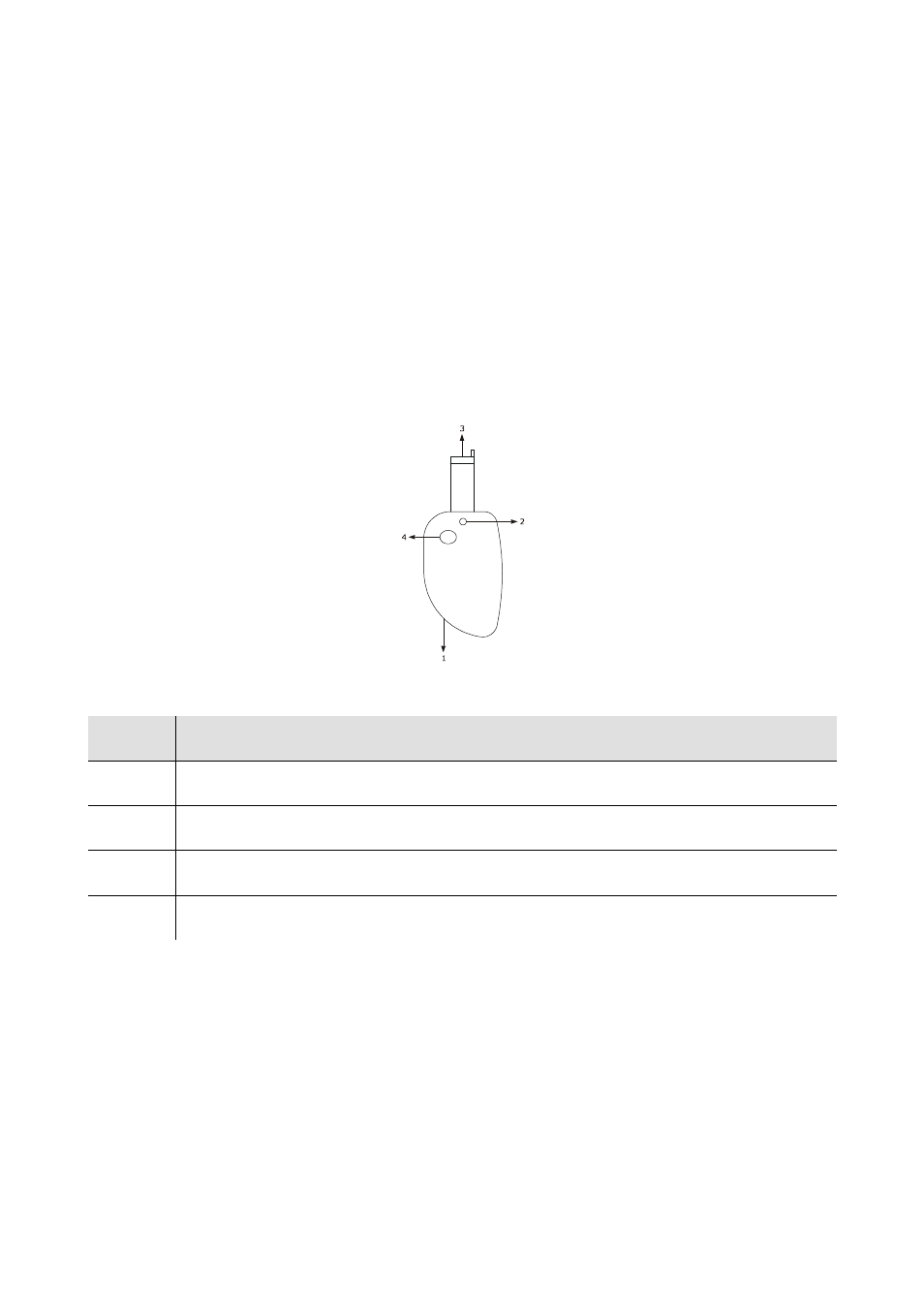

The following drawing illustrates the aspect of the EVKEY.
The following table illustrates the meaning of the EVKEY parts.
Part Meaning
1 connector for EVPS power supplier
2 signal LED
3 micromatch connector
4 programming key
