EVCO S.p.A. EVX 800 range | Installer manual ver. 1.2 | Code 144X800E124
page 15 of 66
4.2 EVX805 and EVX815 electric connection

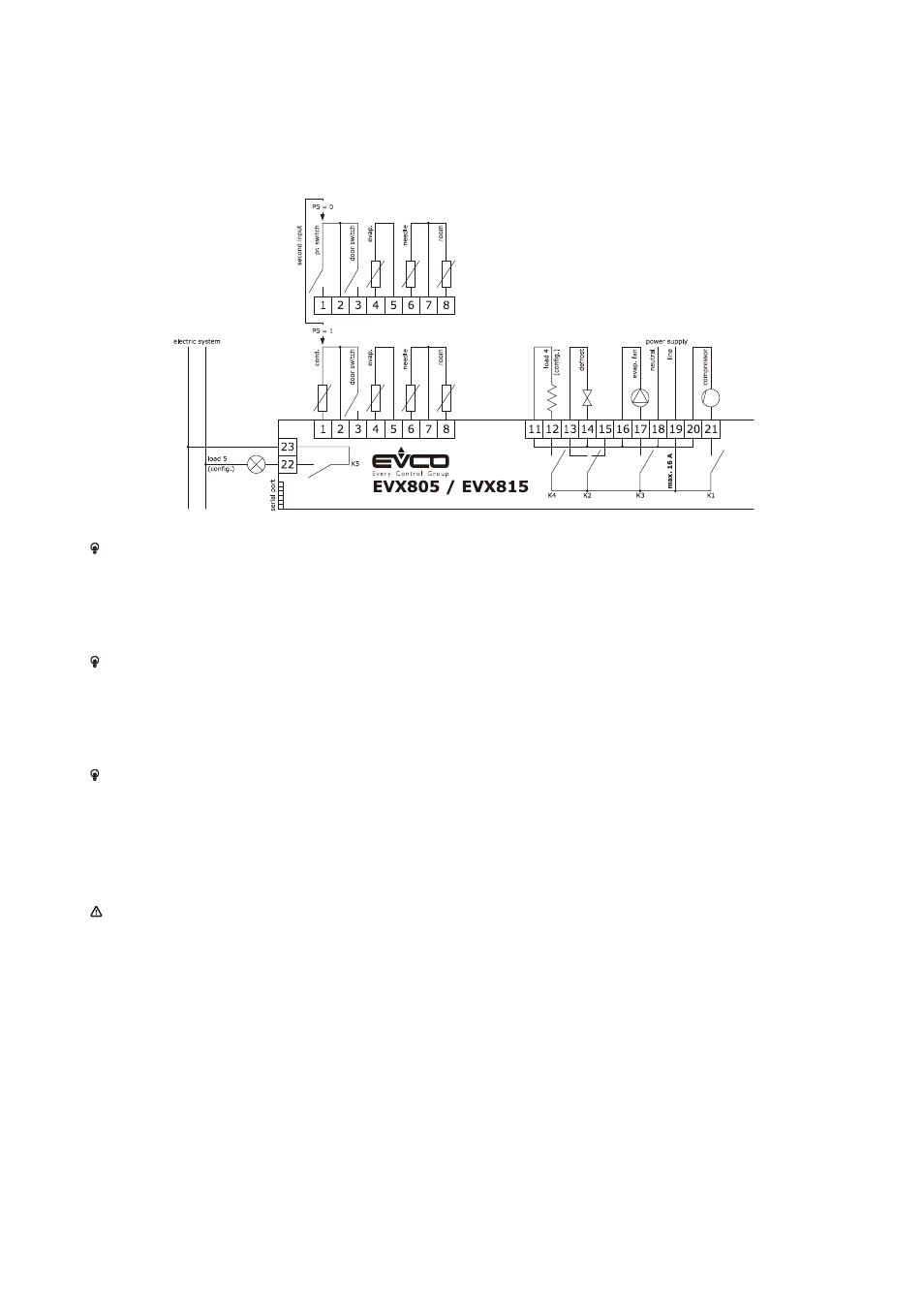

The following drawing illustrates the EVX805 and EVX815 electric connection.
The function of the fourth input depends on parameter 5, as follows:
- high pressure input (digital input, P5 = 0)
- condenser probe (analogue input, P5 = 1, pre-defined setting).
For the settings relative to the parameters, see chapter 9 “CONFIGURATION”.
The utility managed by the K4 output, depends on parameter u1, as follows:
- door resistances (u1 = 0, pre-defined setting)
- condenser fan (u1 = 1).
For the settings relative to the parameters, see chapter 9 “CONFIGURATION”.
The utility managed by the K5 output, depends on parameter u11, as follows:
- cabinet light (u11 = 0, pre-defined setting)
- needle probe heating (u11 = 1)
- UV light (u11 = 2).
For the settings relative to the parameters, see chapter 9 “CONFIGURATION”.
The serial port is for the connection of the controller to the following additional products:
- EVKEY programming key
- Parameters Manager set-up software system
- RICS plants monitoring and surveillance systems
- Device for recording data, for downloading the data recorded (via USB), for uploading and downloading
EVUSBREC01 configuration parameters.
The port must not be used simultaneously with more than one of these products.
